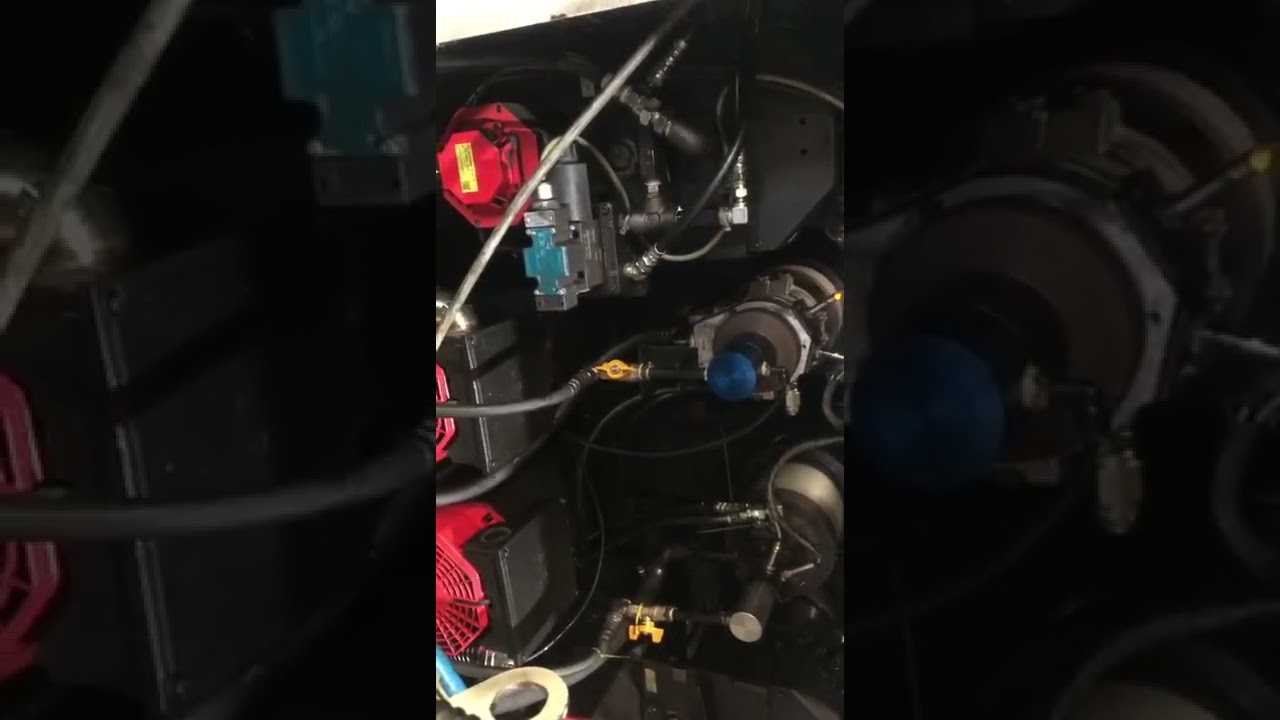

Muratec MW 120 GT.
Year 2012.
Two turrets.
Two heads.
Two motors of 11 kW each.
Head size A2-5.
Two 8-inch plates.
CNC Fanuc 31i.
Two 3-axis gantry robots for automatic loading and unloading of
pieces.
Double wrist per robot.
Digitized programming by means of PLC of gantry robots.
Maximum diameter of part loaded by robots 120 mm.

Maximum piece load per hand 3 Kg.
Two stations for verification and checking of the finished piece.
Control and automatic monitoring of efforts and monitor of
tool consumption.
Rapid movement speed of robots 160, 120 and 35 m/min,
X,Y and Z axes.
Automatic piece turner for second phase entry.
Lubrication with oil and grease of all the axes of the robots.
Minimum part machining time 18 seconds.
Loading and unloading time of pieces 7 seconds.
Remote steering wheel for robots.
Correct support and flatness verification sensors in second
operation.
Part load retry function due to poor support.
Cleaning of both plates by means of air and or taladrina.
Air and coolant outlet through both spindles.
Head speed 4,500 rpm.
X and Z axes rapid movement speed 24 m/min.
Turret change indexing time 0.2 seconds.

Rear hinge type chip extractor.

Open and close pedal for both plates.
Auto power off.
Electric transformer.
Machine currently in operation.
Weight 4,500 Kg.
Immediate delivery time except immediate sale.
