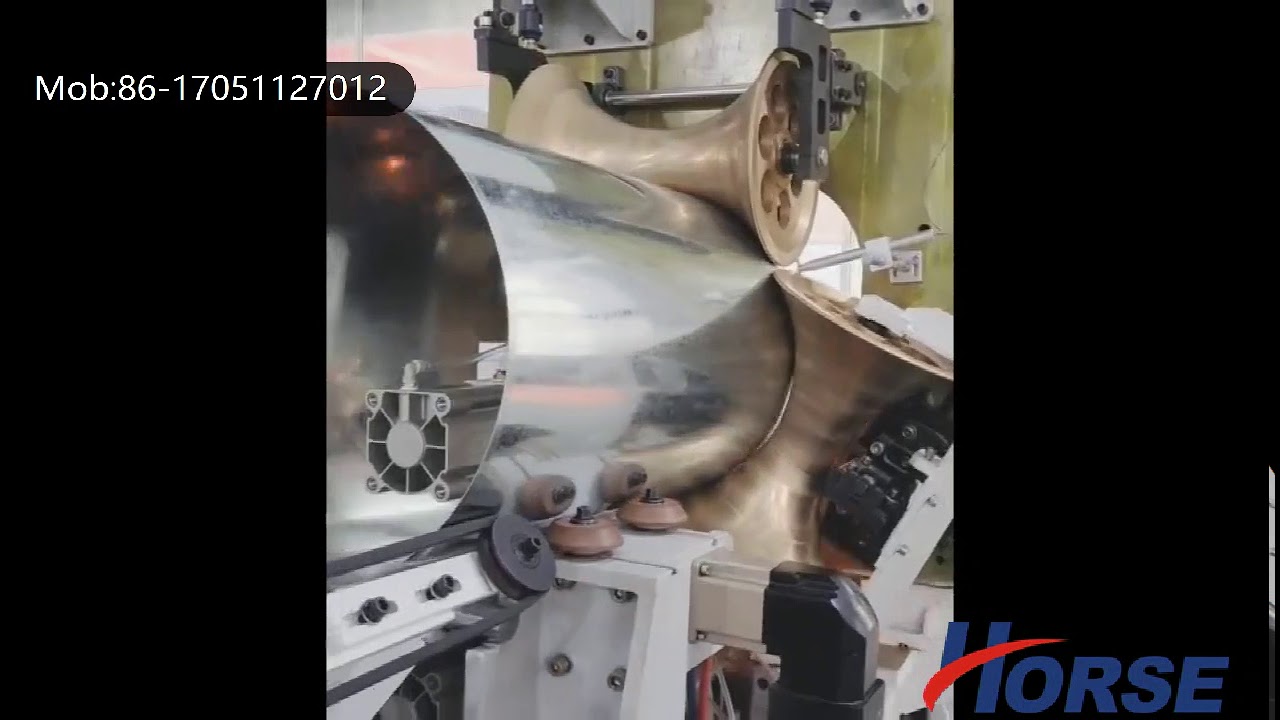

Скачать или смотреть Three Phase Seam Welder for Stainless Steel Drum

Three Phase Seam Welder,Resistance Welder,Capacitor Discharge Welder,
Welder Automation Integration,,pls check the details https://www.trintfar-welder.com/produ...

The Principle of High Speed Drum Welder:
It belongs to the scope of resistance welding: When the work pieces are assembled, and the pressure is applied onto it through the electrodes, and electric current flows through the overlapping contact surfaces and adjacent areas of the steel plates to generate resistance heat, thereby forming a series of overlapping nuggets to obtain airtightness Of welds.

The method adopted by this Three Phase Welder is rolling welding seam, the electrode is cylindrical roller, the width of it is larger than the overlapped part of the steel plate in order to control the thickness of the joint, and the larger electrode pressure and continuous current are applied during welding.

In order to make assure of the steady quality of weld,The longitudinal seam of the metal barrel and drum with a diameter of 516mm (cone barrel) to 571.5mm can be completed under the control of parameters such as electrode pressure, welding current, welding time, …etc.

The process of this Steel Drum Welder:
manually place the cut sheets on the rolling conveyor frame (also can be connected with the uncoiling leveling and blanking machine), and automatically transport them to the automatic slitting machine. After trimming, the sheets enter the automatic coil Round, no need for spot welding, that is, butt weld seam, take advantage of the red melting state of the steel plate, automatically roll the weld seam, automatically cut the tongue, and automatically discharge the material.

1,Material thickness range: 0.6 to 1.5mm
2,Rated power: 3 x 150KVA and 380V 50Hz
3,Compressed air pressure: 0.6mPa
4,Welding speed: 16m/min
5,Maximum production rate: 720pcs/hour
6,Drum diameter range: φ500～φ571.5 mm
7,Drum length range: 900～1025 mm
8,Cooling water :120 L/min 0.3Mpa ≤23℃±2℃
9,Steel sheet precision: Length ±0.5 mm /diagonal line±1.0 mm
