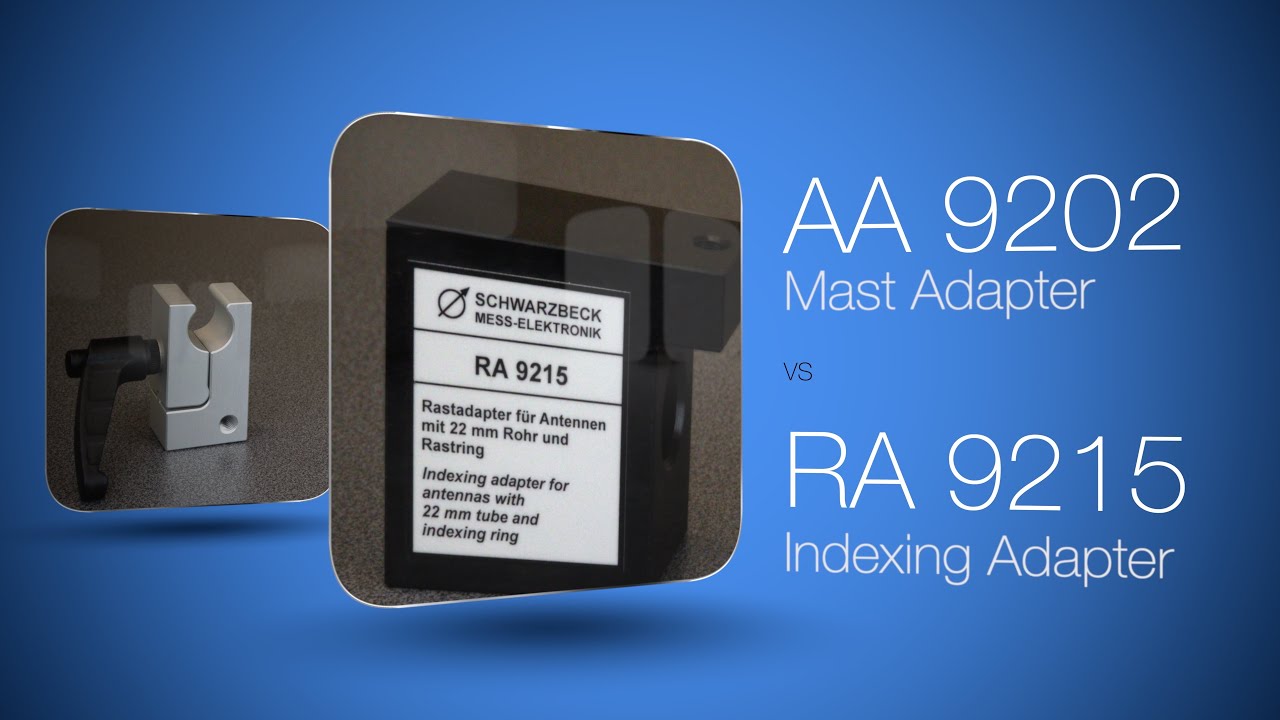

Comparison of mast adapter AA 9202 and indexing adapter RA 9215

Main Application:
Mast adapter AA 9202 and indexing adapter RA 9215 are used together with the antenna mast AM 9144 for mounting of antennas with a 22 mm diameter tube.

AA 9202 Mast Adapter
Key Features:
The polarisation of antennas can be changed continuously by turning the antenna tube inside the adaptor. A robust plastic fixing knob provides a reliable antenna mounting. Another possibility is to use the adaptor with a common camera tripod with 1/4" thread.

Specifications:
Material: Aluminium (Eloxal)
Weight: 225 g
Max Antenna weight: 5 kg
Max torque: 25 Nm
Mounting: 22 mm diameter tube
Mastfoot: AM 9144 M-TILT

RA 9215 Indexing Adapter
Key Features:
Indexing adapter RA 9215 for fast & precise polarisation change.
The antenna can be inserted into RA 9215. The indexing ring of the antenna gets locked into RA 9215. A metal ball which is under spring pressure locks into the sliding track of the indexing ring. Every 90 degrees there is a deeper
hole in the sliding track of the indexing ring. The antenna is held there, with a certain retaining moment. Once set up to exactly horizontal polarization the RA 9215 allows changing to vertical polarisation and back precisely within seconds.

Specifications:
For tube diameter: 22 mm
For diameter of the indexing ring: 35 mm
Dimensions without lever: 80x72x42 mm
Threads on bottom: 1/4'', 3/8''
Weight: Ca. 250 g
