Скачать или смотреть [Materials] EBSD analysis of a real Cu foil surface on a FIB-SEM

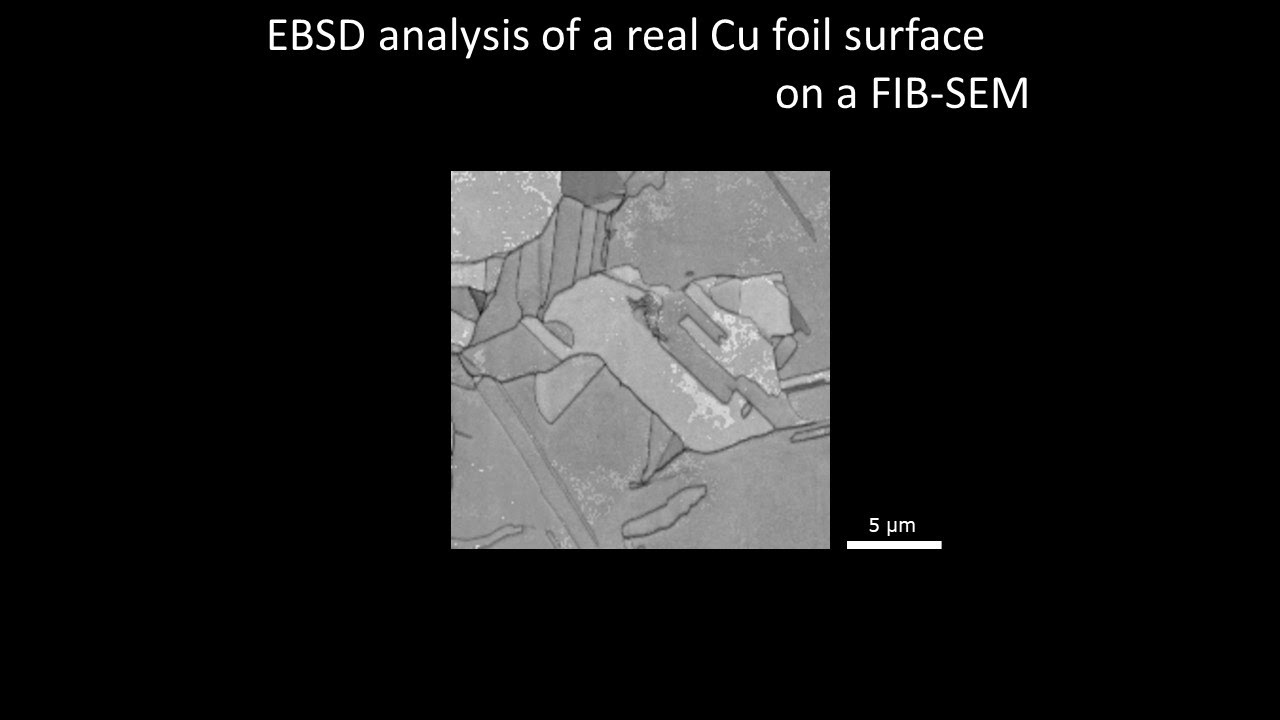

Crystallographic structure of a Cu foil surface was analyzed using a FIB-SEM equipped with EBSD system. Surface irregularity and oxidized layer that hinder the detection of EBSD patterns were removed by FIB and exposed surface was subsequently analyzed by SEM-EBSD without air exposure. The band contrast map clearly visualizes the grain boundaries revealing typical grain size to be 10 µm. IPF maps in each direction indicate their crystal orientations.
#Cu #CrystalOrientation #EBSD #GrainBoundary #FIB #SEM #FIBSEM #electronmicroscopy #ElectronMicroscope

Available instruments for this measurement are :
FIB-SEM
https://www.hitachi-hightech.com/glob...

Further details can be found on our membership website with data library. Looking forward to your joining.
https://biz.hitachi-hightech.com/sina...

About our membership site, see https://www.hitachi-hightech.com/glob...
