Assemble FlowCell in less than an hour with only one tool - a 9/16" wrench.

Learn more about FlowCell: https://www.unex.com/flow-racks/flowc...
Build a FlowCell in minutes: https://flowcell.unex.com/
Download Installation Guide: https://www.unex.com/resources/instal...

A FlowCell modular storage unit starts with a framework of vertical Posts & horizontal Beams (FlowCell Structure) bolted together with 3/8"-16 hardware (included)—only one wrench size (9/16") is required. This base structure, plus SpanTrack carton flow track and several optional features, complete the FlowCell assembly.

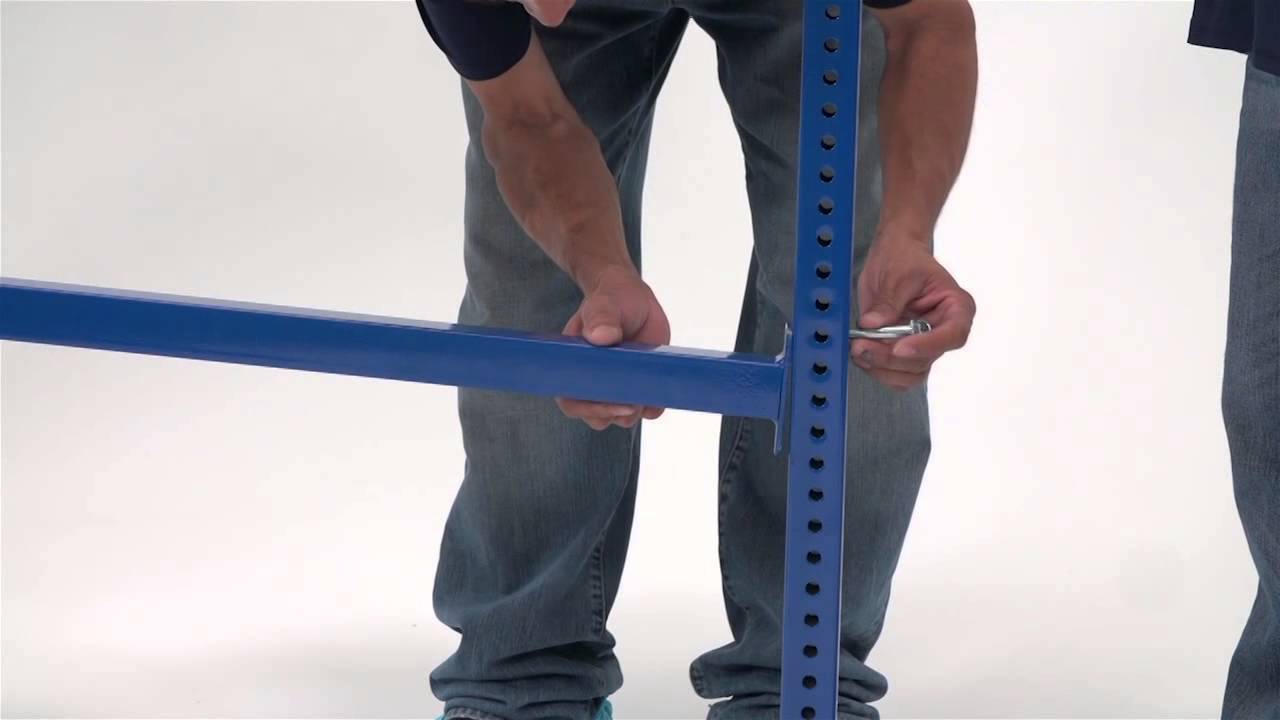

1. Attach side Beams (2) to Posts (2) for each cell side — one high, one low. A FlowCell with a Toolbar will have two longer posts at the front. Note: Ensure footplates are oriented in the same direction. If using rigid casters, align long dimensions of plates in direction cell is to roll. The 3/8"- 16 UNC GRADE hardware used to assemble the FlowCell has a recommended torque of 20 lb-ft.

2. Join the two sides by bolting on front beams at discharge heights at the front of the cell. For a return lane, the front beam would be at load height.

3. Bolt-on rear beams for each level approximately 1" higher per foot than front beams. Recommended pitch is 1 inch for every 1 foot of rack depth.

4. Slip plastic End Caps onto posts.
