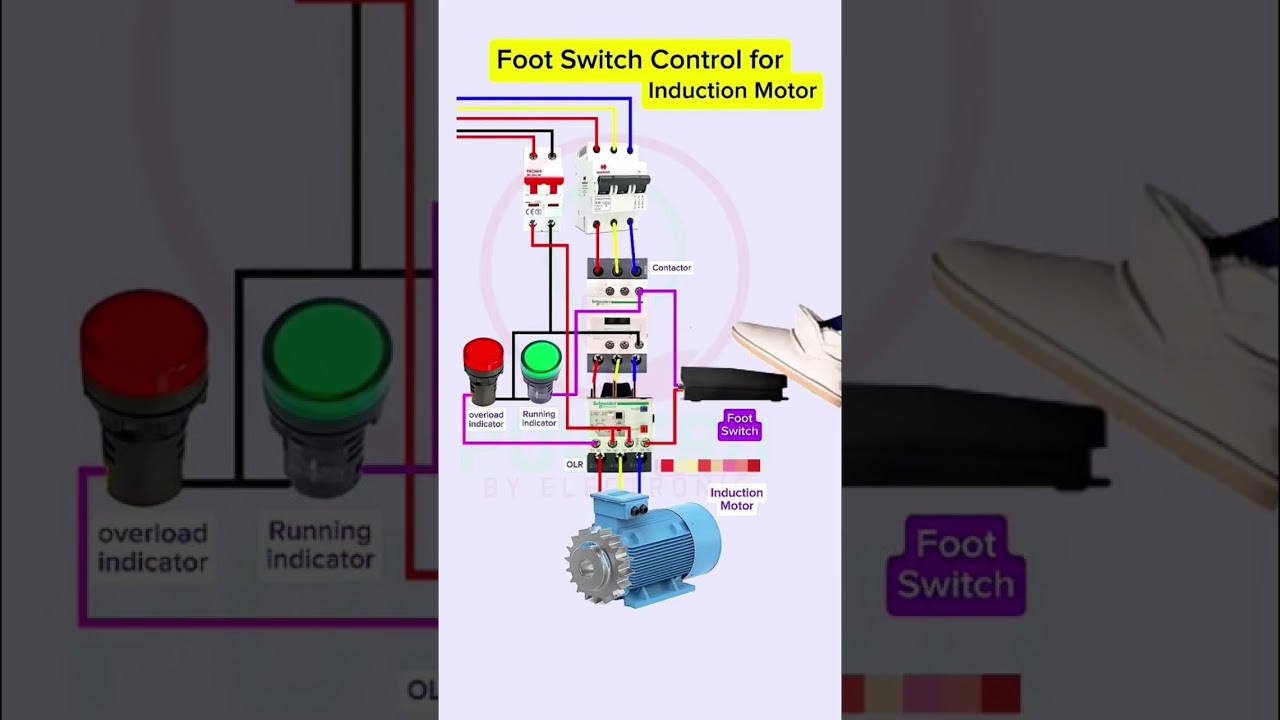

This diagram explains the foot switch control system for an induction motor using MCB, contactor, overload relay (OLR), and indicator lamps.
The foot switch is used to start and stop the induction motor safely without using hands, making it ideal for industrial machines, workshops, and safety-critical applications.
The wiring shows:
Power supply through MCB for protection
Contactor for motor switching
OLR (Overload Relay) for motor protection against overload
Running indicator and overload indicator for status indication
Foot switch connected in the control circuit for easy operation
This circuit is widely used in lathe machines, drilling machines, press machines, conveyor systems, and other industrial equipment where hands-free motor control is required.
