What are the Different Phases of Steel Microstructure? 🔥

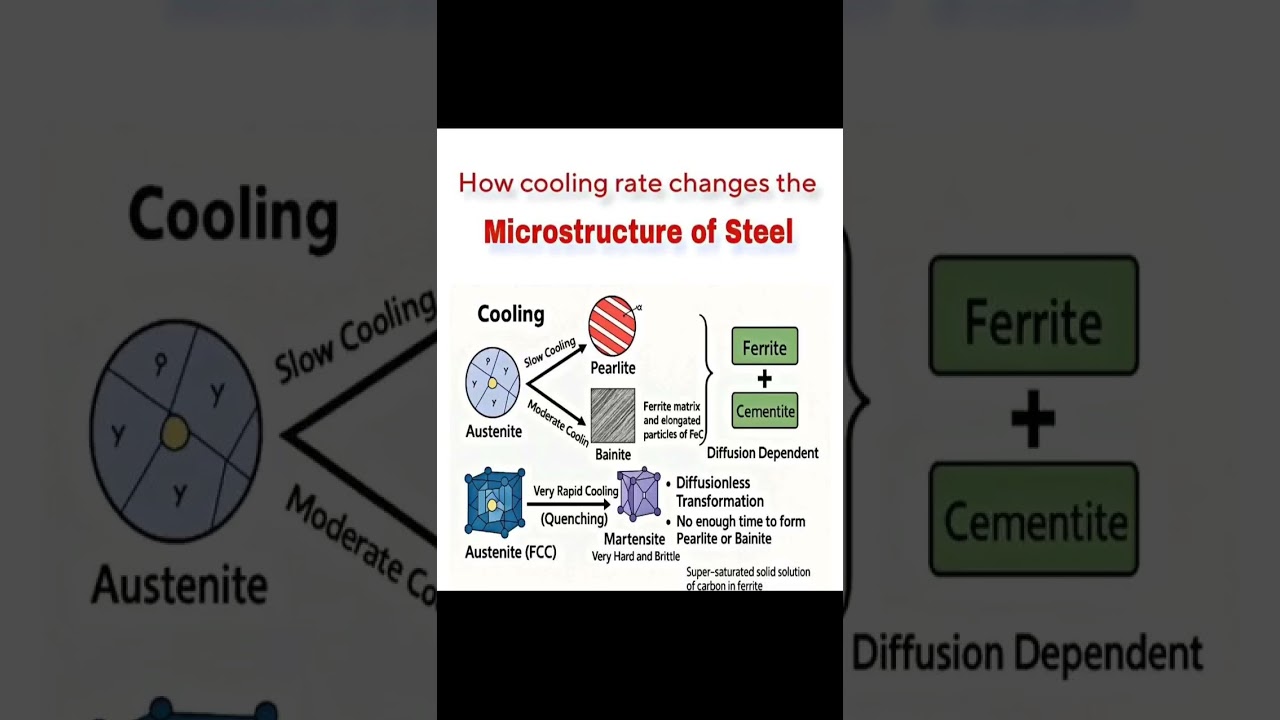

Steel isn't just one material—it’s a dynamic blend of microstructures shaped by carbon content, temperature, and cooling rates. These microstructural phases directly influence hardness, ductility, toughness, and application suitability.

Here’s a quick guide to the core phases of steel:

❶ Ferrite
🔹 Structure: Body-Centered Cubic
🔹 Properties: Soft, ductile, magnetic
🔹 Carbon Solubility: Up to 0.02% at high temp, ~0.006% at room temp


❷ Martensite
🔹 Formation: Rapid quenching cooling
🔹 Structure: Body-Centered Tetragonal
🔹 Properties: Hard & brittle; hardness increases with carbon
🔹 Tempered Martensite: Improved toughness by evenly dispersed Fe₃C


❸ Austenite
🔹 Structure: Face-Centered Cubic FCC
🔹 Properties: Non-magnetic, high carbon solubility ~2% at 1,150 °C
🔹 Stability: Transforms below 727 °C unless cooled rapidly
🔹 Applications: Austenitic SS 304, 316 retains structure at room temp


❹ Cementite (Fe₃C)
🔹 Nature: Intermetallic compound of iron and carbon
🔹 Properties: Extremely hard and brittle
🔹 Role: Strengthens steel when finely dispersed


❺ Bainite
🔹 Formation: Moderate cooling rates
🔹 Microstructure: Ferrite + cementite + retained austenite
🔹 Properties: High toughness, crack resistance
🔹 Use Case: Automotive suspension, wheels, structural components


❻ Pearlite
🔹 Formation: Slow cooling from austenite
🔹 Structure: Alternating ferrite and cementite in a lamellar form
🔹 Properties: Balanced strength and ductility
🔹 Visual: Resembles mother-of-pearl under a microscope



Key Takeaway:
The performance of steel lies in its microstructural makeup. Choosing the right phase—or combination—is essential for achieving the desired mechanical properties in critical industries like automotive, aerospace, energy, and construction.
