This integrated production line is designed for efficient and precise bottle handling, filling, capping, labeling, and packaging.​
Filling System​
16 filling heads ensure high - speed operation, with a capacity of 1L per fill.​
Utilizes a gear pump quantitative multi - head follow - up filling method, achieving a filling speed of approximately 6000 bottles per hour (calculated for 1L bottles) and an impressive filling accuracy of ±1%.​
Capping System​

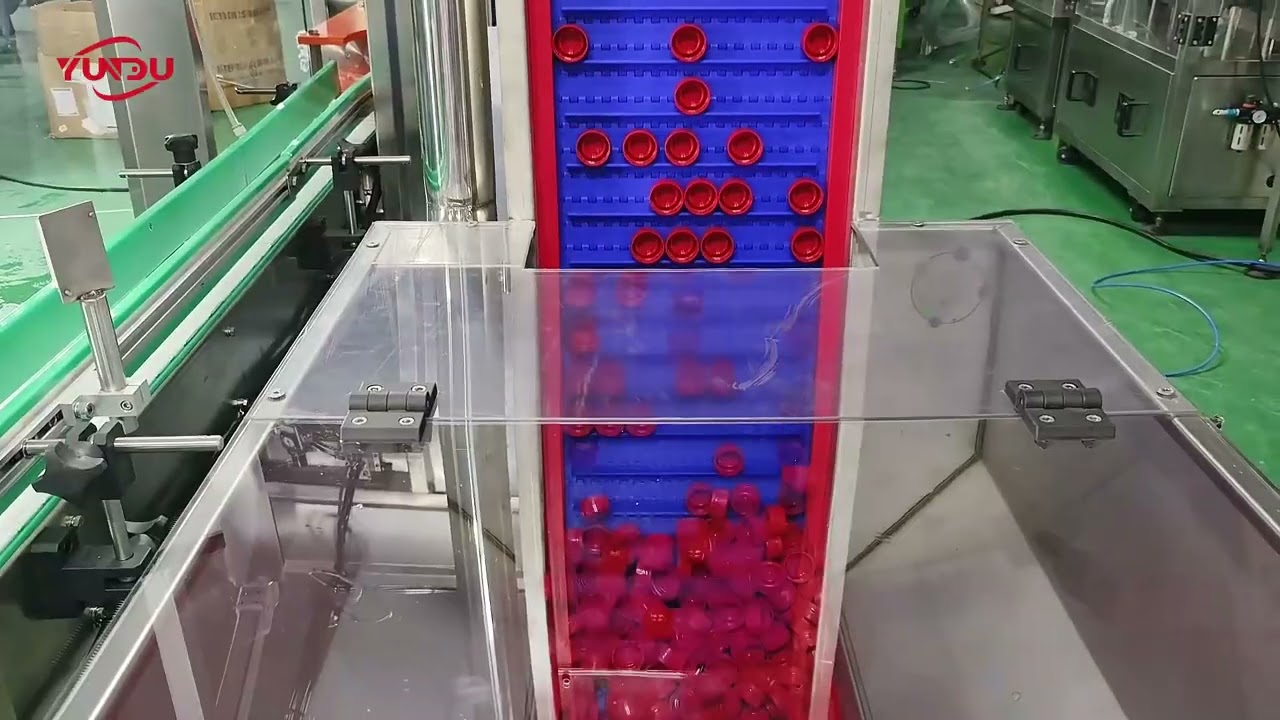

The capping process starts with a ladder belt lifter for cap sorting (component replacement required for different cap specifications).​
It features a rotary cap picking and placing mechanism, along with a rotary multi - head capping system, maintaining a consistent speed of around 6000 bottles per hour.​
Line Features​
Intelligent Control: Equipped with PLC and a touch - screen HMI, offering convenient, reliable, and user - friendly program control. Manual and automatic operation can be easily achieved via the HMI.​
Precision Sensing: Imported infrared sensors ensure accurate position control throughout the line.​
Quality Components: High - quality domestic electrical components are used for button switches, and domestic premium variable - frequency speed - control motors power the conveyor.​
Durable Conveyance: The conveyor belt, made of high - quality chain plates, is wear - resistant, corrosion - resistant, operates quietly, and is easy to clean.​
User - Centric Design: The HMI embodies a human - centered concept, displaying programs and sensor actuators with relevant graphic buttons. It has multiple parameter storage functions and provides common simple troubleshooting and usage guidelines.​
Tailored to the bottle specifications provided by customers, this line is constructed with 304# stainless - steel frames, ensuring durability and hygiene. It is the ideal choice for optimizing your production efficiency and product quality.​
