GATE Pattern Question (Mechanical Engineering):

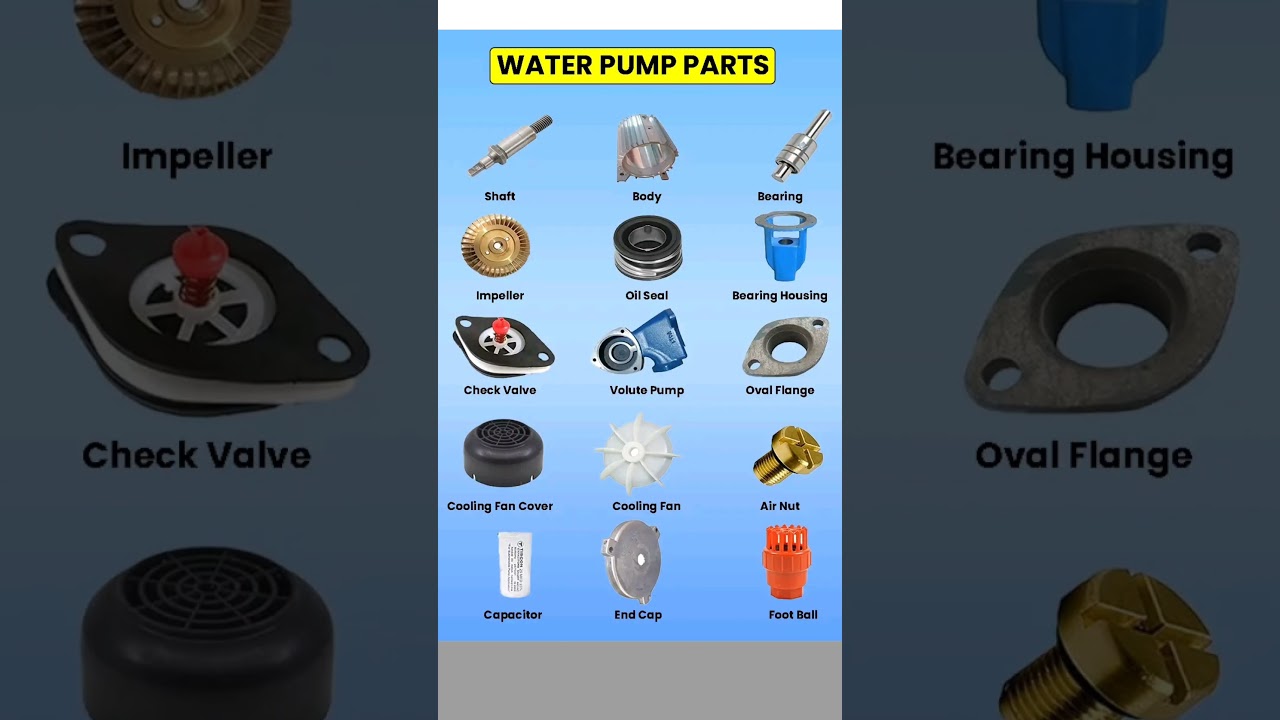

Q. Explain the construction and working of a centrifugal water pump with the help of labeled parts. Also, mention the function of each major component shown in a typical pump assembly.


---

📝 Long Answer (Structured for GATE Mains):

A centrifugal water pump is a hydraulic machine used to transport fluid by converting mechanical energy from a motor into hydraulic energy. The construction involves several mechanical and electrical parts that work in coordination for smooth operation. The major components of a centrifugal water pump are described below:


---

🔧 1. Shaft:

The shaft connects the motor to the impeller and transmits torque. It is generally made from stainless steel or alloy steel for strength and corrosion resistance.

🔧 2. Impeller:

This is the rotating part that accelerates the fluid outward due to centrifugal force. It converts mechanical energy into kinetic energy of water.

🔧 3. Pump Body (Casing):

This part encloses the impeller and channels water towards the discharge outlet. It also helps in converting velocity head into pressure head.

🔧 4. Volute Chamber:

It collects the high-velocity fluid from the impeller and gradually reduces the speed, converting kinetic energy into pressure energy.

🔧 5. Bearing and Bearing Housing:

Bearings support the rotating shaft and reduce friction. Housing provides alignment and lubrication to the bearing system.

🔧 6. Oil Seal:

Prevents leakage of lubricating oil and blocks the entry of water or dust into the bearing section.

🔧 7. Check Valve / Foot Valve:

Installed at the suction side to prevent backflow and ensure that the pump remains primed even when not in use.

🔧 8. Cooling Fan and Cover:

Mounted at the non-wetted end of the motor, the cooling fan prevents overheating, while the cover ensures protection and airflow direction.

🔧 9. Capacitor (in single-phase motors):

Used to provide the phase difference for starting torque in motors, especially in domestic and small pumps.

🔧 10. Air Nut / Air Release Valve:

Used for releasing trapped air from the pump casing during priming or before startup.


---

⚙️ Working Principle:

When the motor is switched on, the shaft rotates the impeller inside the casing.

Water enters through the eye of the impeller and is thrown outward by centrifugal force.

The volute casing collects the high-velocity water and converts it into pressure energy.

This pressurized water is then delivered to the outlet pipe.



---

📌 Conclusion:

A water pump's performance and reliability depend on the quality and maintenance of its individual components. Each part plays a critical role in ensuring pressure build-up, efficient flow, and mechanical stability.


---

Note: Such questions are frequently asked in GATE (ME), SSC JE, and diploma-level technical exams, often under topics like Turbomachinery, Fluid Mechanics, or Machine Design.
