In the analysis of data, a correlogram is a chart of correlation statistics.
For example, in time series analysis, a plot of the sample autocorrelations




r

h





{\displaystyle r_{h}\,}
versus



h



{\displaystyle h\,}

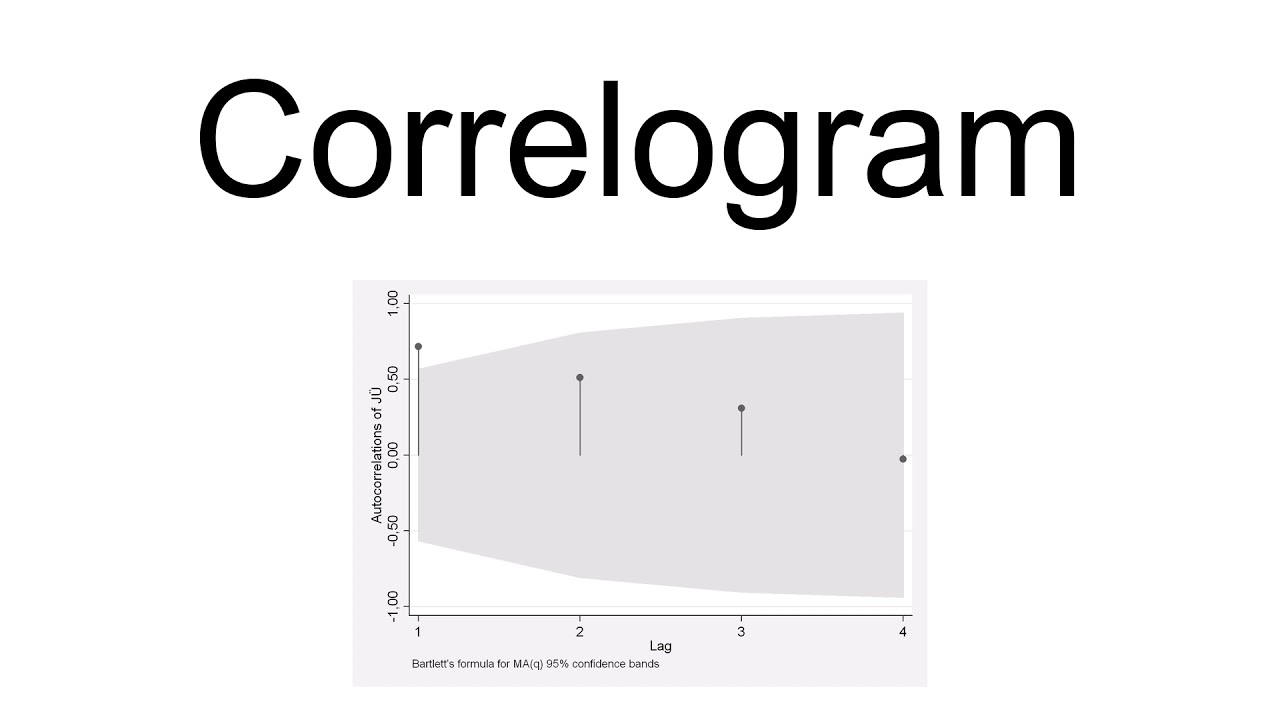

(the time lags) is an autocorrelogram.
If cross-correlation is plotted, the result is called a cross-correlogram.
The correlogram is a commonly used tool for checking randomness in a data set. If random, autocorrelations should be near zero for any and all time-lag separations. If non-random, then one or more of the autocorrelations will be significantly non-zero.
In addition, correlograms are used in the model identification stage for Box–Jenkins autoregressive moving average time series models. Autocorrelations should be near-zero for randomness; if the analyst does not check for randomness, then the validity of many of the statistical conclusions becomes suspect. The correlogram is an excellent way of checking for such randomness.
Sometimes, corrgrams, color-mapped matrices of correlation strengths in multivariate analysis, are also called correlograms.
