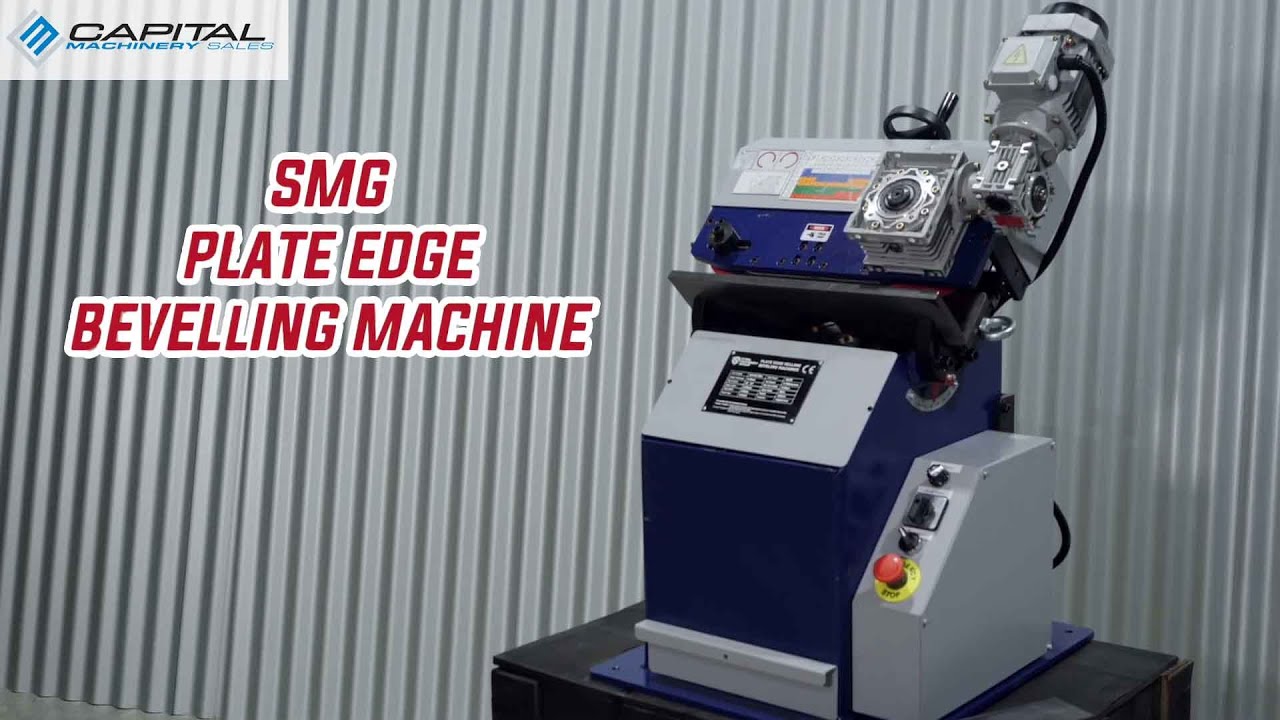

Discover the SMG 30W Workshop Plate Beveling Machine—a high-performance solution designed for small plates beveling and milling for weld preparation. Ideal for metal plates such as carbon steel, stainless steel, and aluminum, this machine boasts a wide working range with clamp thickness of 3-30mm and an adjustable bevel angle of 25-80 degrees. With two versatile processing modes, you can achieve precision and efficiency in both small and large steel plate applications.


Key Features:


Wide clamp thickness range (3-30mm) and adjustable bevel angle (25-80 degrees)
High-speed operation with spindle speed of 1050r/min
Dual processing modes: cutter-led and machine-led
High-precision milling with surface finish Ra 3.2-6.3
Cold cutting for safety and energy efficiency
Low noise operation with OL protection

Specifications:


Power Supply: AC 415V 50HZ
Total Power: 1620W
Feed Speed: 1000mm/min
Bevel Width: 0-30mm
Weight: N.W 155KGS, G.W 185KGS
Packaging Size: 6006001100mm

Standard machine includes:


1pc cutter head
2 sets of inserts
Tools in case
Manual operation

Experience easy operation, stable performance, and high efficiency with the SMG 30W Workshop Plate Beveling Machine. Perfect for achieving “V” and “Y” type bevel joints and 0-degree milling with a superior surface finish.
