Jog Controller Remote for use with Shapeoko / Carbide Motion - 9.5FT USB Cable - Plug and Play - No Additional Software Required

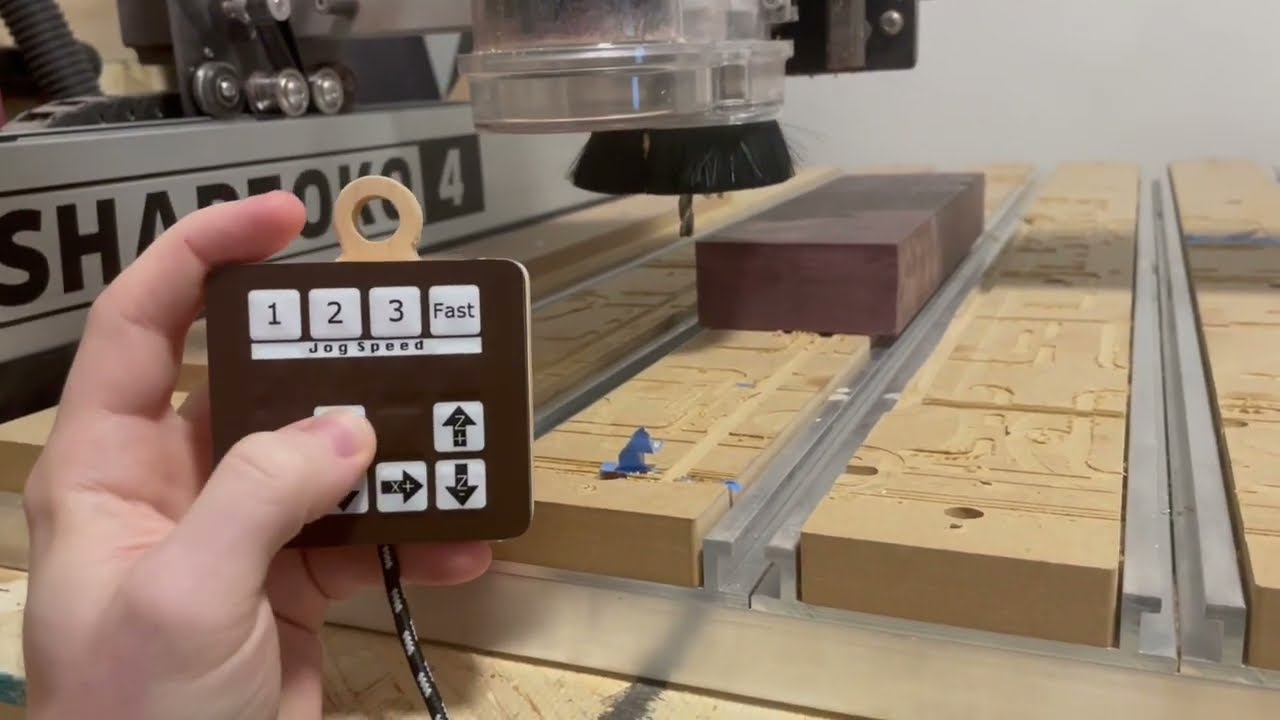

This keypad will control Shapeoko CNC jog functions when connected to a PC or Mac running Carbide Motion and displaying the Jog Control screen.

The keypad will be detected as a plug and play keyboard, so no additional software or configuration is required. This is a wired device so no battery or charging is required.

The keypad buttons send the following commands as keystrokes detected by the Carbide Motion software:

Y + (moves in positive direction on Y axis)
Y - (moves in negative direction on Y axis)
X + (moves in positive direction on X axis)
X - (moves in negative direction on X axis)
Z + (moves in positive direction on Z axis)
Z - (moves in negative direction on Z axis)
1 (Sets jog speed to lowest speed: .025 mm or .001 in depending on 'units' setting)
2 (Sets jog speed to second speed: .25 mm or .01 in depending on 'units' setting)
3 (Sets jog speed to third speed: 1 mm or .1 in depending on 'units' setting)
Fast (Sets jog speed to fastest available speed)

This device is compatible with all versions of Carbide Motion and Shapeoko CNC machines but it is not affiliated with or endorsed by the makers of those products.

Note: If you only have USB-C ports available, this works fine with a USB Type-A -to Type-C adapter (sold separately).
