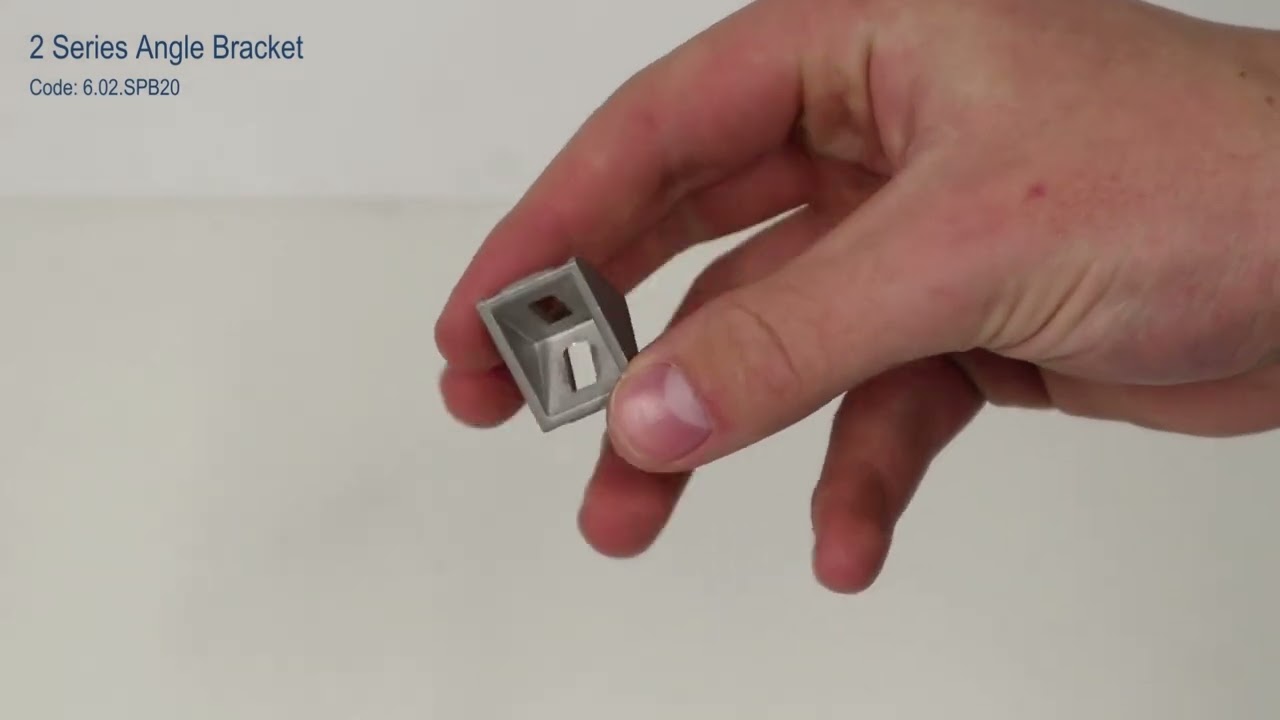

Angle brackets are a great way to connect two aluminium profile lengths at 90-degree. Since this connection requires no milling, the bracket can provide infinite positioning along the profile t-slot.

The 2 hole corner bracket with dual support is an external, die-cast fastening method. The dual support provides additional strength while the slotted holes allow for greater adjustability.

Options with a slot tab help line up the profile with the bracket and prevent rotation.

Product Code: 6.02.SPB20
Material: Die Cast Zinc
Fixings Required:
2x 3.02.T.SP4 – 2 Series T Nut M4
2x M4 x 8 Cap Screw
Compatible with: 2 Series SlotPro Standard Extrusion
