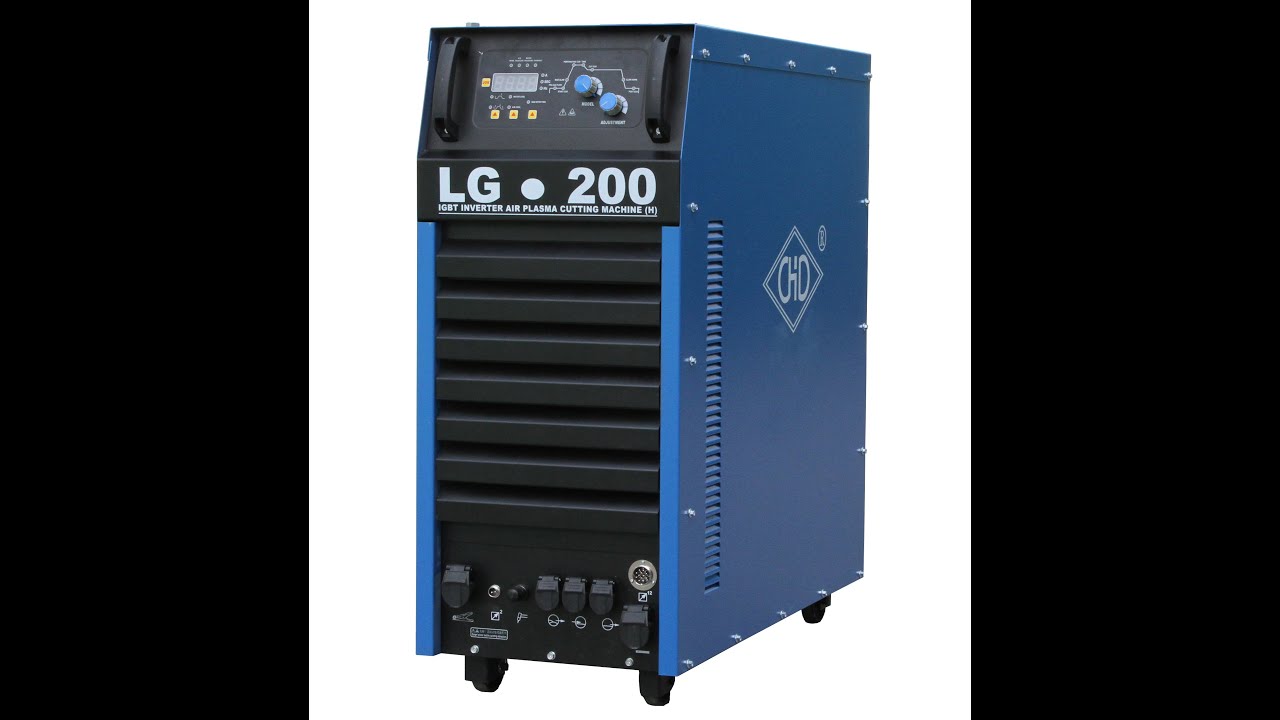

High quality LG-200 plasma cutting machine
Functions:
Air plasma cutting, Gouging

Application:
1.Cutting material: carbon steel, stainless steel, aluminum and other non-ferrous metals
2. Suitable for CNC cutting machines and robots, and can also be installed on CNC gantry

Shipping with 1set of 5m torch, 2m grounding wire and 1pcs of wire filter

Specification:
1.Model: LG-200
2.Rated input voltage: 3P, 380V ±15%, 50/60HZ
3.Rated input power: 35KVA
4.Rated output voltage: 160V
5.Duty cycle: 100%
6.Open-load voltage: 320V
7.Output current range: 30A-200A
8.Arc voltage output signal scale: 1:1
9.Torch gas pressure: 0.4-0.6Mpa
10.Max cutting C.S. thickness: 65mm
11.Optimal cutting C.S. thickness: 1-45mm
12.Arc striking method: HF
13.Enclosure protection degree: IP21
14.Insulation degree: F
15.Cooling type: Water cool
16.Size: 380*870*800mm
17.Weight: 82kgs

Main Features:
1.Adopt IGBT soft switch inverter technology: small size, light weight, easy to move, intelligent fan control, energy saving and power saving
2.High duty cycle, an efficient device
3.With precise preset cutting current function
4.Stable arc pressure, fast cutting speed, smooth cutting surface and small deformation
5.Cutting current rise slowly, delayed gas stop and other functions, effectively protect the cutting gun
6.Unique high-frequency arc starting method reduces the interference to the CNC system
7.The model can be customized as a split type, which is convenient for long-distance high-quality cutting
