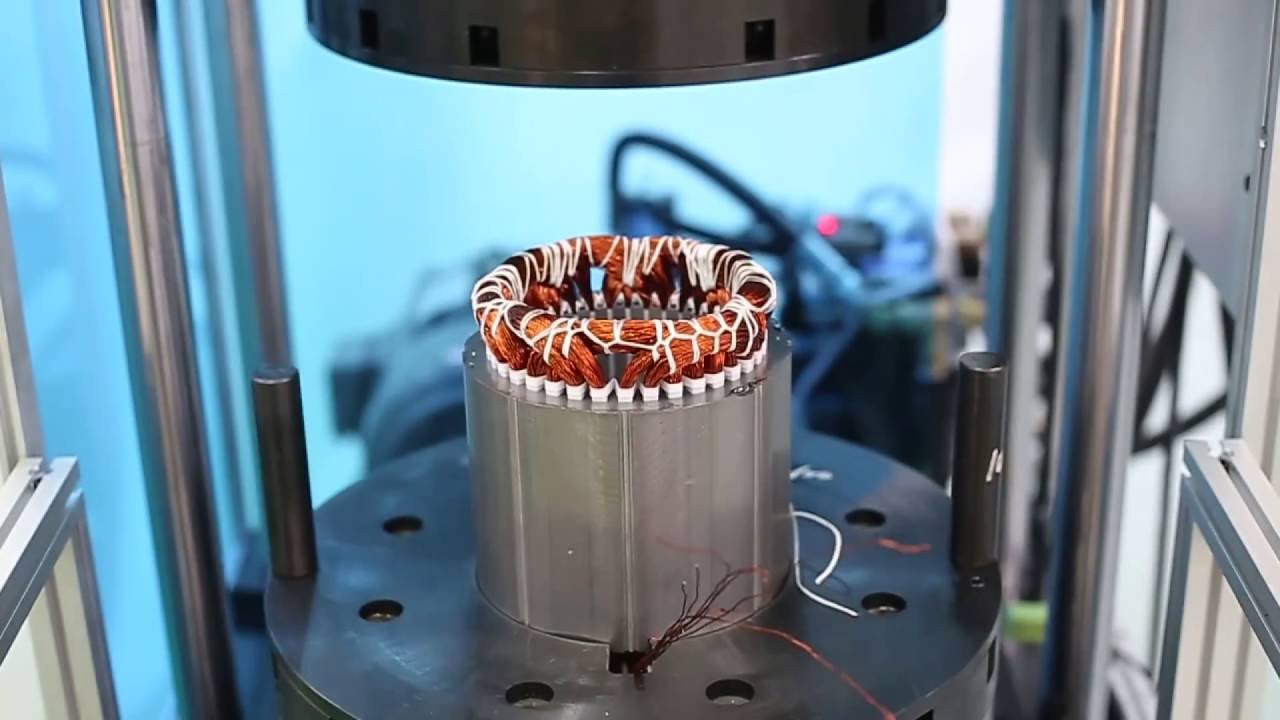

Скачать или смотреть Three phase motor stator coil final forming machine

This stator coil final forming machine is used to to coil shape forming after lacing process.

Machine main function and characteristic
This machine adopts whole hydraulic system and PCL program.
This machine can adjust the forming stack length by changing washer.
Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Production capacity ≤13s/set (exclude loading/unloading time)
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.


Contact person: Annie ([email protected])
Web: http://www.nide-group.com/
