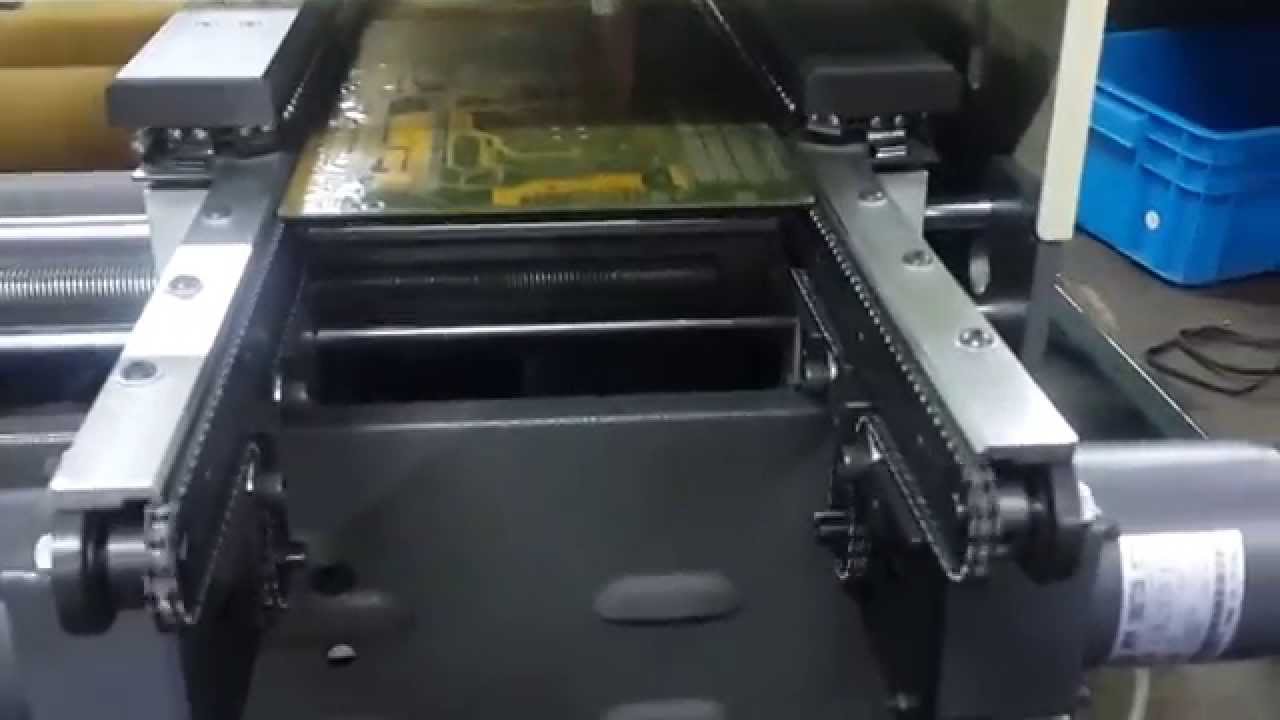

Auto PCB Brushing Machine
FEATURES

Automatic brushing the PCB, 2 sets of brush-rollers designed to ensure the surface of PCB can be cleaned completely.
The speed, height and cleaning angle of brushes can be adjusted.
PCB Warp device is equipped to ensure the PCB can contact the surface of the brushes during the operation.
Available to connect with a wave soldering machine with Inlet and outlet conveyor.
Brushes clean tin residual, flux away and will not damage PCB.

SPECIFICATIONS

Dimension:1480(L) x 700(W) x 800(H) m/m
Power: Single Phase/ 220V/50Hz
Net Weight:160Kgs, G.W.: 270 kgs
RPM of Speed:0-3 M adjustable
PCB working size:10mm ~ 400mm
RPM of brusher:0 ~ 700 rpm

Ren Thang. Co., Ltd.
Add.: No.17, Lane 139, Min’an E. Rd., Xinzhuang Dist., New Taipei City, 24266, Taiwan (R.O.C.)
Tel: +886-2-82011187, +886-2-2202-1205
Fax: +886-2-2203-9391
E-mail:[email protected] www.renthang.com
