Please go visit our website above to learn more information about lab vacuum homogenizer mixer.

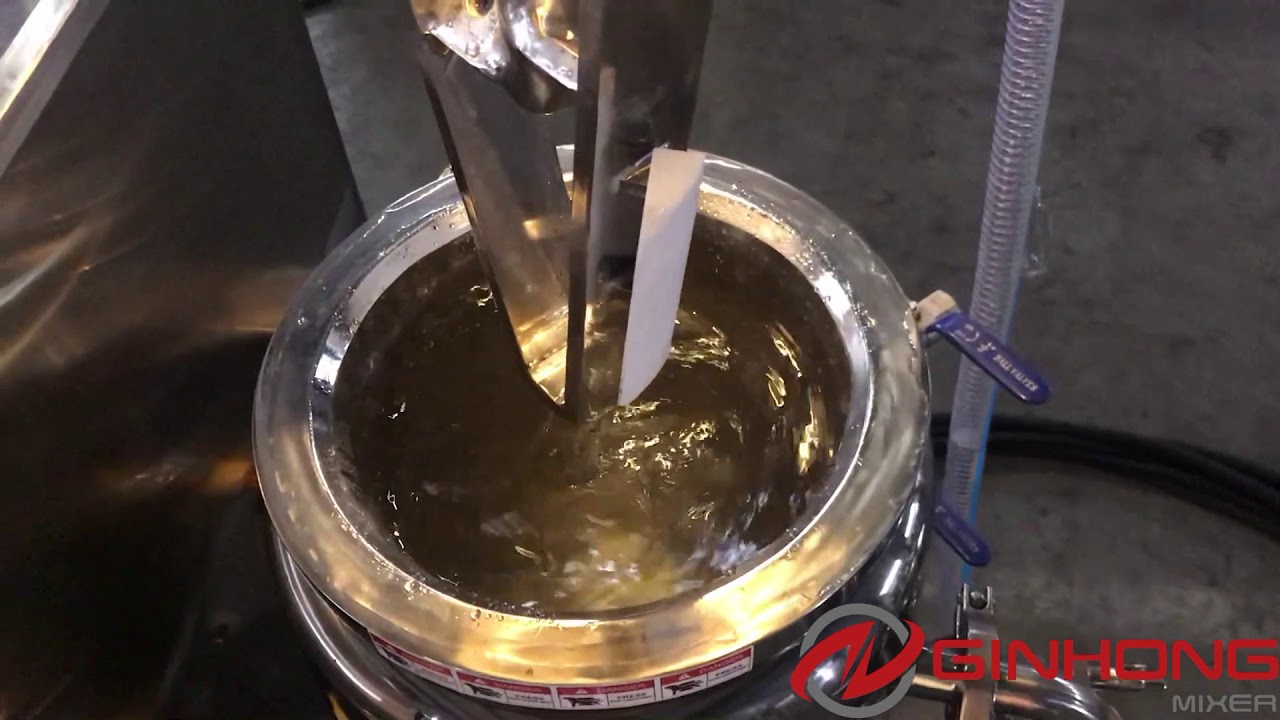

It’s RX-5L laboratory mixer tested by water in the workshop. Our worker is showing how to carry out primary functions of this mixer. The machine was ordered by an American pharmaceutical company to produce semi-solid dosage forms.
Pharmaceutical semisolid dosage preparations include:Ointments, pastes, cream,plasters, gels and rigid foams. These preparations are usually used ton the body surfaces. In general, they contain one or more active ingredients dissolved or uniformly dispersed in a suitable base and any excipients such as emulsifiers, viscosity increasing agents, anti microbial agents, antioxidants, or stabilizing agents etc.
This mixer comprises an emulsifying tank, an oil phase tank, a water phase tank, 0.37kw central agitator, 1.5kw bottom homogenizer, 0.2kw vacuum pump, 0.75kw electric lifting motor, heating and cooling system, and electrical cabinet etc. The important advantage of RX lab vacuum mixer is the material circulation system. All the ingredients run inside the stainless pipe and back to the main tank for mixing and emulsification again and again.
What is lab vacuum homogenizer mixer?
RX lab vacuum homogenizer mixer, also called lab vacuum homogenizer machine, is a complete laboratory vacuum mixer system for the manufacturing of viscous emulsion, dispersion and suspension in the cosmetic, pharmaceutical, food and chemical industries. It’s the lab version of our RX vacuum homogenizer mixer and is suitable for customers to make test batches. Scale up can be easily achieved based on the result of lab testing.
What is lab vacuum homogenizer mixer made of?
RX lab vacuum homogenizer machine is usually made of main homogenizer mixer, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, materials circulation system, heating and cooling system, temperature control system and electrical control panel etc.
The main homogenizer mixer is composed of a vertical type inline high shear mixer mounted from the bottom of the manufacturing vessel, wall scraper and two fixed propellers with holes. The bottom homogenizer consists of one three-layer toothed rotor and one two-layer toothed stator. An external circulation pipe comes along the tangent of rotor and connects to the top edge of the tank body.
The oil and water phase mixers have exactly the same construction. There’s a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main homogenizing equipment only.
How does laboratory vacuum homogenizer machine work?
During the mixing operation, the outer anchor agitator rotates clockwise slowly. With the attached Teflon blades, the materials are scraped off the mixing tank wall and move upwards so they won’t always stick to the wall and burn.
At the same time the two fixed impellers keep still and give the materials a counterforce and drive the cream downward into the high speed homogenizing and emulsifying zone. The cream goes through the holes on the paddles and increases mixing effect.
Because of the two opposite forces by fixed impellers and wall scraper, the cream rolls over the vessel from top to bottom and back to top repeatedly. When the cream is completely mixed, the heat from the jacket is quickly transferred to every part through the inside wall.
The heart of vacuum homogenizer equipment is rotor stator homogenizer (or called emulsifier) which consists of one three-layer toothed rotor and one two-layer toothed stator. The design is different from the homogenizer in RS series production vacuum emulsification mixer and is much better.
The rotor is directly connected with homogenizer motor by flanges. The ABB or Siemens motor rotates at the speed of 3000rpm and drives the rotor to rotate at high speed producing strong suction force.
The materials go into the rotor from top opening of the homogenizer and are cut, sheared, emulsified and homogenized through the shear gap between the rotor and stator. Then they’re accelerated to jet out through the pipeline along the tangent of the rotor. The cream runs inside the external circulation pipe and goes back to mixing tank for the slow mixing or another emulsification and homogenization.
The above two types of slow and high forces repeat and repeat. And the cream circulates through the pipeline and is completely mixed, dispersed, emulsified and homogenized.
