Скачать или смотреть Sugar Coating Machine Pill Coater Tablet polishing equipment instruction demo آلة طلاء

Chinese water chestnut-type coating machine is mainly used for the pharmaceutical industry in the compaction of the tablets, pills, and coated particles can also be used in the food industry in the mechanism or candy coating.
The sugar-coated tablet coated with a shiny polished surface to prevent oxidation, moisture, or volatile, but also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system.
B. Basic Technical Parameters of tablet coating machine pills pharmaceutical coater equipment máquinas de recubrimiento tabletas:
1. Coating pan diameter: 600mm
2. Production capacity: 8-15kg/time
3. Regulating range of air temperature: Normal temperature -80 ° C
4. Speed regulating range of main engine: 0 ~40r/min
5. Main motor power: 0.75kw
6. Blower fans power: 120w
7. Air compressor: Self-prepared
8. Heating total power: 2Kw
9. Solenoid Valve: G1 / 8 "
C. Working Principle

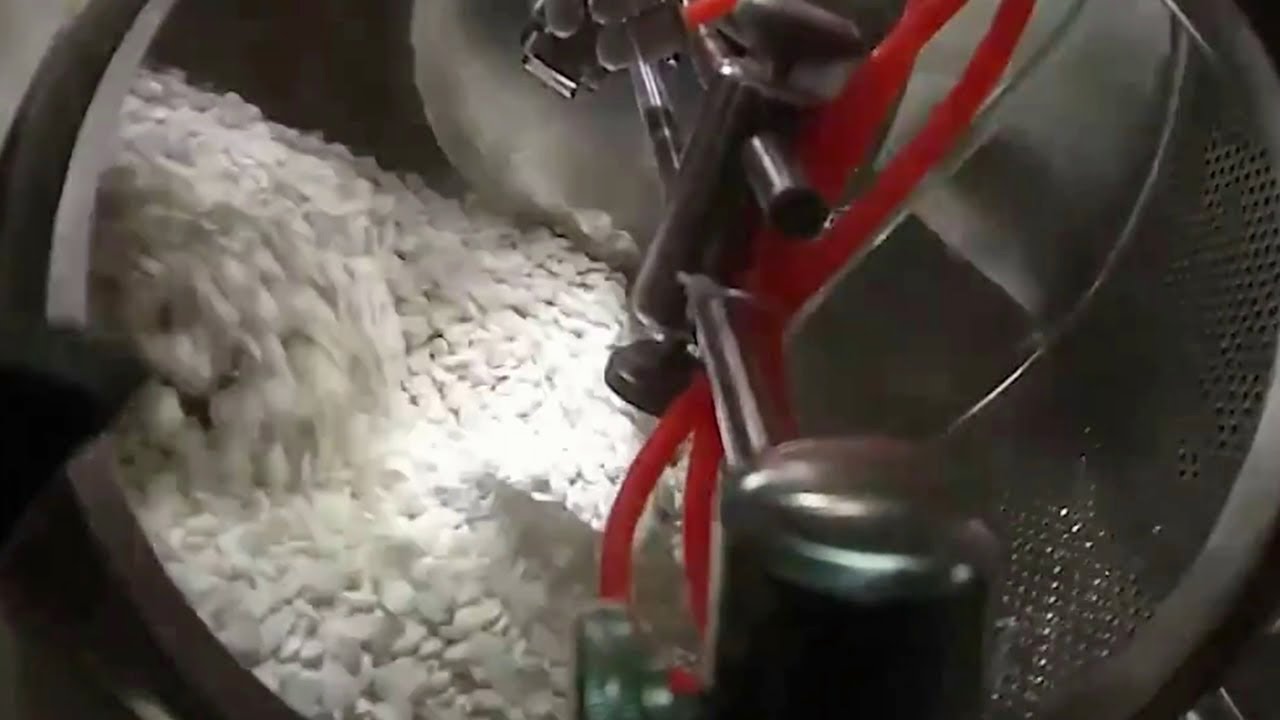

Pot body clockwise rotation, through the inverter to adjust the speed pot, gun on the pot-chip re-sprayed coating liquid, so that uniform coating liquid coating on the chip and make tablets tumble in the pot evenly, while the pot Link to hot air, remove the tablet surface water and access to qualified coated tablets.
With reasonable switching, stable speed to make tablets to create the best logistic curve in the pan, in order to meet the technological requirements coating.
Features of tablet coating machine pills pharmaceutical coater equipment máquinas de recubrimiento tabletas:
All the operations, including expansion of PLC module, setting and control of hot air temperature and adjustment of drum SERIES HIGH-EFFICIENTspeed, are carried out on the touch keys of control panel of computer, and the operating panel is a fully closed light touch film interface which does not influence the cleaning of main machine, thus featuring reliable work, stable performance and conforming to the requirement of GMP.
Under the action of the agitator of steam line guide plate type, the tablet cores are tumbling smoothly and exchanging frequently, thus eliminating the phenomenon of tablet cores to fall from a high place and to collide, solving the problems of broken pieces and chipped edge, and improving the rate of finished products. The narrow surface of the guide plate eliminates the adhesion of coating material on its surface, thus saving the coating material and improving the quality of medicine.
The peristaltic pump with constant pressure variable eliminates the need for a return pipe. The turning radius of the drum varies along with the pressure change. The output slurry and the quantity of slurry sprayed are balanced automatically, thereby stabilizing the effect of atomization, simplifying the spray system, preventing the spray gun from plugging-up, and saving the coating material, moreover the cleaning is simple, and there is no dead corner.
The spray gun specially designed for the film coating machine features even atomization and large coverage of spraying. The universal adjustable spray head makes the cleaning mechanism of spray gun unaffected by charge quantity, so that film coating can proceed continuously, thus reducing the film coating time and saving film coating material.
