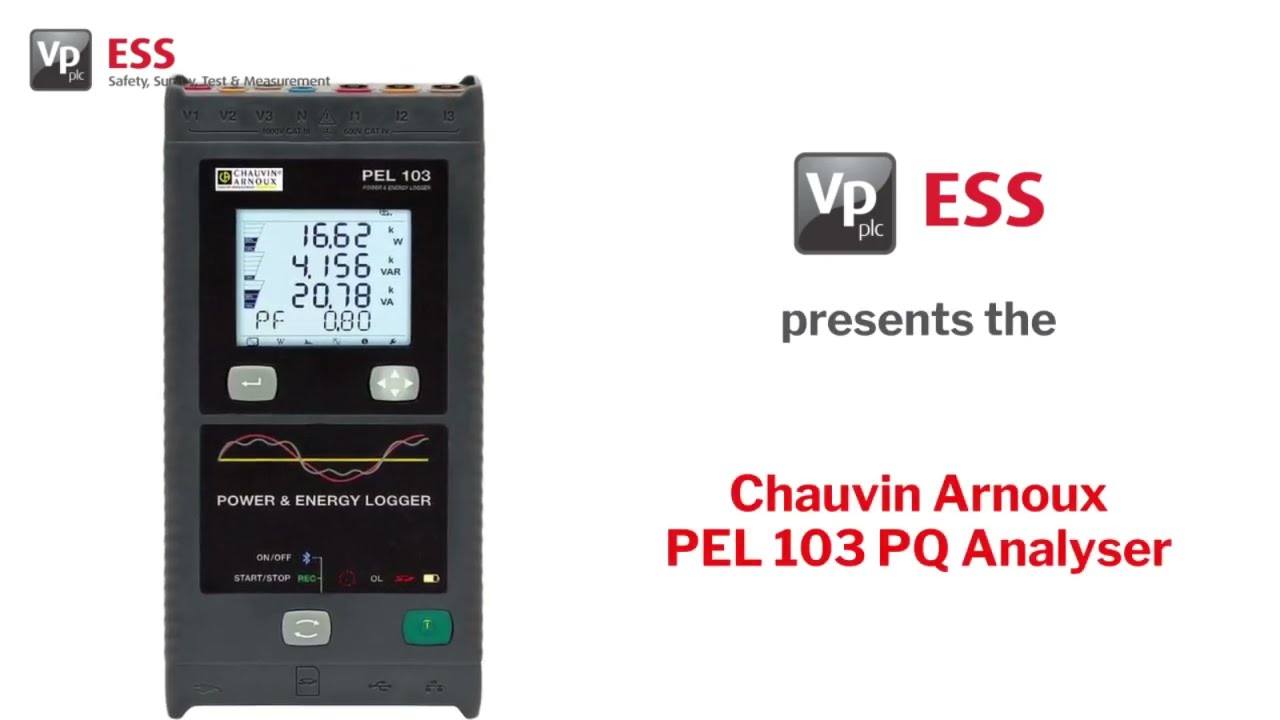

Chauvin Arnoux PEL 103 PQ Analyser
The all in one solution for long/short term energy optimisation and power measurement. The Chauvin Arnoux PEL 103 analyser is a power and energy logger for all electrical installations. Recording every detail of electrical consumption within a system, used either simultaneously with real time data or for historical analysis. Equipped with all essential measurement features needed to provide you with competent supervision of electrical distribution and successful energy efficient projects.

Chauvin Arnoux PEL 103 analysers are an essential addition to any electrical system. The analysers create the measurements by the means of current sensors and voltage inputs, used to view all parameters and take advantage of measuring, energy metering and communications functions. The PEL103 can be easily positioned due to the unit being magnetized, meaning it can be positioned anywhere within any electrical cabinet without causing difficulties once positioned.

Key Features
• Automatic identification of linked sensors
• Connection through Ethernet, USB, and Bluetooth
• Using SD and SD-HC cards for recording
• Can perform installations that are single-phase, split-phase, three-phase, with or without a neutral, as well as more intricate combinations.
• Implementation without cutting off the mains power supply
• Using PEL Transfer software, real-time connection with a PC, and analysis

Tech Specs
• Voltage up to 1,000 V
• Current up to 10,000 A
• Voltage ratio: up to 650,000 V
• Current ratio: up to 25,000 A
• Power from 10 W/var/VA to 10 GW/Gvar/GVA
• Energy: up to 4EWh / 4 EVAh / 4 Evarh
• Phase: cos φ, tan Φ, PF
• Harmonics: up to 50th order
• Memory card: 8 GB SD (SD-HC card up to 32 GB)
