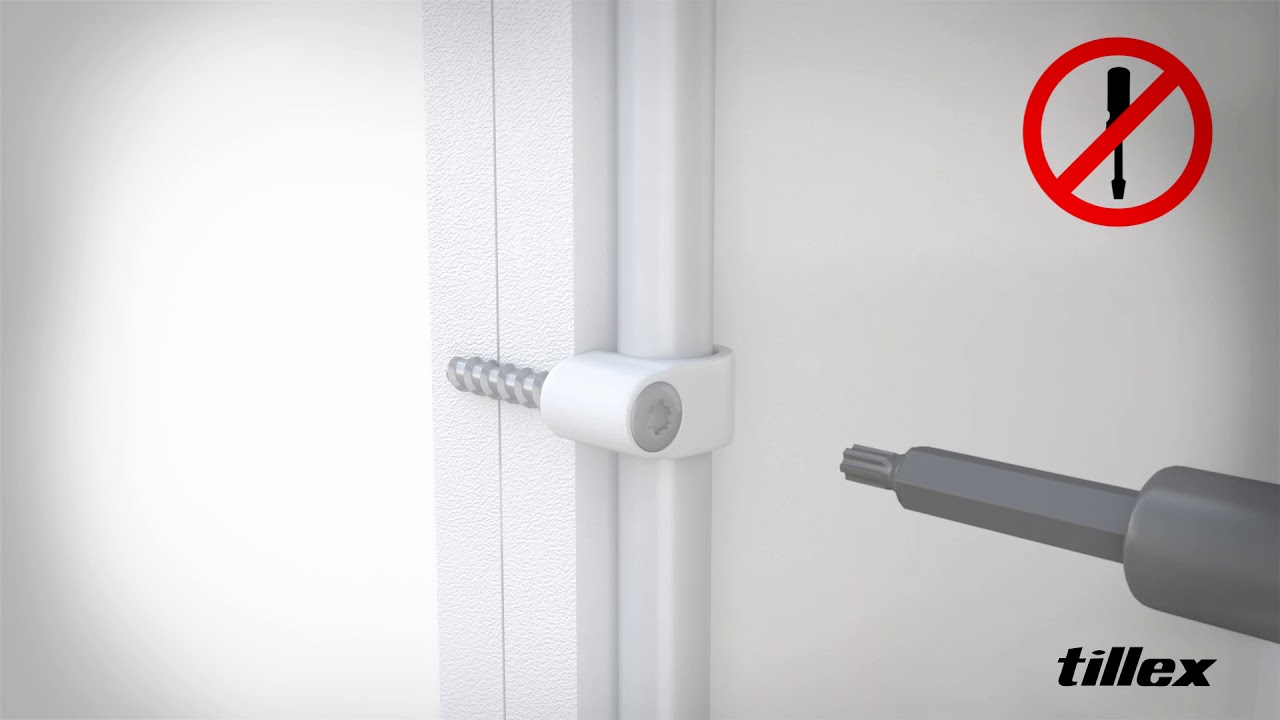

Tillex cable clips with screw can be used both for indoor and outdoor applications. Strong concrete screw, of Corrosivity class C4 provides a high level of outdoor protection. Mount the screw directly into concrete or brick in a pre-drilled 4 mm hole. Screw can also be mounted in double-layer plasterboard. If screw against expectation ”goes over”, mount using yellow plug (KP yellow) in the created hole.

For concrete and tile: screw directly into 4 mm hole – no plug required.
For 13 mm single-layer plasterboard: mount using yellow plug (KPyellow).
For double-layer plasterboard – no plug required.
If screw “goes over”, mount using yellow plug (KP yellow) in the created hole.
For 13 mm single-layer plasterboard on metal profile – no plug required.
For wood, fibreboard and plywood: screw directly into material.
For aerated concrete: mount using yellow plug (KPyellow). For densities above 600, screw directly into concrete.
