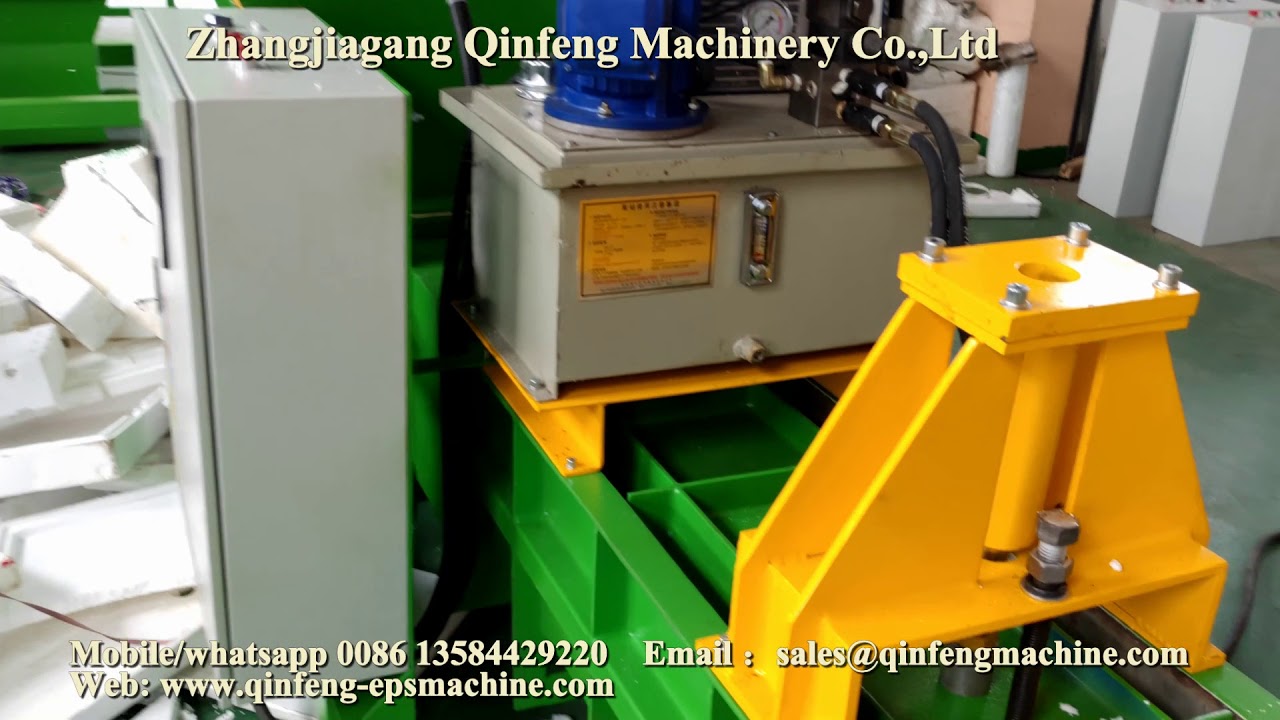

Скачать или смотреть CF CP380 cold compactor for polystyrene

EPS Compactor 冷压机
Most polystyrene products are currently not recycled due to the lack of incentive to invest in the compactors
and logistical systems required. Due to the low density of polystyrene foam, it is not economical to collect.
However, if the waste material goes through an initial compaction process, the material changes density
from typically 200 kg/m3 to 250 kg/m3 and becomes a recyclable commodity of high value for producers of
recycled plastic pellets. Lianguan Machinery is just making the Styrofoam compactor to solve this
problem,it can reduce the size of the EPS material, the compressing ratio can reach1:30-1:50.The finished
products is the EPS blocks, the density can reach 350kg/ m3 .It is easy for the customer to deliver the EPS
material to another recycling processing unit. This Styrofoam compactor is mainly used for waste
disposal, including: paper, EPS (polystyrene foam), EPE PUR EVA and so on. The material through the mill
to be ground into a block compaction process. Through numerous experiments on the Styrofoam
compactor and continuous improvement, to create a superior performance. Styrofoam compactor is
controlled unit is based on PLC automatic control system and a peripheral circuit performance is extremely
reliable. First with the crusher and the screen on this compactor to get the small size of the material, then
after the material fall down into the screw, the main motor push the material forward in the screw,
meanwhile the hydraulic system on the mould head close to press the EPS material, the EPS material will
come out by blocks, it can reduce 30-50 times space for the material, and easy to move an delivery. All the
parts of the machine we composed into one machine, save cost , power consumption, and space for the
machine. The EPS blocks can be crushed again to process to the next unit. The Styrofoam compactor
CF-CP380 which capacity is 150kg/h from Lianguan Machinery, with the four sets of 2.2kw crusher motor
and 11kw screw motor. The Styrofoam compactor CF-CP380 is suitable for the big super market, big
Zhangjiagang Qinfeng Machinery Co.,Ltd
Tel：0086 512-58200823 Fax：0086 512-58200820 Mobile Phone：0086 13584429220
Address:358，Jiangjin Road,Jinfeng,Zhangjiagang,Jiangsu PRC Email: [email protected]
seafood market, it is also fit for the big size EPS waste recycling companies to compact the waste
material。The customer will get the EPS blocks with the 380mm x 380mm size.
Zhangjiagang Qinfeng Machinery Co.,Ltd
Tel：0086 512-58200823 Fax：0086 512-58200820 Mobile Phone：0086 13584429220
Address:358，Jiangjin Road,Jinfeng,Zhangjiagang,Jiangsu PRC Email: [email protected]
Model CF-CP-380
Capacity 150kg/h-200kg/h
Screw Diameter φ350mm
Input size 1000mmx900mm
Screw rotation speed 36rpm
Crusher blades 4Sets 10+9+10+9sets
Blade rotation speed 120rpm
Main motor 15kw
Crusher motor 2.2kw X 4
Hydraulic motor 1.5kw
Production size 380x380mm
Machine Outline 4800x1500x2500
Weight 1800kg
Item Standard configuration
Motor Beide Siemens
Control PLC Control （SIEMENS ）
Touch Screen （WEINVIEW ）
Gearbox CASTLE
Bearing ZWZ
Electricity Elements SIEMENS
