Скачать или смотреть Littleford Plow Mixer FKM600D | Demonstration

To view additional machinery on our website click here: http://www.fraingroup.com.

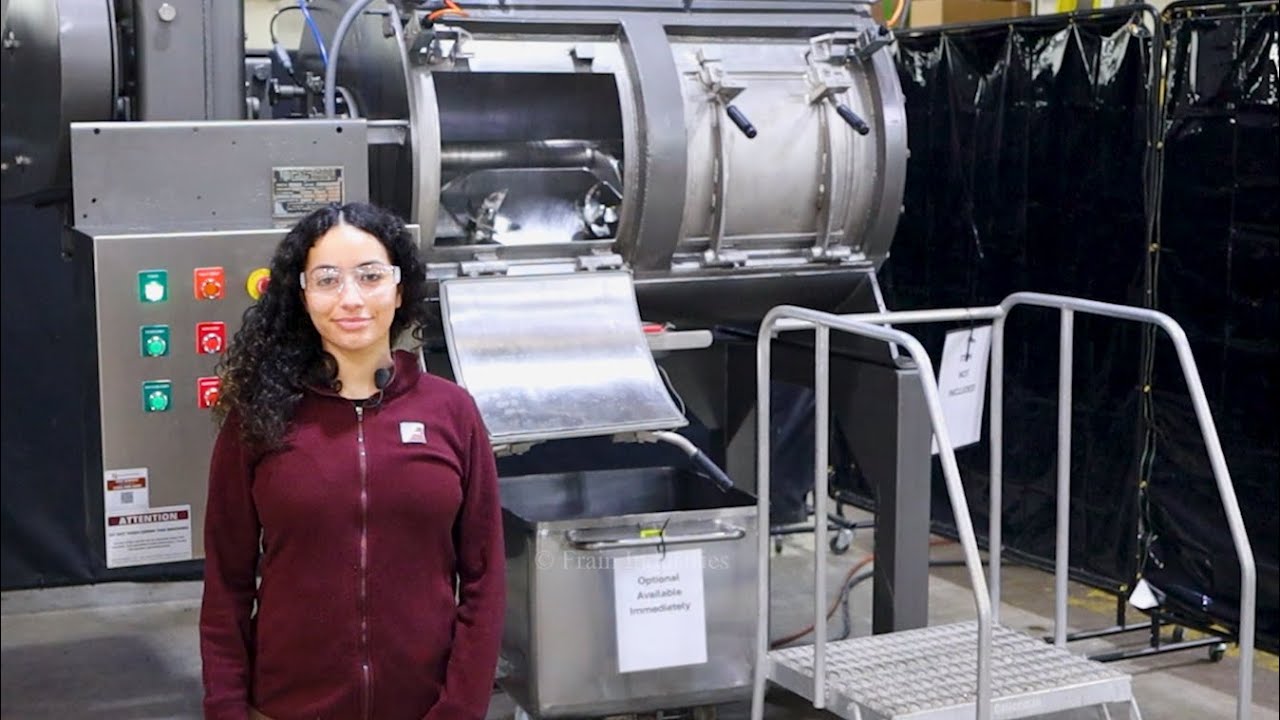

This is the demonstration of the Littleford, Model FKM600-D, 21.9 ft³ total capacity / 12.9 ft³ working capacity, 316 stainless steel jacketed plow mixer with pounds of product per hour - depending on materials and application. Interior chamber dimensions: 32" in Diameter x 48" in Length. Equipped with (5) plows powered by 20 Hp drive and (2) 5 Hp choppers, with side chamber safety interlocked access door. 15" ID center bottom discharge with 41" floor clearance. Mounted on (4) leg frame.

Top Access:
(1) 13" diameter with bolt down cover
(1) 6" diameter open vent

Jacket Access:
(4) 1½" NPT

OAD: 88"L x 60"W x 96"H
