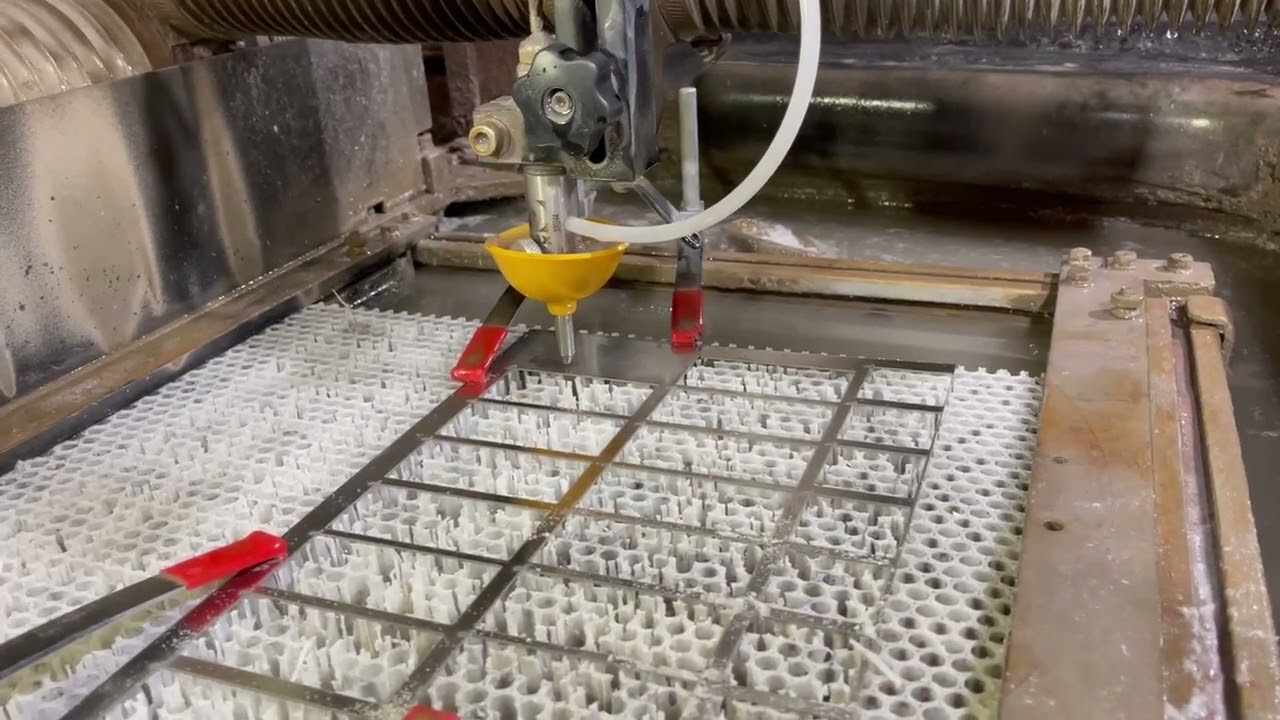

Скачать или смотреть 12" x 12" Omax ProtoMax Waterjet, 2020 - 30,000 PSI, Screen Drain Filter

Cutting Area: 12" x 12"
Max Material Thickness: 1.00"
Linear Positional Accuracy: ±0.005"
Repeatability: ±0.003"
Traverse Speed:100 inches per minute (IPM)
Pump Type: 5 HP (3.7 kW), Direct Drive
Cutting Pressure: 30,000 psi
High Pressure Water Flow Rate: 0.2 mm (0.95 lpm)
Orifice Internal Diameter: 0.008”
Mixing Tube: 2.25"long; 0.030" internal diameter
Electrical: 240VAC / 60 Hz Receptacle, 10' cord
Environment: 50 to 90 °F (10-32 °C) ambient temperature with 95% or less humidity
Minimum Input Water Pressure: 45-85 PSI
Minimum Flow Rate: 0.75 GPM
Temperature Required: 45-80 °F
Flow rate: 0.25 lbs. per minute
Recommended size: 80 mesh
Hopper Capacity: 14 lbs.

Equipped With:
Drain Water Filter Tank (With a Bag Filter and a
