This video is to bring you a closer look at the ASI 0402-WZ Recessed Toilet Tissue Holder for Wet Wall Installation.
A single roll toilet paper holder.
There is a link below this video to the cut sheet showing you everything important that you need to know.
First and foremost the rough opening is 5-1/4" x 5-1/4" x 2".
Holds up to a 5" diameter roll.
Zamak material, not magnetic.
Includes this plastic spindle.

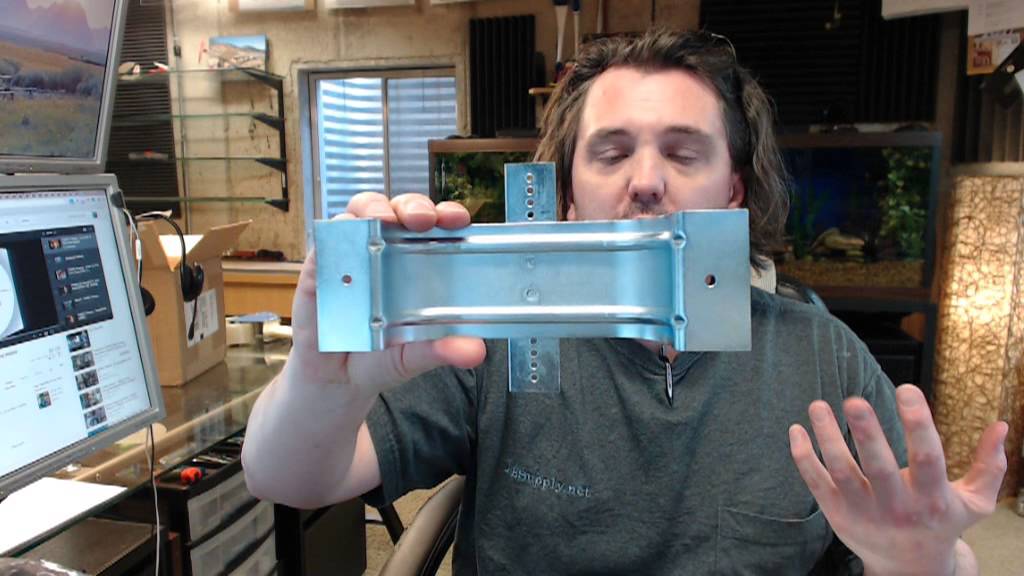

Now this variant is going to include a clamp.
You've got to get this installed into the wall, maybe even attached with the screws provided.
Or you can get this in the wall and kind of floating there or temporarily held, then it will go together as so (see video at 2:15).
In between the flanges are several holes that are drilled.
It is through these two hoes in the back that you would run these long 832 flat head bolts.
When you get it installed and you run the screws through the holes, it'll will go into the tapped holes here and draw the clamp towards the inside face of the wall.
Or you could always just take the screws without the anchors and put them through the two dimpled holes and mount it that way.
Units like these you'll see in motels and residential applications.
Mirror finish to it.
Make sure that you follow ADA compliance guidelines in terms of where to install these, only if it is going to be in public space (motel, ect.).
It is indicated on the cut sheet.
Center line of roller, 19" minimum above a finished floor all the way up to a 42" maximum.
39" maximum for rear wall.
ASI is a full-line manufacturer of not only typical builders quality material, but things that you're gonna see solid stainless steel multipurpose units, trash cans, grab bars, mirrors, ect.
If you have any questions on the ASI 0402-WZ Recessed Toilet Tissue Holder for Wet Wall Installation or any other product by ASI please feel free to reach out to us.
