How to choose Microchannel Plate detector MCP - [email protected]

Del Mar Photonics has strong experience in the supply of Microchannel Plates (MCP) and MCP detectors for variety of applications.

Please tell us about your application and requirements so we can answer with detailed proposal in a timely manner:

1. What type of particles/photons you plan to detect?

2. What is the expected energy of the particles at the entrance of MCP detector?

3. Tell us about the flux of the particles: is it continuous or pulsed? how many particles per second or per pulse? in case of pulsed signal how long is the pulse and what is the pulse duration and repetition rate.

4. Do you require detection or imaging of the particles? The required time resolution will determing if you need standard or special fast anode.

5. If you need to image or profile particle beam we offer MCPs together phosphor screens (standard P20, P43 and P47 as well as many others). Choice of phosphor is usually dictated by what readout (CCD or PMT) will be used.

6. If you need fast imaging we can offer special phosphors - please indicate required imaging speed.

7. Do you need stand alone or flange mounted MCP detectors with high voltage feedthroughs. In case of imaging applications flange mounted detectors are supplied on a viewport.

8. What is the required active area of the detector?

9. Do you required configurations with single, double or z stack MCP detectors? If you are not sure, your answers to the previous questions will help us to offer you the right configuration.

Request a quote at [email protected]

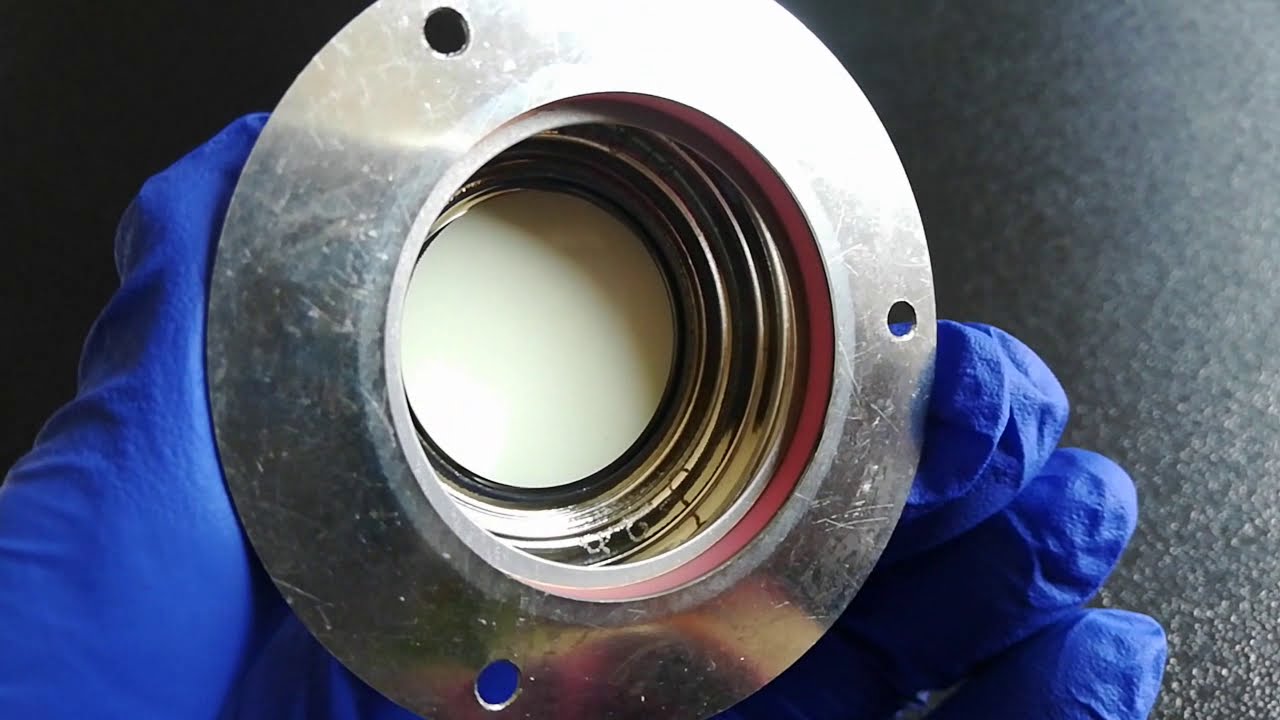

Shown in the video custom made imaging MCP detector MCP-GPS 34/2
