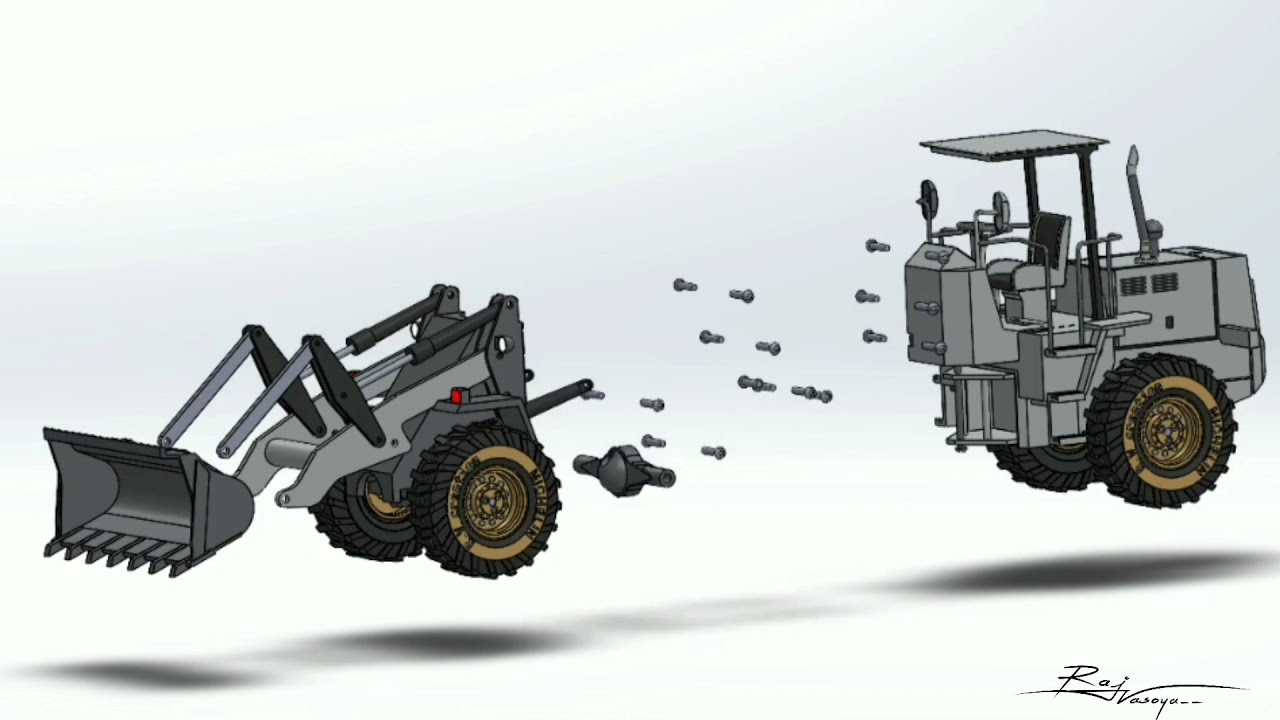

Скачать или смотреть created from solidworks | PROJECT JCB | DESIGN | exploded |

》it is very complex to design a that type of model
》it consist about 15 to 16 hours and about 3 days.

◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇

i use solidworks software to designing...it is easy to use but contains after numbers of practice.

◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇

SOLIDWORKS REQUIREMENTS FOR HIGH PERFOMANCE PCs (2020)》》》》》》

Processor: 3 GHz or higher clock speed (preferably closer to 4 GHz)

Operating System: Windows 10 64-bit

Memory: 32GB (16GB minimum)

Hard Drive: Solid State Drive (SSD), maintaining at least 20GB free space

Graphics Card:

Standard assemblies: NVIDIA Quadro P1000 or AMD Radeon Pro WX 4100

Large assemblies with simple parts: NVIDIA Quadro P2000 or AMD Radeon Pro WX 7100

Large assemblies with complex parts: NVIDIA Quadro P4000/5000 or AMD Radeon Pro WX 8200/9100

SOLIDWORKS Visualize 2020: NVIDIA Quadro P4000/5000 or AMD Radeon Pro WX 8200/9100

Internet Connection: High speed broadband connection for downloading service packs

File Storage: SOLIDWORKS PDM Standard or SOLIDWORKS PDM Professional

SOLIDWORKS REQUIREMENTS FOR LOW PERFOMANCE PCs (2014)》》》》》》》》》》


Operating System

• Windows 7 Professional x64 – recommended and preferred.
• Windows 8 Professional x 64 – supported.
• Vista Business x64 SP2 – Not supported
• XP x64 – Not supported.
• 32 bit Windows – not recommended, Support ending after 2014

RAM

• 64 bit: 8 GB, or more – recommended for large assembly work and Simulation.
• 32 bit – 4 GB – not recommended.

Video Card

• A SOLIDWORKS certified OpenGL workstation card with 2GB of RAM – recommended.
• A SOLIDWORKS certified OpenGL workstation card with 1GB of RAM – minimum requirement.
• Visit www.solidworks.com/sw/videocardtesting.html for a list of certified cards and drivers.
• Nvidia Quadro or AMD FirePro.
• Intel integrated graphics and gaming cards (Nvidia GeForce and AMD Radeon) are not certified and not recommended.
• Quadro NVS are not recommended; they are 2D only cards.
• While a certified video card is important SOLIDWORKS is a CPU bound application, you’ll see more performance gains from a faster CPU.

CPU

• Current generation Intel or AMD processor – as fast as you can afford.
• The Intel i7 Sandy Bridge series are the fastest CPU’s today.
• SOLIDWORKS will take advantage of multi core and multi CPU architectures. Typically these processors give about a 10-15% increase in performance.
• All SOLIDWORKS Simulation products take advantage multi core and multi CPU architectures.

Hard Drive

• 7200 RPM SATA minimum.
• RAID 0 configuration if drive speed is critical.
• SSD (solid state drive) if speed is critical.

Laptops

Very few laptops that have the certified graphics cards for SolidWorks:
• Dell Precision mobile workstations.
• HP EliteBook mobile workstations.
• Lenovo Thinkpad W series.

◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇◇
