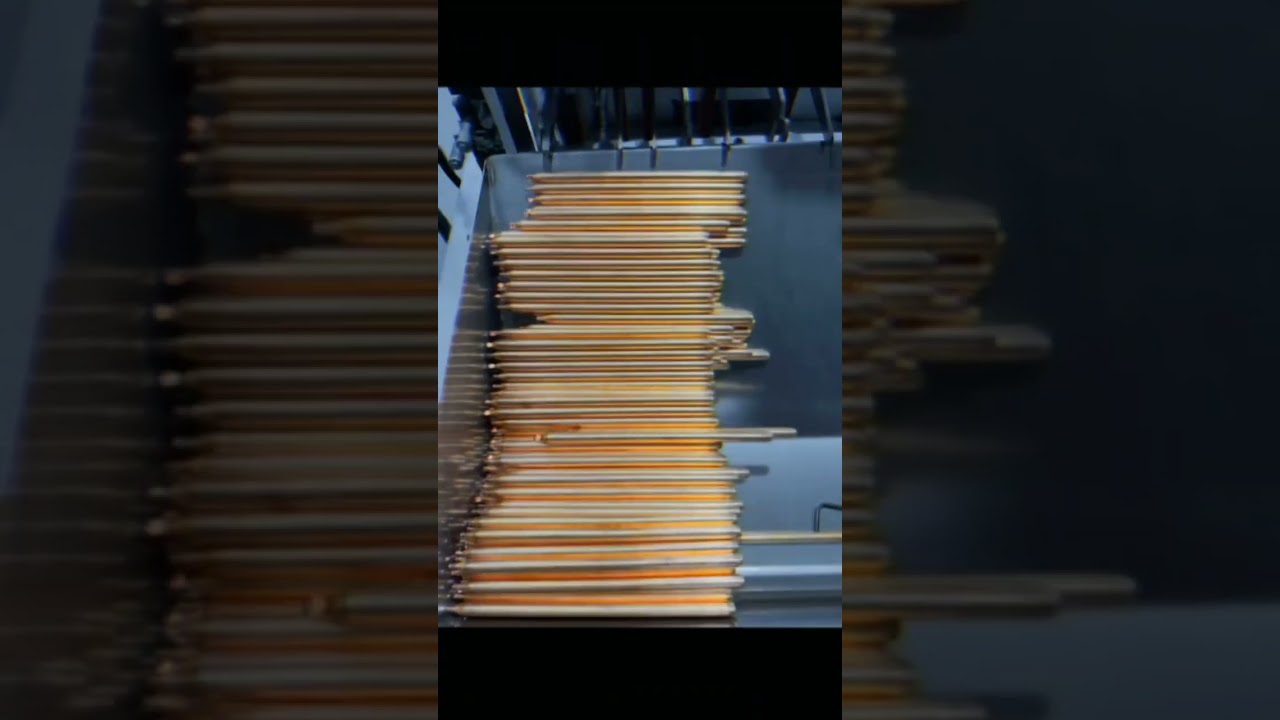

Скачать или смотреть How to make a heat pipe? Our automatic heat pipe workshop www.jacarlosworld.com

Our standand dimensions range from 3mm x 60mm to up to 12mm x 650mm. We offer several surface finishes, working fluids, and wick structures to allow customers personalized support in their thermal management project. If you do not see your particular standard heat pipe dimensions timely, please feel free to contact us directly and we will do our best to accommodate your request.

Standard Heat Pipe Characteristics

Material: Copper C102

Working Fluid: De-ionized water or Methanol

Wick Structure: Sintered Powder Metal, Groove, or Composite (Sintered Powdered Metal over Groove Wick)

Standard Heat Pipe Specifications

Diameters: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm &12mm

Lengths:

3mm dia: 60mm to 300mm
4mm dia: 60mm to 350mm
5mm dia: 65mm to 500mm
6mm dia: 70mm to 650mm
8mm dia: 75mm to 650mm
10mm dia: 80mm to 650mm
12mm dia: 85mm to 650mm

Surface Finish: Anti-oxidation surface treatment or Nickel plating

Standard Form: Round in cross-section, Straight pipe
