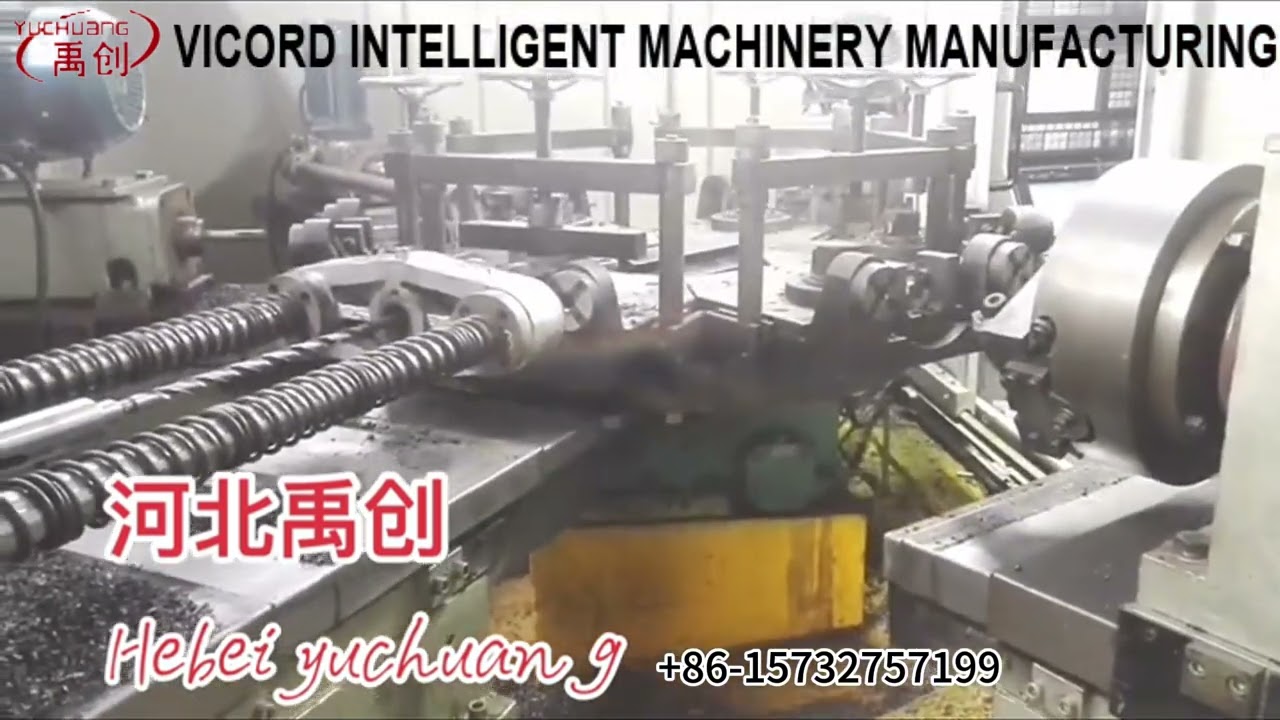

Model: 6-Station CNC Rotary Table Integrated Machining Center
Key Features:
Multi-Process Integration – Combines turning, grinding, drilling, reaming, tapping, and lathe operations in a single setup, significantly reducing cycle time and improving accuracy.

6-Station Rotary Indexing Table – Automated rotary indexing enables seamless transition between machining processes without manual repositioning.

High Precision & Efficiency – CNC-controlled axes ensure tight tolerances (±0.01mm) for butterfly valve components (disc, shaft, bore, etc.).

Automated Tool Changer (Optional) – Supports quick tool switching for uninterrupted production.

Rigid Construction – Heavy-duty cast iron base and precision guideways ensure stability during heavy cutting operations.

Machining Capabilities:
Turning: Finish valve disc profiles and bores.

Grinding: High-surface-finish machining for sealing surfaces.

Drilling & Reaming: Accurate hole machining for bolt patterns and shaft alignment.

Tapping: Thread processing for assembly fasteners.

Customizable Tooling: Adaptable for various valve sizes (DN50–DN600).

Applications:
Ideal for high-volume production of butterfly valves used in pipelines, HVAC, and industrial fluid control systems.

Advantages:
✔ Reduced Labor Costs – Minimal manual intervention.
✔ Consistent Quality – CNC precision eliminates human error.
✔ Scalable Production – Suitable for batch or continuous manufacturing.

Technical Specifications (Example):
Workpiece Diameter: Up to 600mm

Rotary Table Indexing Accuracy: ±5 arc-seconds

Spindle Speed: 50–4000 RPM (varies by process)

Control System: Siemens/Fanuc CNC

Power Supply: 380V/50Hz (3-phase)
