What products does it handle?
This mobile pallet changer is able to oper with all products: bags, boxes, vials, flasks, bottles, packs, big bags, big boxes, dry drums, cans, reels, large cartons, paper rolls, batteries etc.
How does the pallet change operation take place?
The pallet change operation takes place through the overturning and rotation of the product at 180°. In fact, the pallet turning device approaches the goods and inserts two forks under the pallet which it takes places. Then, the forks inserted inside the pallet lift up the product from the base to place it on two upper forks. In this moment the product is completely locked and safe.
Conseguently, the product plus the pallet are turned over by 90 °. Once the overturning is complete, a 180 ° rotation of the entire pallet is carried out and then it is overturned again 90 ° to the initial position. Once these operations have been carried out, the product is overturned with the pallet that can be easily picked up by the operator. The pallet change operation therefore takes place thanks to the operator who manually removes the original pallet and inserts the destination pallet.
Subsequently, to have the product with the new pallet under it, it is necessary to perform the reverse operation, overturning the product and rotating it again by 180 °. Once these operations have been completed, the product with the destination pallet is ready for the required uses.

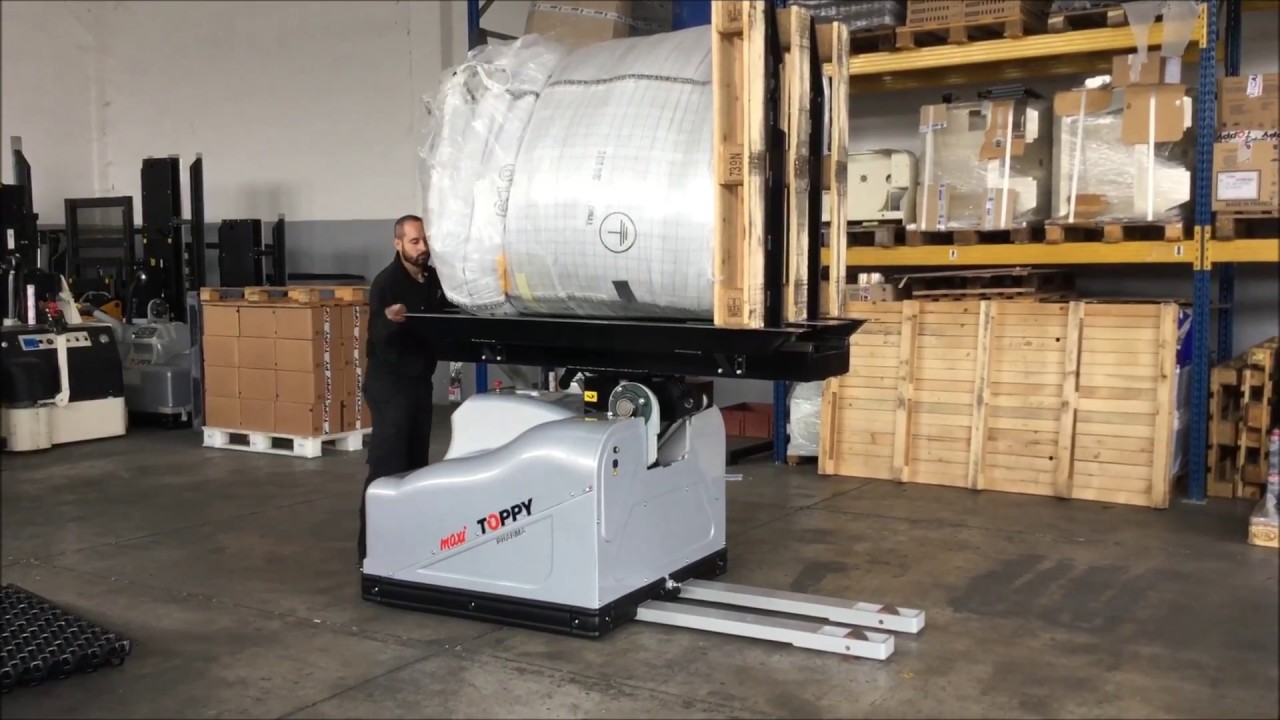

The mobile pallet turner is an electrically powered trolley with a maximum capacity of 1500 kg, operated by tiller controls and powered by a gel battery. It is an extremely versatile and compact device that allows the replacement of the pallet to be carried out in very confined spaces, thus not requiring an area to be dedicated in the plant.
The mobile bench vault is equipped with the latest generation gel batteries with a duration of 8-10 hours. It is possible to increase the duration with larger batteries. In addition, to ensure that mobile devices have a non-stop operating cycle, we provide the optional "roll-on / roll-off", a quick battery change system.
Safety
All Toppy equipment is equipped with safety systems to prevent accidents at work, with particular attention to GMP standards to ensure the appropriate quality standards.
In the specific case of mobile pallet changers, they are supplied with safety systems of braking systems for handling the trolley. In addition, an emergency button is installed which is activated to immediately stop the operation carried out at that moment. In addition, we provide optional side nets necessary, in extraordinary cases, for the product to fall during the overturning or rotation operation.
FAQ MAXI TOPPY PHARMA ADVANCE
• What types of products are suitable for this pallet changer?
This machine can operate with all products: bags, boxes, vials, flasks, bottles, packs, big bags, drums, buckets, cans, reels, large cartons, batteries, etc.
• What type of pallet is it able to work with?
It can operate with any pallet size, in particular all standard sizes and other special sizes. It is possible to use pallets of any material (wood, plastic, aluminum, iron, etc.)
• How does the pallet change operation take place?
The operation takes place through the overturning and rotation of the product on pallets at 180 °. It is possible, with a double rotation, to bring the product back to the initial position.
• How does it behave with fragile products?
During the pallet change operation, even the most delicate products are not damaged. The mosaic type of the products is not changed.
• What is the difference between "mobile" and "fixed" pallet changer?
The mobile pallet changers are very versatile systems as they do not need to reserve a specific area for the operation that can be performed in any production area. The mobile pallet changer also partially compensates for the use of the pallet truck as it allows the transport of the load inside the warehouse.
Our fixed station pallet turners, on the other hand, are used by customers who need to change a substantial number of pallets / h and can have a dedicated warehouse area for the pallet change operation.
• Can the machine be modified for specific applications?
Yes absolutely, we are able to customize the machines according to the customer's needs.
