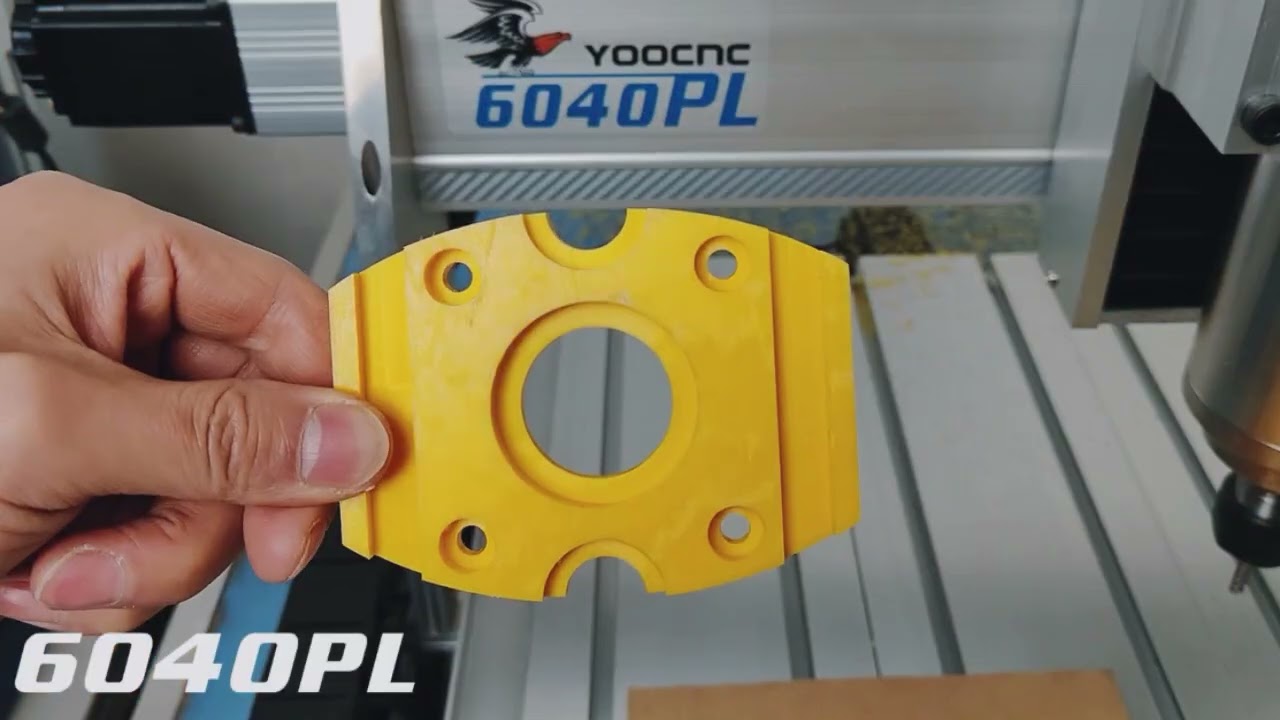

CNC Router Engraver YOOCNC 6040PL
Engraving Drilling and Milling Machine USB LYBGACNC 6040PL

Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters:
MODEL 6040PL
Attribute 2.2KW-3axis 2.2KW-4axis 1.5KW-3axis 1.5KW-4axis
Axis 3axis 4axis 3axis 4axis
Interface USB port USB port USB port USB port
Limit switch Yes yes Yes Yes
Tool auto-checking Yes Yes Yes Yes
Spindle Motor: 2.2KW VFD 2.2KW VFD 1.5KW VFD 1.5KW VFD
Weigh 52 59 51 58
Package dimension 2 boxes (630*370*460mm, 830*160*600mm)
Machine Dimensions： 880X675X610mm
Frame material： 6061 and 6063 extruded aluminum alloy
Engraving area： XYZ=575X375X100mm
Acceptable material thickness ≤ 130mm
Rail type： Linear guide (HG20)
Type of screw： Ball screw 1605, Pitch 5mm
Spindle motor： 2200W / 1500W Variable frequency spindle , 3000-24000r/min
Collet type： ER20 / ER11,1/8"(3.175mm or 6mm) Collet
Stepper motor and drive： stepping motor NEMA 23 (57BYGH76-3.0A),
High-performance DSP digital driver
Maximum operating speed： 4000mm/min (Engraving speed: 300-3000mm/min)
Repeat positioning Accuracy： 0.05mm
Software Compatability： Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code： G code/.nc/.ncc/.tab/.txt
Power Supply Input 200V~ 240VAC (50/60Hz) or 100~ 120VAC
Rotation Axis (4th Axis)
Description: 80mm 3 jaw chuck
Center height: H = 60mm
Maximum turning diameter: ≤ 110mm
Deceleration method: Planetary gear reduction
Nema23 stepper motor, 2 PHASE/ 1.8°STEP /3.5A
Maximum RPM: 160
Weight: AXL500=7.0KG
