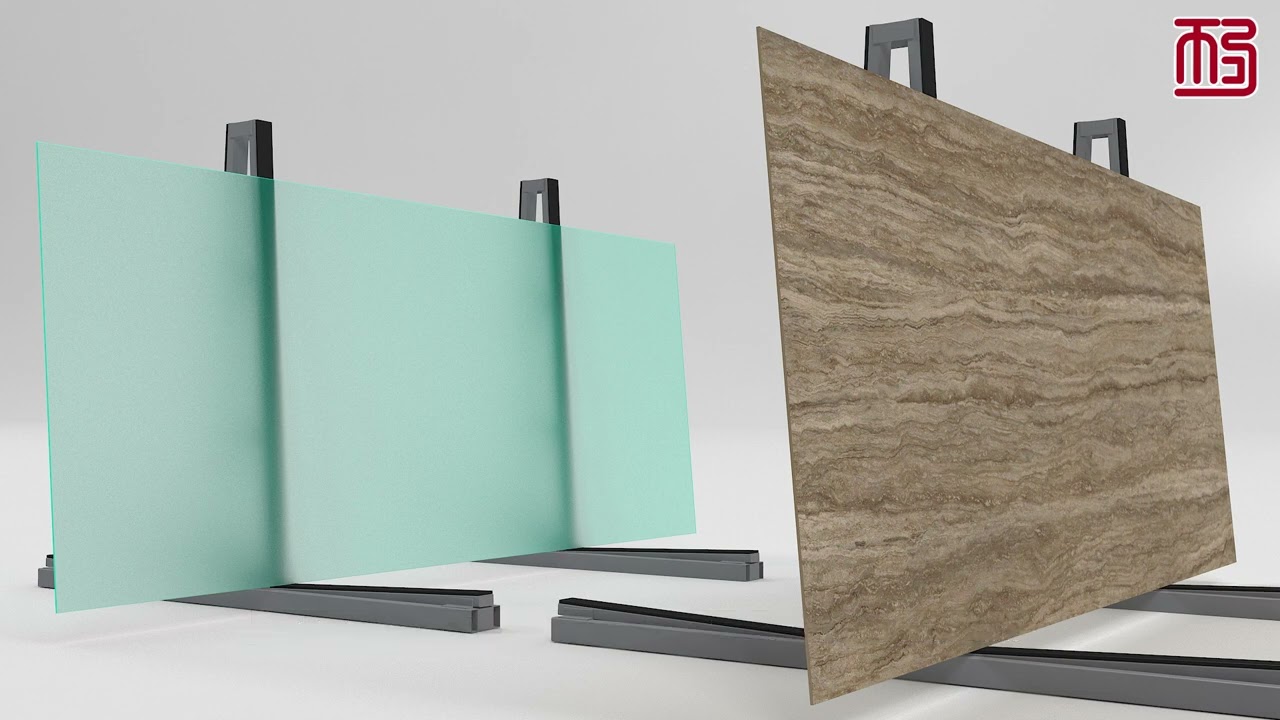

Скачать или смотреть Double-sided heavy granite transportation Frame rack for warehouse storage and display

【Cgrack】mail：[email protected]
Cgrack is composed of two parts: the main base and the A frame. The main material is a rectangular tube 100*50*4, and a C-shaped steel 100*50*4. The base is composed of two rectangular tubes side by side. The C-shaped steel carrying cargo is clamped in the middle, and the C-shaped steel is specially made. I-shaped rubber strip; A frame is made of continuous C-shaped steel and inclined downward from the apex to a certain angle. The middle is a frame with A-shaped structure formed by connecting rectangular pipes. The outer side is also equipped with I-shaped rubber strips. The opening is about 90% with the base. ° Storage space.

Cgrack is used to store large-size fragile items such as original glass and slate, and is widely used in glass manufacturing industry and slate industry;

Assemble the structure to reduce transportation costs;

Two are used as a set, or more than one can be used as a set, to achieve higher-demand bearer;

Electrostatic spraying anti-corrosion coating, anti-corrosion;

All-steel structure, pipe thickness ≥4mm, single piece maximum bearing capacity of 5000kg;

I-shaped rubber strip, which fits perfectly with C-shaped steel, and is easy to replace;
