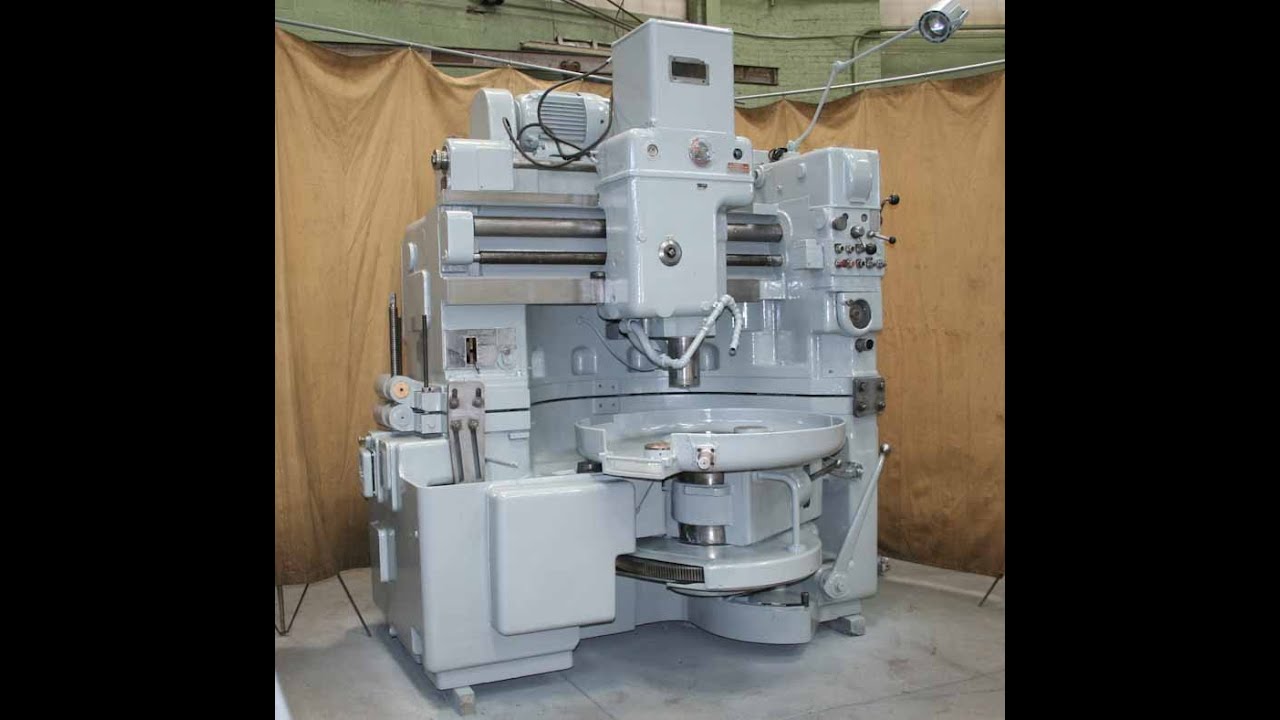

No. 36-8" Fellows Gear Shaper with Adjustable Tilting Mechanism

SPECIFICATIONS:
Maximum Pitch Diameter (External & Internal) 36 inches
Maximum Diametral Pitch (Spur) 3
Maximum Diametral Pitch (Helical) 4/5
Maximum Face Width (External & Internal) 8" (6" as configured)
Stroke Length 8" (6" as configured)
Maximum Helix Angle w/Standard Guides 45°
Maximum Outside Diameter of Fixture 40 inches
Main Motor 5HP
Range of Feeds (12) 18 - 300 SPM
Work Spindle Diameter 5 inches
Approximate Weight 17500 pounds

EQUIPPED WITH:
Adjustable Tilting Mechanism for Cutting Tapers (6" Risers when Parallel). 32" T-Slotted Face Plate. Change Gears. Indexing and Relieving Mechanism. Rotating Feed Mechanism. Spur Guide. Coolant. Automatic Lubrication. Chip Drawer. 5" Diameter Cutter Spindle Drilled and Tapped for Bolt-On Tools. As Equipped 6" Stroke.

This machine is being offered cleaned, painted, and cycled. It is being offered with a 30-Day Return Privilege and may be inspected here in our plant.

For more information please see the link below.

https://adamsmachinery.com/listing/no...
