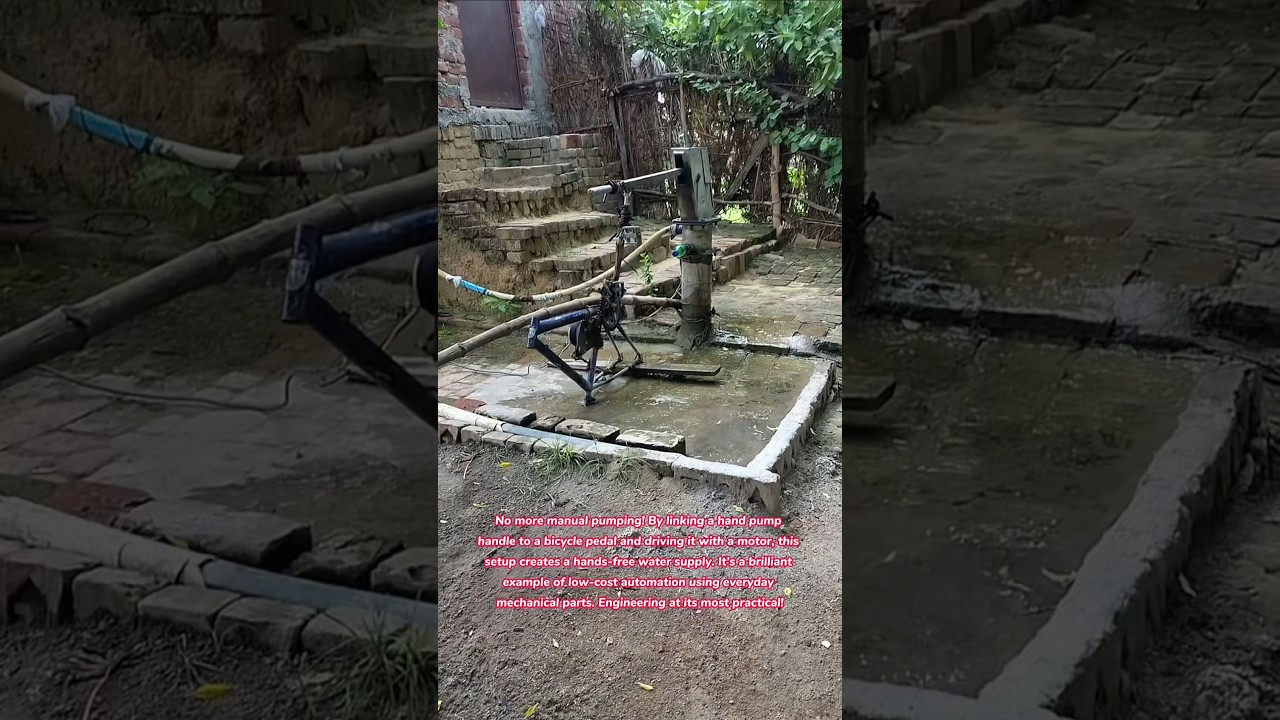

No more manual pumping! 🛠️✨ By linking a hand pump handle to a bicycle pedal and driving it with a motor, this setup creates a hands-free water supply. It’s a brilliant example of low-cost automation using everyday mechanical parts. Engineering at its most practical! 🎧🦾

​#DIYEngineering #AutomatedPump #MechanicalHacks #BicycleParts #WaterPump #SmartInvention #ReciprocatingMotion #RuralEngineering #SustainableTech #SatisfyingMachinery

​The Mechanics of the Automated Hand Pump

​Handle-to-Pedal Linkage: A rigid metal or wooden rod connects the pump's handle to one of the bicycle pedals, effectively turning the pedal's circular path into the pump's vertical stroke.

​Motor-Driven Rotation: An electric motor is connected to the bicycle's chainring or sprocket, providing the constant torque needed to rotate the pedals.

​Rotary to Reciprocating Motion: As the motor turns the bicycle pedal, the connecting rod pushes the pump handle up and down in a rhythmic, continuous motion.

​Variable Speed Control: By adjusting the motor's speed or changing the bicycle's gear ratio, the operator can control how many liters of water are pumped per minute.

​Mechanical Advantage: The length of the bicycle pedal arm acts as a lever, reducing the amount of force the motor needs to exert to pull the heavy pump piston upward.


Pro Tips for DIY Pump Automation
​Optimizing Mechanical Efficiency

​Grease Your Joints: Regularly lubricate the pivot points on the pump handle and the connecting rod to reduce friction and prevent the motor from overheating.

​Align the Linkage: Ensure the connecting rod is perfectly vertical at the peak of the pump stroke to prevent lateral stress that could bend the pump's internal piston rod.

​Counterweighting: If the pump is particularly heavy, adding a small counterweight to the opposite bicycle pedal can help balance the load and make the rotation smoother for the motor.

​Secure the Base: Because the reciprocating motion creates significant vibration, ensure both the pump and the bicycle frame are bolted firmly to a concrete or heavy timber base.
