Скачать или смотреть How to Fix 'No Power Supply Specified' Error in Proteus - Step-by-Step Tutorial /

I HOPE THESE VIDEO IS HELP FULL FOR YOU
SUBSCRIBE TO GET SOME MORE INFORMATION

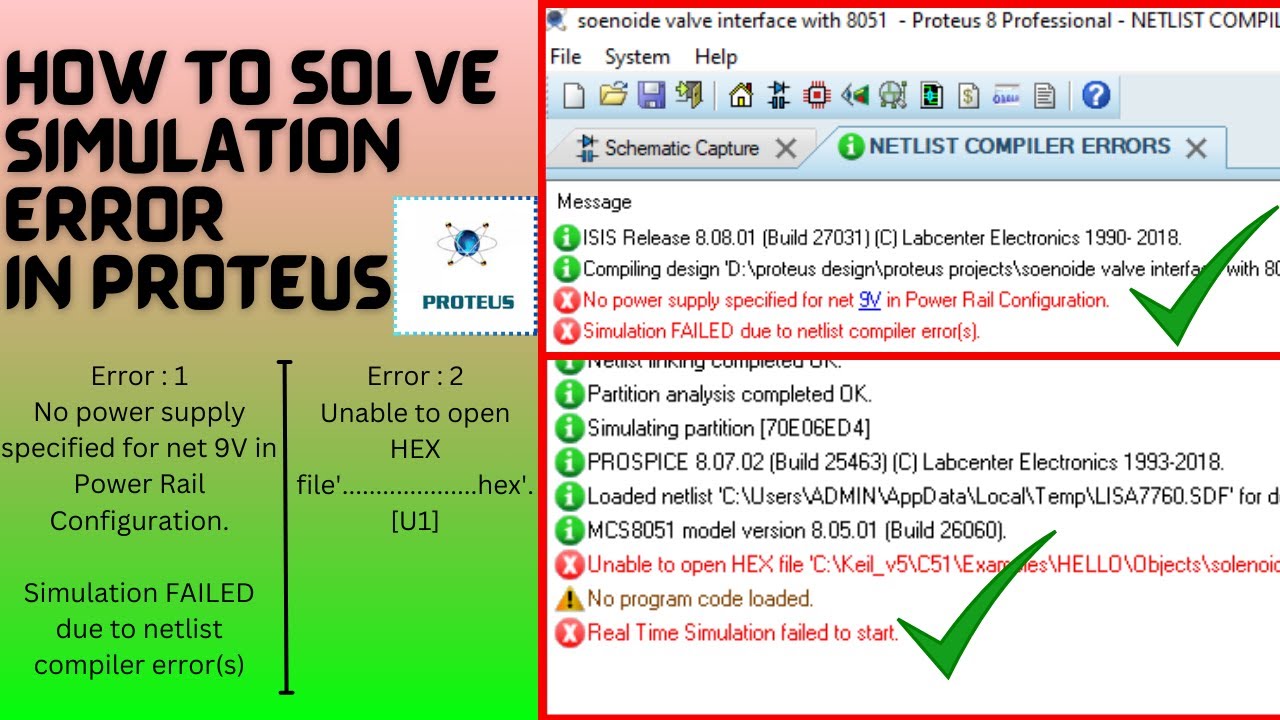

ERROR WE GOT :::
No power supply specified for net 9V in Power Rail Configuration.

Simulation FAILED due to netlist compiler error(s).

Unable to open HEX file '..\..\..\Keil_v5\C51\Examples\HELLO\Objects\solenoide wirth 8051.hex'. [U1]

To resolve the "Unable to open HEX file" error in Proteus, you can follow these steps to ensure that the HEX file is correctly loaded and linked in your simulation. Here is a step-by-step guide:

Check File Path:

Ensure that the HEX file is located in a directory that is easily accessible and that the path does not contain any special characters or spaces.
Load HEX File in Proteus:

Double-click on the microcontroller in your schematic to open its properties.
In the Program File section, click the Browse button.
Navigate to the location of your HEX file and select it.
Click OK to confirm.
Verify File Compatibility:

Make sure that the HEX file is compatible with the microcontroller you are using in your Proteus simulation.
Check File Permissions:

Ensure that the HEX file is not read-only and that you have sufficient permissions to access it.
Recompile the HEX File:

If the HEX file might be corrupted, try recompiling your source code to generate a new HEX file.

To solve the "No power supply specified for net 9V in Power Rail Configuration" error in Proteus, you need to configure the power supply for the specific net in your circuit. Here is a step-by-step guide:

Open Power Rail Configuration:

Go to Design in the menu bar.
Select Configure Power Rails.
Add a New Power Rail:

Click Add to create a new power rail.
In the New Power Rail dialog, enter the name of the power rail (e.g., 9V).
Assign Voltage Level:

Set the voltage level for the new power rail (e.g., 9V).
Map Net to Power Rail:

In the Net List tab, find the net that is causing the error (e.g., 9V).
Map this net to the newly created power rail.
Apply and Close:

Click Apply and then OK to close the dialog.
Verify the Configuration:

Run a design rule check (DRC) to ensure that the error has been resolved.

---------
