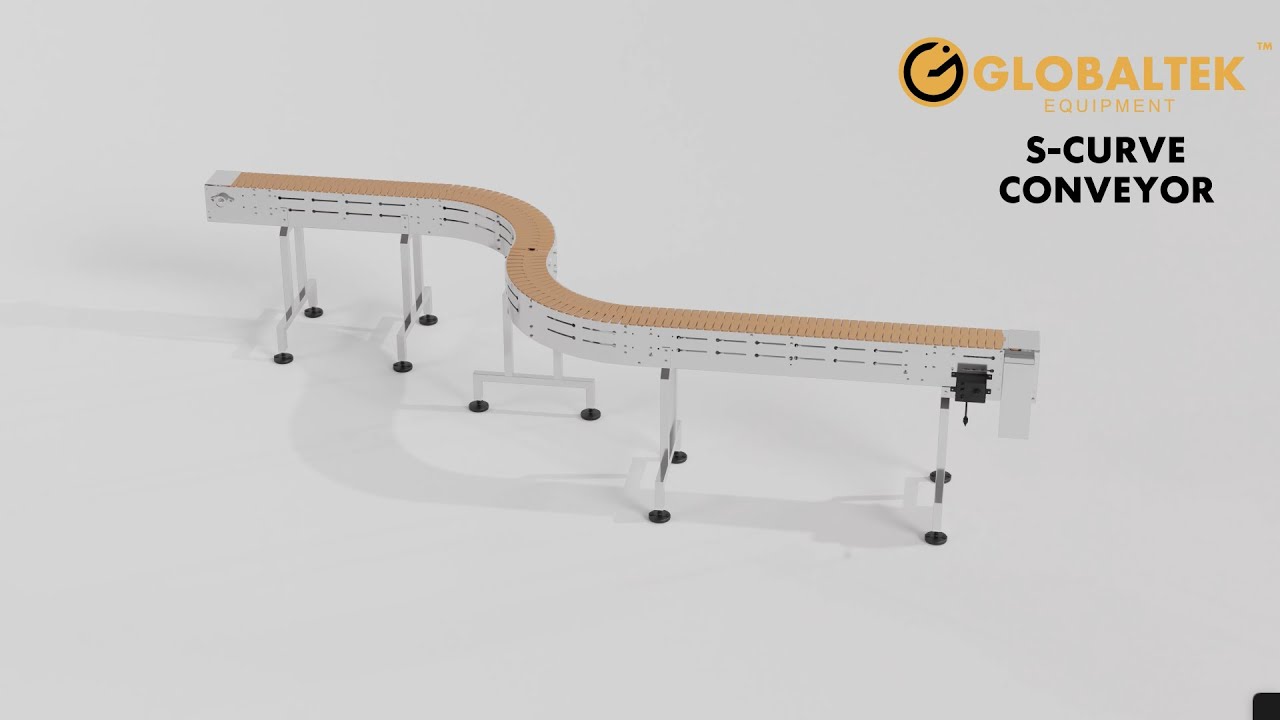

The GLOBALTEK Stainless Steel S-Shaped Curved Conveyor Line System features a Made in USA Bodine motor and variable speed control. This conveyor is ideal to maximize space in a production line and adjust to corners. They are used for perpendicular product transfers without disturbing the flow and orientation of other machines in your production line.

MAIN FEATURES

MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
STAINLESS STEEL FRAME
UP TO 200 FT/MIN
DUAL POST STAINLESS STEEL WELDED BASE (IDEAL FOR LIGHTER AND HEAVIER LOADS)
ADJUSTABLE LEVELING PADS
TRANSFER END PLATES FOR CONTAINER TRANSITIONING
TOOLLESS ADJUSTABLE RAIL BRACKETS
LOW FRICTION ACETAL (DELRIN) TAB BELT
BELT DRIVEN BOTTOM MOUNT MOTOR WITH STAINLESS STEEL COVER
UHMW LUBRICATED CHAIN TRACK SYSTEM
BODINE DC DRIVE


TECHNICAL DATA

STANDARD 24” RADIUS CURVE
CURVE AVAILABLE RIGHT AND LEFT TURN
STRAIGHT SECTIONS LENGTH MADE TO ORDER
CONVEYOR STANDARD WIDTH: 4.5”
BODINE DC MOTOR, 3/8 HP, 83 RPM, 248 LB/IN
115 VOLTS / 1 PH / 60 HZ
FLOOR TO BELT HEIGHT 35” TO 40”
ADJUSTABLE GUIDE RAIL OPENING: 0” TO 5/8” WIDER THAN BELT
ADJUSTABLE GUIDE RAIL HEIGHT: 0”-5”


OPTIONAL FEATURES

HAND PACK STATION
DUAL GUIDE RAIL
4” STAINLESS STEEL GUIDE RAIL
STAINLESS STEEL CHAIN, MATTOP BELT, FLEXIBLE BELT
SIDE TRANSFER PLATE CONVEYOR TO CONVEYOR
WASH DOWN MOTOR AND SPEED CONTROL
X-PROOF MOTOR AND SPEED CONTROL
LOCKING CASTERS


WARRANTY

12 MONTHS (LIMITED WARRANTY)
*This item is a custom project. Components are in stock but project must go through engineering prior to assembly.*

GLOBALTEK -
CONTACT FOR PRICE
CODE: CON-90L-45
Availability: In stock
Customization is available. Contact us here.
