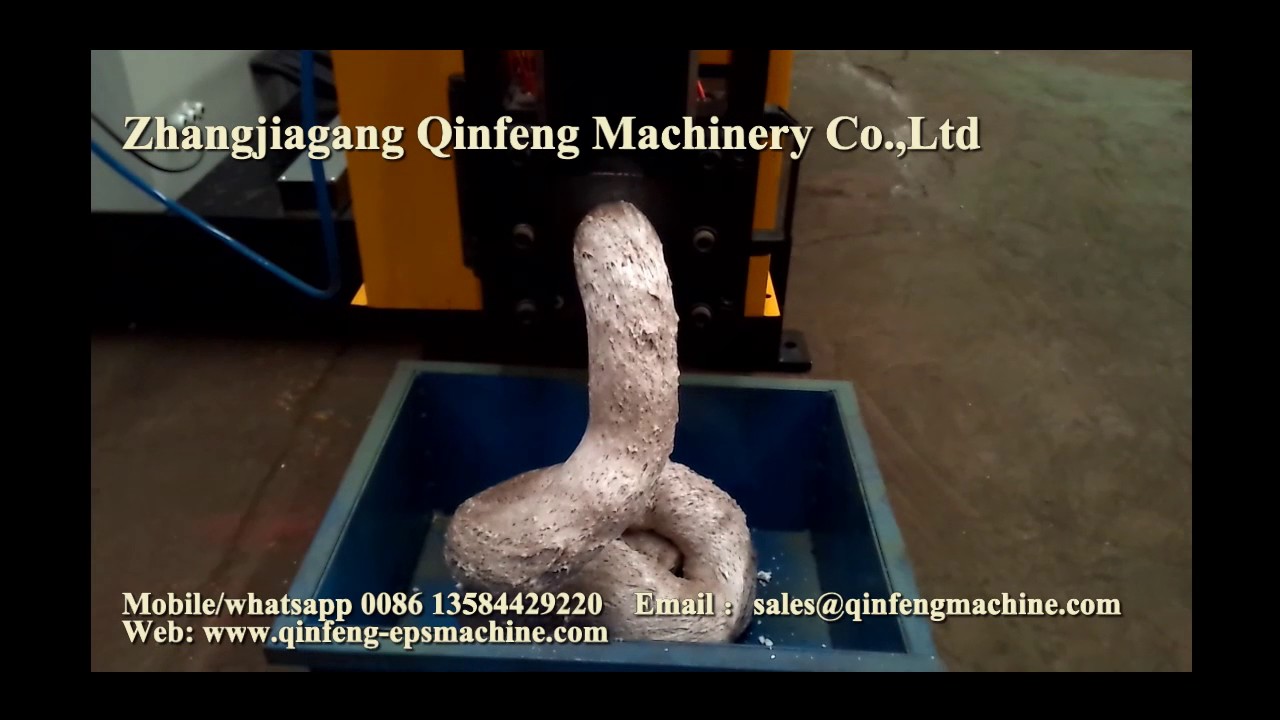

Скачать или смотреть CF HM200 EPS hot melting recycling compacting machine melter foam densifier compactor

Zhangjiagang Qinfeng Machinery Co.,Ltd
Address：NO.358 Jiangjin road,Jinfeng Town,Zhangjiagang city,Jiangsu,PR
Tel：0086-512 58200823
Fax：0086-512 58200820
Cellphone/Whatsapp: 0086-13584429220
Web: www.qinfeng-epsmachine.com
Email：[email protected]

Polystyrene Hot Melting Machine
polystyrene-hot-melting-machine-2
Google + Facebook Tweet LinkedIn Pinterest Email Sina
Introduction
The Polystyrene Hot Melting Machine uses two shaft crushing blades, two parallel blade shafts symmetrically fixed with blade ，the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle。
polystyrene-hot-melting-machine-6
When the two Polystyrene Hot Melting Machine shaft crushing blades are working，two parallel blade shafts with different rotation direction begin to rotate, form a wave down the grip, so that the material constant downward movement, after going through the cutting blade, and broken into smaller blocks of matter.
polystyrene-hot-melting-machine-7
Qinfeng Machinery is a EPS Melter Machine manufacturer and supplier in China which can provide you with high quality of Polystyrene Hot Melting Machine.
Polystyrene Hot Melting Machine CF-HM-200
Screw diameter φ197 mm
Screw distance 150 mm
Screw speed 110 r/min
Capacity 100～120Kg/h
Screen hole diameter 40mm
Extrusion center height 326 mm
Motor power 15KW
Heating power 3 zones total 10kw
Crusher motor power 2.2kwx2
Crusher blades quatity Twin screw 9sets+10sets
Crusher rotation speed 100r/m
Size L×W×H 2800×1580×1950
Weight 1400 Kg
