offer consists of:

4-clamp binder BQ-470, Horizon blast-pipe system D
PUR glue system incl. 2kg pre melter

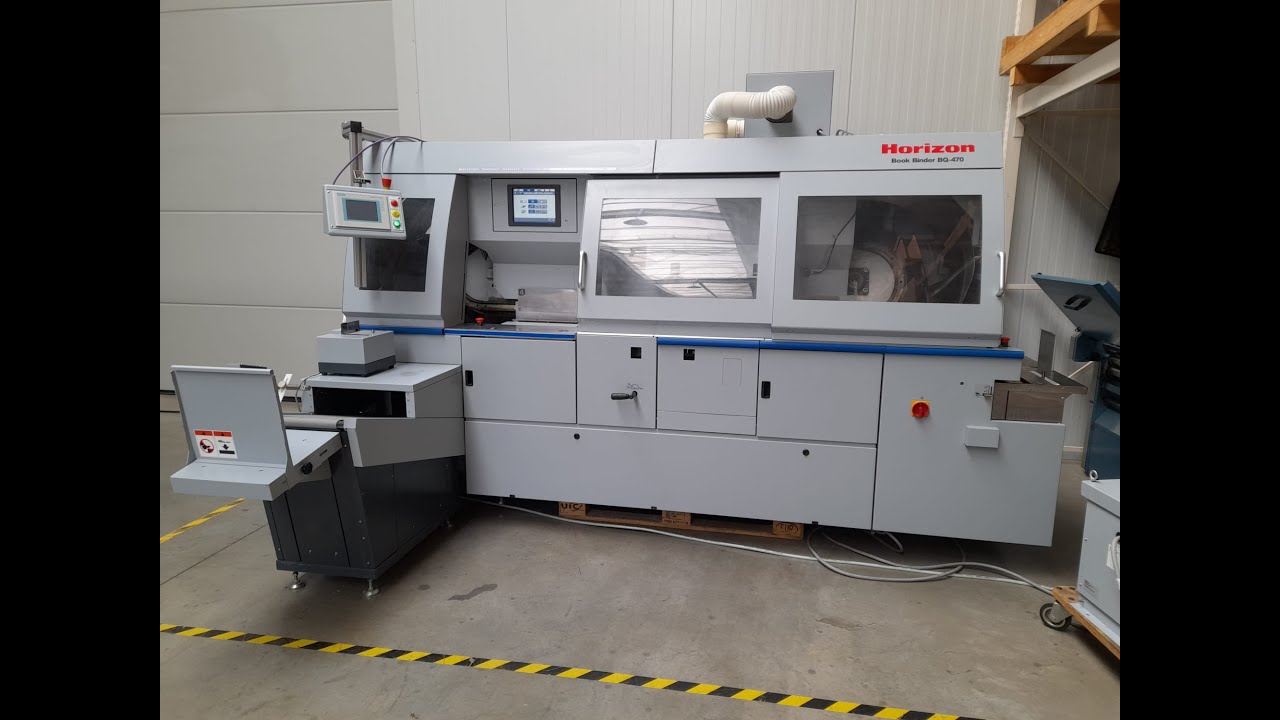

Horizon BQ-470 PUR-D
perfect binder


Installation for production of foto-books; soft- or hardcover

Details:
BQ-470, PUR-D
Horizon PUR-blast pipe

size:
booksize: min. 145x105mm; max. 320x320mm
cover: min. 1mm; max. 65mm
cover size: min. 225x135mm; max. 660x320mm

Output: max. 800 cycles/h
grammage: book: 60-135g/sqm / cover: 80-300g/sqm
pile height cover: max.150mm

creasing:
4- creasing positive/negative
2-creasing
binding capacity:
with 2kg PUR binding, size A4:
approx. 6.500 pcs with 2mm book thickness and 0,5mm application;
approx. 650 pcs with 20mm book thickness and 0,5mm application
Barcode-control BCC-470 for verification of envelope with book
air supplying device: 6 bar dry air(max. 8 bar); connection G1/8"

electrical connection:
400V rotary current 16A, 6,5kW for adhesive binder and 400V rotary current 16A, 6,0 kW for melting unit

gluing:
PUR- Hotmelt (plastic bag, Ø 126mm) for back side gluing
EVA- Hotmelt for side gluing
temperature: PUR til 130°C; EVA 120-200°C
heating up time approx. 50 min.

weight: 2.196kg
(1.750kg Maschine, 15kg accessories, 99kg delivery, 110kg Absaugung, 222kg pre melter)


We can also organize the following for you:

packaging, loading, transport ( by ship or plane) including customs
