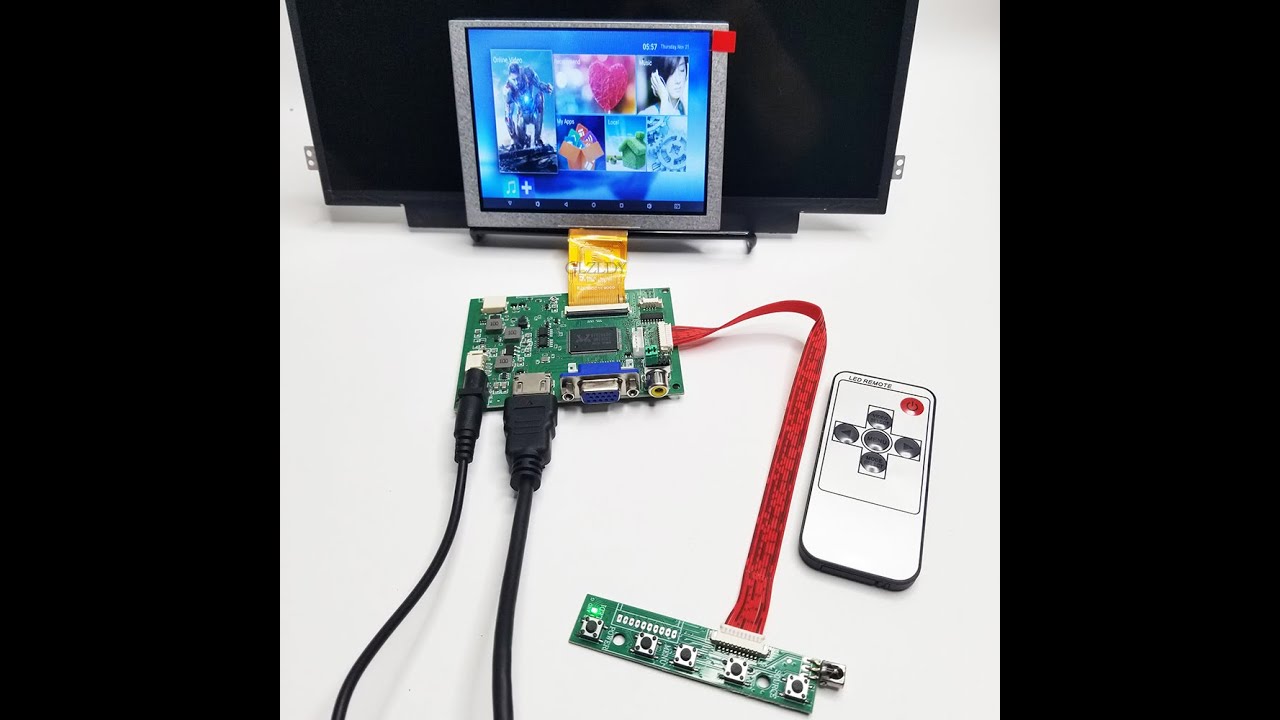

Скачать или смотреть 40PIN LVDS 50PIN TTL FPC universal driverless LCD driver board HDMI VGA AV AT070TN94 Reverse

Adjustable brightness 200-1000 brightness LCD driver board 40PIN 50PIN LCD screen full support Suitable for outdoor drone vehicle display industrial equipment industrial grade and so on Support crosshair application Can support reverse priority ！！！！！

The driver can support more than 12 different LCD screen resolution setting
1. 1 VGA signal input
2. 2 AV signal inputs
3. 1 HDMI signal input, IC support HDMI1.2
4. 1 reverse signal input
5. Support wide voltage input, can work normally in the range of 4.5V ~ 18V.
6. Support TTL50PIN definition
7. Driver board integrated LCD screen LED backlight driver board.
8. Support 40PIN-LVDS definition
9. Standard key interface, and support for 2-color LED indicator display
10, support for TTL signal output, can support: ZJ050NA-08C, EJ050NA-08C, AT070TN92, AT065TN14, AT080TN52, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94, etc., TTL LCD band Universal 50PIN interface
With PCB800602 adapter board, can effectively support, HannStar, AUO, Tianji, Jingneng, General and other 60 pin definition of the TTL interface, such as: HSD070IDW1, A070VW04, A080SN01, A104SN01, HSD084IDW1 and so on.
11, 40 PIN definition support the following LCD screen
EJ070NA01-1024 x600 resolution
EJ080NA04B - 1024 x768 resolution
ZJ070NA01, general-purpose 40PIN high-resolution LCD screen
EJ101NA-01G
EJ080NA-01E
EJ080NA-04-c etc.
12, with PCB800100, can also support 4.3, 5, 6, 7 inches, 40PIN general-purpose screen, according to the definition of AT0543TN24V
13, the maximum output display resolution of the driver board is 1920X1080, more than 1440X900 display resolution, you need to check the IC's operating status, increase the heat sink to reduce the IC's operating temperature)
14. Press and hold the reverse control, and display on AV2, reverse voltage support input voltage within 40V
