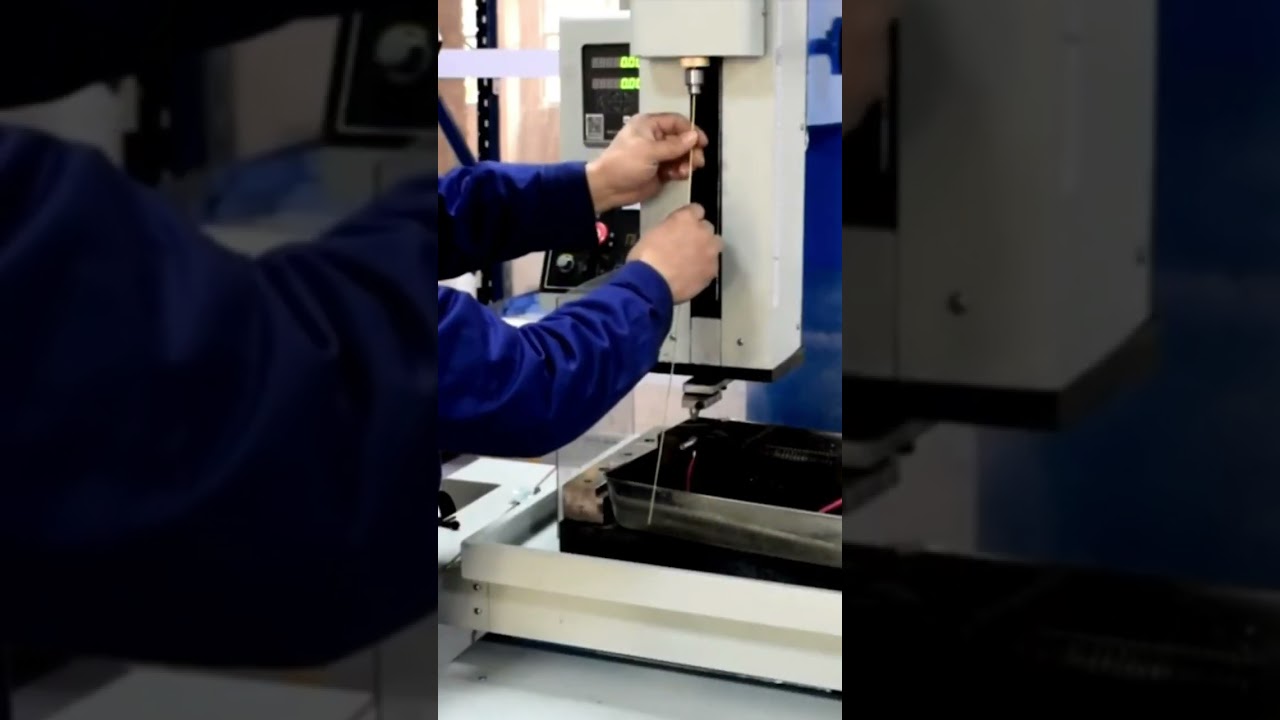

Скачать или смотреть MB-2000C Portable EDM Drilling Machine 0.5-3mm Mirco hole EDM Driller Broken Drill or Tip Remover

#drillingmachine#edmmachine#drillingmachinemetal
Tel: +1 (312) 273-8679 [email protected]
Luoyang Xincheng Precision Machinery Co., Ltd.
The MB-2000C EDM punching machine utilizes the principle of electric erosion to melt and corrode the metal section by generating electric sparks to achieve the purpose of perforating on the metal workpiece.The device using brass electrode tube as a tool electrode,using high-pressure water to cool and slag the processing point and it can process a deep hole between Φ0.5 and Φ3.0 mm on a metal workpiece of any size and shape.It can also be used to remove the broken drills, taps, etc., without damaging the original hole threads.
The device adopts a mobile chassis design, which is convenient for mobile use; a modular integrated circuit system is integrated in the chassis, thereby greatly reducing the volume of the original large-scale equipment; the touch screen control is simpler, convenient to use, stable and reliable;The portable magnetic base can be conveniently placed and fixed at any position of the workpiece for a variety of working conditions. It can be directly inserted into the hole from the inclined surface, curved surface and tapered surface, so that the perforating machine of this model can be applied more widely.
Technical Parameter:

Power Box Input Voltage: AC220V/110V, 50/60Hz
Input Power: 1500W
Water pump input voltage: AC220V/110V, 50/60Hz
Max. Processing Depth: 300mm(Φ1mm brass rod)
Electrode Diameter: 0.3-3mm
Max.Travel of Work Head: 300mm
Manual Travel: 300mm
Power Box Size: 540*275*500 mm (22kg)
Work Head Size: 375*155*690 mm (23kg)
Water Pump Size: 600*300*460 mm (20kg)
G.W: 75 kg
