Customized non-standard flange large tube sheet
Large diameter stainless steel pipe sheet 316 material tube plate
OD: 40-6000MM,customized
Thickness: 5mm-300mm,customized
Material: Stainless Steel,Titanium alloy,copper alloy,carbon steel,nickel alloy, etc
Applications: Used in heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators ......

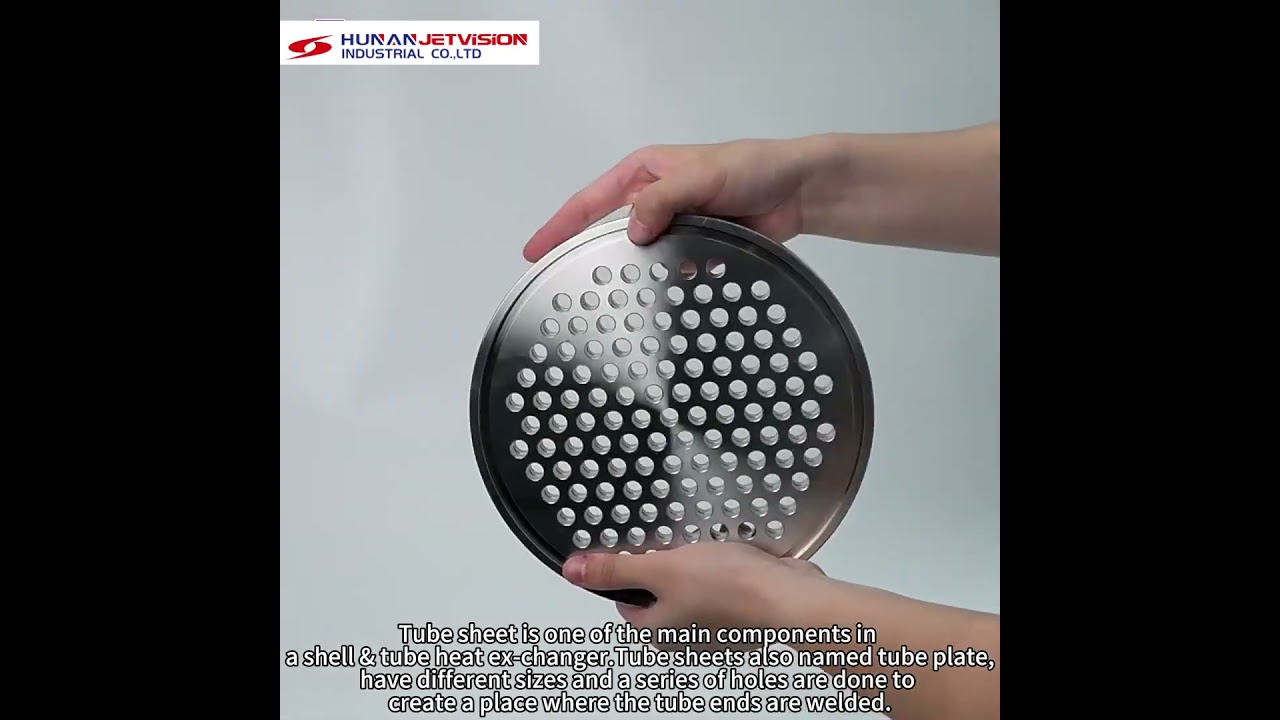

Tube sheet is one of the main components in a shell & tube heat exchanger.Tube sheets also named tube plate,have holes drilled to accept a series of tubes inside of an enclosed tubular pressure vessel.

The tube sheet itself serves as a supporting element in heat exchangers and boilers. Tube sheets have different sizes and a series of holes are done to create a place where the tube ends are welded.Also called tube plate.There are two types: floating tube sheet and stationary tube sheet.

Standard and material grade
Forged Tube sheets, A182 F304/304L, A182 F316/316L, A182 F321, A182 F310S, A182 F347H,
A182 F316Ti, 317L, 904L, 1.4301,1.4307, 1.4401, 1.4571, 1.4541, 254Mo and etc.
Duplex stainless steel Tube sheets: UNS31803,SAF2205,UNS32205,UNS31500,UNS32750,UNS32760, 1.4462, 1.4410, 1.4501 and etc
Stainless steel Tube sheets ASTM A240 304 304L 316 316L , 904L
Titanium Tube sheets ASTM B265 GR1、GR2、GR3、GR5、GR7、GR12. tube sheet/baffle plate
Forged Titanium Tube sheets ASTM B381 GR F1、GR F2、GR F3、GR F5、GR F7、GR F12. tube sheet BT1-00、BT1-0、BT1-2
Carbon steel tube sheet: A105, SA266.GR2，A350LF2, Q235, St37, St45.8, A42CP, E24 , A516 Gr60, A516 Gr 70,S235JR
Nickel alloy tube sheet:
inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy tube sheet: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc
Copper nickel tube sheet SB171 C70600,C71500 TUBESHEET/BAFFLE/FLANGE.
Naval Brass tube sheet SB171 C46400/C46500 TUBESHEET/BAFFLE/FLANGE
Aluminium bronze tube sheet
SB171 C61300/C61400/C63000 TUBESHEET/BAFFLE/FLANGE
Brass tube sheet, baffle ,flange.
Cladding tube sheet SA516.GR70+SB171 C71500 Carbon steel+copper alloy cladding tube sheet. SA516.GR70+ASTM B265 GR2 Carbon steel+Titanium cladding tube sheet.
SA240 316L +ASTM B265 GR2 carbon steel+Duplex cladding tube sheet.

Tube plate is widely used in tubular heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, condensers, evaporators and other products. The metal material makes it not only rigid, but also has great heat conduction performance. The precision of tube plate processing, especially the tolerance of hole spacing and diameter, perpendicularity, and finish greatly affect the assembly and performance of the equipment listed above.

Do you interest the tube sheet?
Any requirement for heat exchanger parts, please contact: +86 18274962466 (whatsapp)
email: [email protected]
web: www.jetvisionengineering.com
