MAKElog #14:

The Brushless Gimbal together with the Brushless gimbal Controller (BGC, AlexMOS, SimpleBGC, etc.) is a good deal to get camera stabilization on a quadrocopter.

Unfortunately the Gimbal does not offer downward facing (bird's eye perspective) off the shelf, so 3 easy modifications are necessary:

1. Enable mechanical full tilt movement
2. Simulate tilted cam position by installing the MEMS accelerometer sensor on a 45° wedge (e.g. made from cardboard)
3. Get gimbal balanced

These steps are explained in the video.

With these modifications the camera view can be changed from horizontal view to downward facing view during flight.

The 6pin Atmel ISP connector at the brushless gimbal controller was added to reanimate the gimbal controller after it showed no function.

____________________________________________________

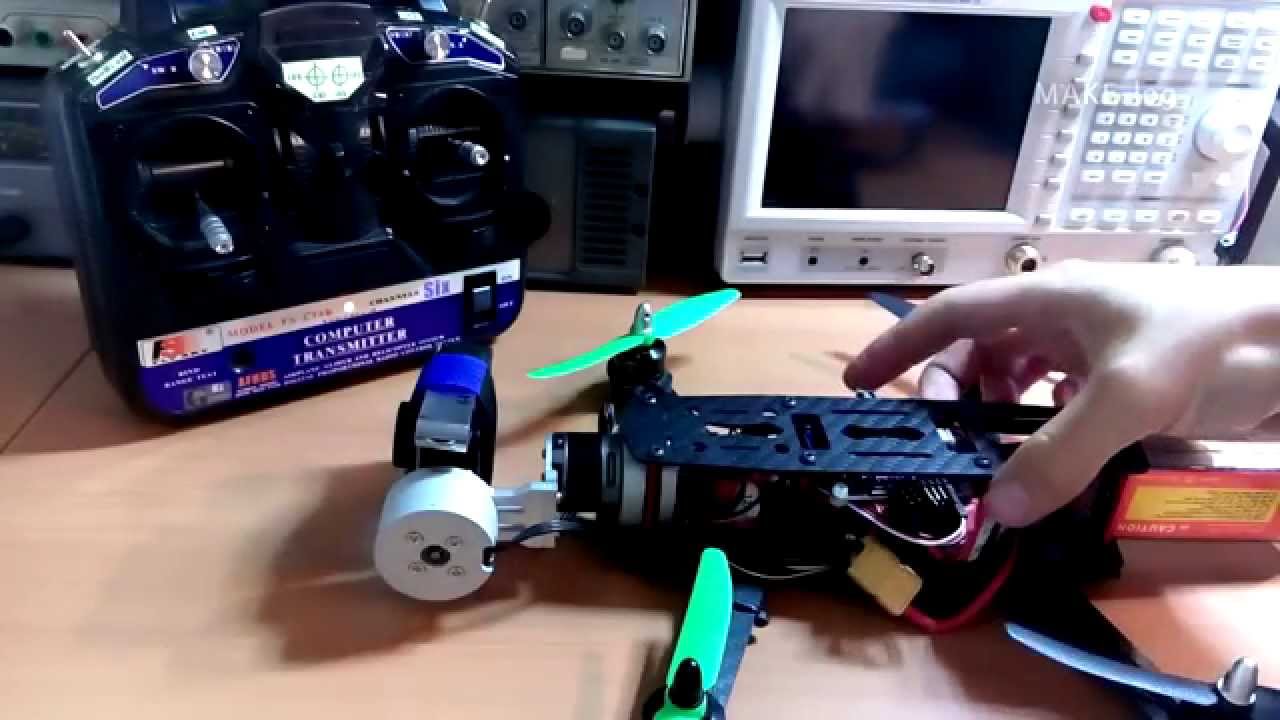

The Quadrocopter used is a QAV250 Mini Quadcopter
glassy carbon fiber frame
Wheelbase: 250mm
CC3D Flight Controller (OpenPilot UAV autopilot platform)
MT1806 2280kv Brushless Motor
KV: 2280
Max Trust: 460g
No. of cell: 2-3S
Framework: 12N14P
SimonK 12A ESC
Constant Current: 12A
Input Voltage: 1-3 cell Lipoly
BEC: Yes (linear) [Remove middle wire to dissable]
BEC Output: 5V/1A
PWM: 8 KHz
5030 propeller (black)
5030 propeller (green)
