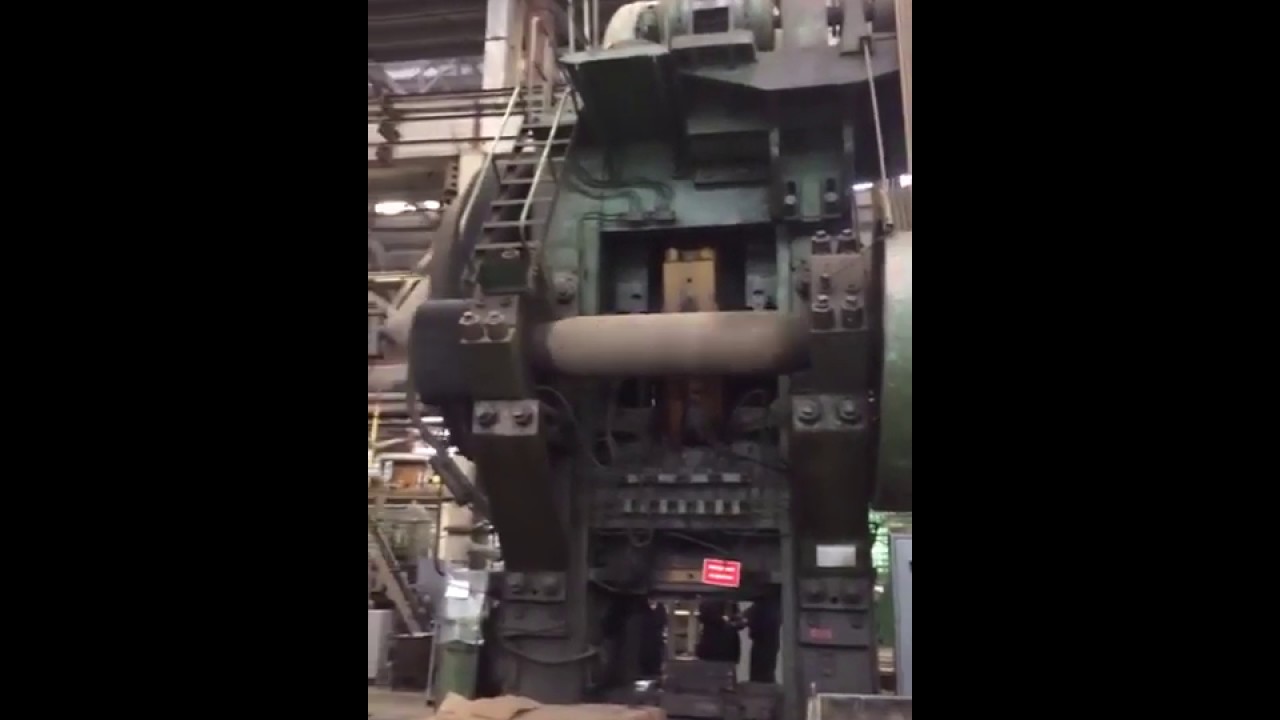

NKMZ PKKSH 4000 Kramatorsk K8546 4000 tons Press Hot Forging - Dabrox.com

https://dabrox.com/hot-forging-press-...

All details of this offer (condition, price, delivery terms) will be received from our manager by clicking "Request Price". We can also help with finding other equipment for your needs.

Nominal force 4000 ton
Slide stroke 400 mm
Number of slide continuous
strokes per minute 50
Shut height (distance between bed in top position
and slide bolster plate, stroke down) 1000 mm
Bed adjustment 15 mm
Distance between uprights clear 1660
Slide dimensions
— left-to-right 1420 mm
— front-to-back 1420 mm
Bed dimensions
— left-to-right 1570 mm
— front-to-back 1620 mm
Upper knockout stroke 60 mm
Down knockout stroke 125 mm
Uprights openings dimensions
— width 770 mm
— height 995 mm
Main motor power 185 kW
Overall dimensions
— left-to-right 6100 mm
— front-to-back 4710 mm
— height 8680 mm
Height above floor level 6820
Mass 400 ton

#PRESSES #FORGING #K8546
