YX-VME series vacuum emulsifier is professionally designed according to the ointment manufacturing processof cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler,vacuum emulsifying and blending boiler, vacuum pump, hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
The vacuum emulsifier equipment can be devided into two sorts by the heating way: Electric heating with stainless steel rods vacuum mixer; Steam heating with generator boiler vacuum mixer.
Advantage:
This Emulsion series machine mixer adopt two speed on one shaft. Hydraulic System,homogenizer speed:0—3500 r/min (speed controlled),stirring speed:0—63 r/min(speed controlled).Vacuum suck material. all the process under vacuum state.CIP system is provided, all contact material parts adopt SUS316L,lnner jacket polishing reach 300EMSH (sanitation grade)vacuum Dump adopt German Nash- elmo (former Siemens)technology.Meet GMP requirement.
Complete process of mixing, dispersing, emulsifying, homogenizing, vacuum, heating and cooling in one unit
Working capacity from 50L to 2000L
Suitable for cream and emulsions of 10,000~50,000cps viscosity
Internal emulsifying and homogenizing by top mounted batch homogeniser

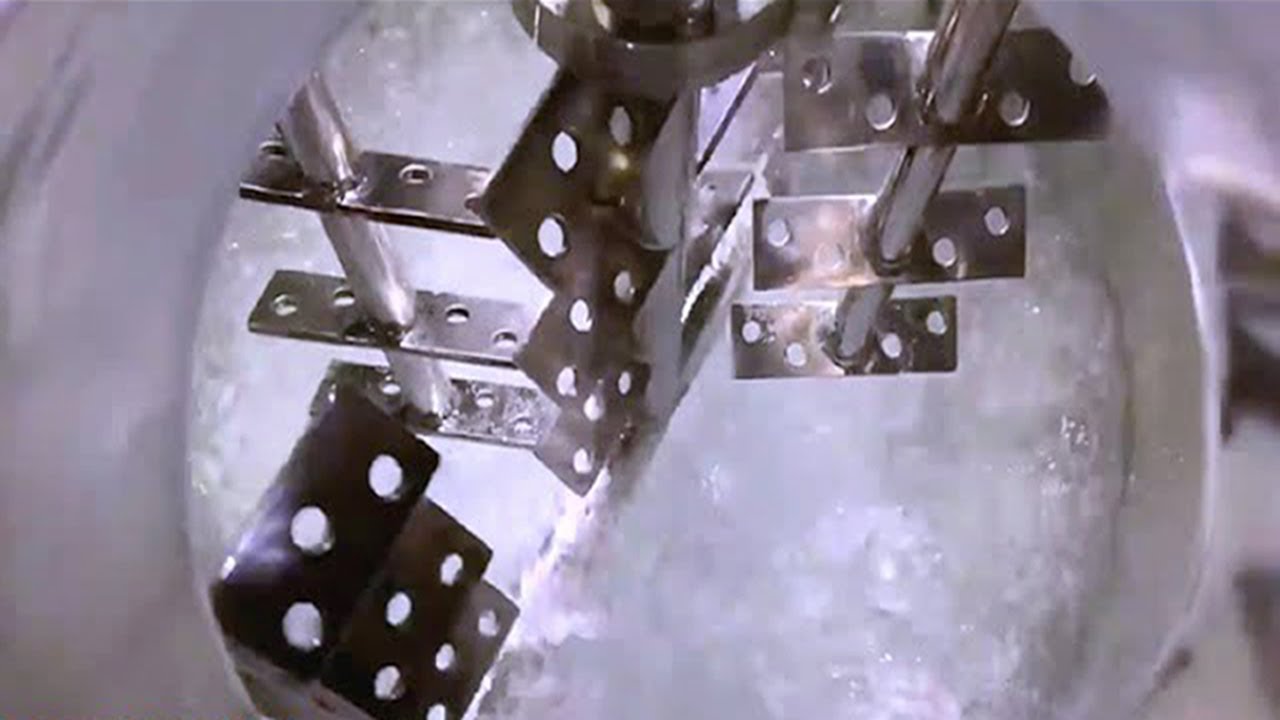

Contra mixing system of center agitator and wall scraper
Outer frame agitator has triangle design for enhanced mixing
Variable speed for homogenizer and agitators
Oil hydraulic lifting system for easy cleaning and maintenance
Double jackets for heating and cooling
Different jacket designs available for steam and electric heating
Double temperature probes and controllers for electrical heating in main emulsification machine
Vacuum system to take out the air bubbles during mixing and to transfer the ingredients
Compressed air to discharge the finished cream
Tilting system for discharging finished product and easy cleaning
Multiple safety protection devices for vacuum, hydraulic pump and workers
All contact parts are made of SS316L and mirror polished
Spray ball is equipped to connect customer’s CIP
The specifications of the vacuum emulsification equipment comply with cGMP regulations
Push buttons control panel for easy operation
Power supply of 380V, 50Hz, 3 Phase
