The 700c 48V 1000W electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
main Features:
.. Rim: 700c / 622 double wall Alloy . tire: 700 × 18C / 20C / 23C / 25C / 28C / 32C / 35C / 40C - 29er .
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
.. Spoke: 12 gauge / 188mm Length × 36 pcs

.. Engine: Bldc hub motor
... Voltage: 48V
... Power: 1000W
... Efficiency: 90.5%
... Max speed: 69.9 kmh -- 43.4mph No Load Default .Optional other speed: 43mph or 25mph,15mph....
... Max speed: about 50kmh ride on flat road
... Mechanical brake: Disk or V .Default.
. If your bike use drum brake, also can make.Please contact us: [email protected] .
... Cable location: shaft end , LEFT
... Cable length:160cm / 63" . 2mm high temperature phase wire .
... Install: spacing of 100mm fork .Default.
. If your front fork dropout isn't 100mm,also can make.Please contact us. .
... Noise: . 60 db
... Surface: Black painted

.. Driver: brushless controller
... MOSFET: 12 PCS
... With LCD: YES
... Rated Voltage: DC 48 Volts
... Min. Voltage: DC 40 ± 0.5 V
... Rated power: 1000 Watts
... Casing material: aluminium
... Maximum Current: 26 A ± 1 Amps
... Thermal: aluminum shell and the substrate
... 3 phase 120° brushless motor
... Operating Conditions: -20~45 °C
... Waterproof design
... Size: 171 mm L × 82 mm W × 42 mm H

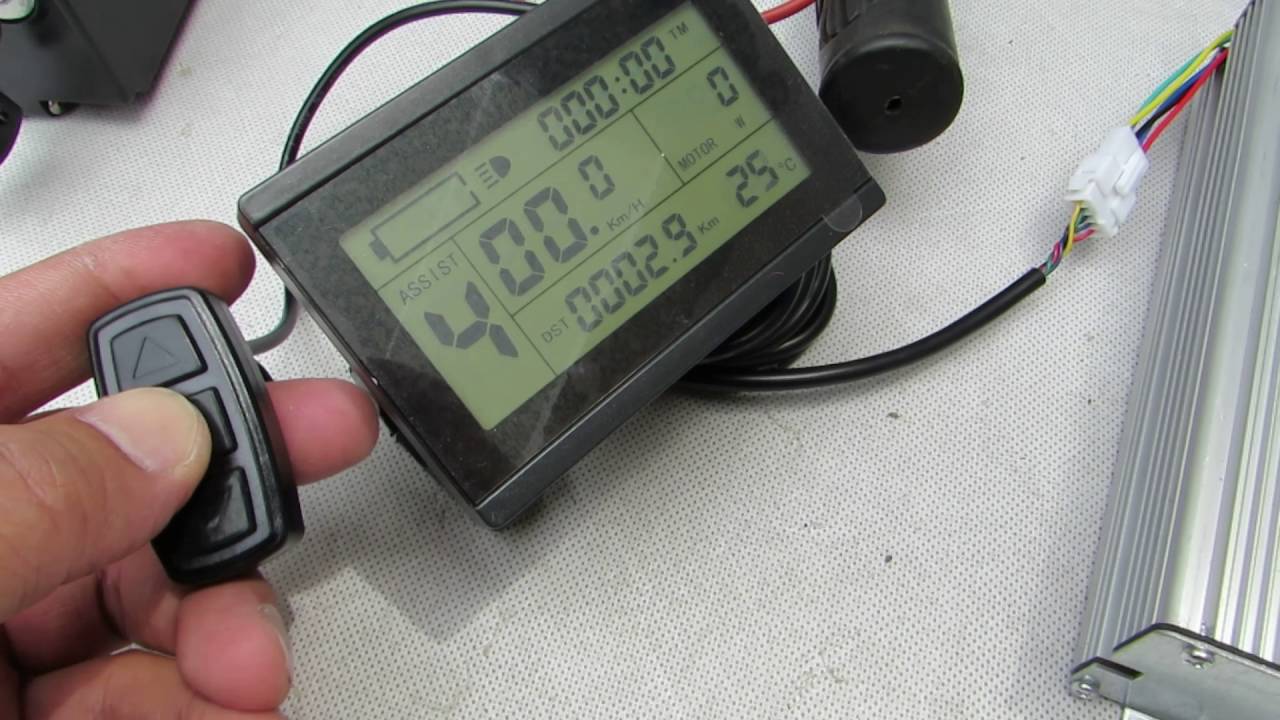

LCD-003 , More Function:
Cruise
Forward & Rackward .Optional.
Regen brake
Kmh & mph .Optional.
Set Max speed . 0 ~ 72 kmh / 45 mph .
Pedal assist . 1 - 5 .
Temperature
Motor power
Timer
Battery gauge
...

Package Content:
1 x 700c 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD . display speed, mileage, battery gauge.. .
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches . control cruise, regen brake, reverse .. . -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11 kg / 24 lbs
Package Size: 66cm L x 23cm W x 66cm H
Package Type: Cardboard Box
