The conversion kit combines the full E-bike technology: direct drive Brushless Geared high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
. Rim: 28 inch double wall Alloy tire: 28 × 1.5" / 1.75" / 1.95"
. Spoke: 12 gauge / 241mm Length × 36 pcs

. Engine: Bldc hub motor
. Voltage: 24V
. Power: 250W
. Efficiency: 80%
. Max speed: 33.2 kmh -- 20.6 mph
. Mechanical brake: Disk or V
. Cable location: shaft end , RIGHT
. Cable length:100cm / 40"
. Install: spacing of 135mm fork
. Noise: 60 db
. Surface: light silver

. Driver: brushless controller
. MOSFET: 6 PCS
. With LCD: YES
. Rated Voltage: DC 24Volts
. Min. Voltage: DC 20 ± 0.5 V
. Rated power: 250 Watts
. Casing material: aluminium
. Maximum Current: 16 A ± 1 Amps
. Thermal: aluminum shell and the substrate
. 3 phase 120° brushless motor
. Operating Conditions: -20~45 °C
. Waterproof design
. Size: 95 mm L × 61 mm W × 35 mm H

LCD , More Function:
Cruise
Reverse
Regen brake
Kmh / mph
Set Max speed 0 ~ 72 kmh / 45 mph
Pedal assist 1 - 5
...

Package Content:
1 x 28 inch 24V 250W rear hub motor wheel
1 x 24V 250W 6-MOSFET motor controller

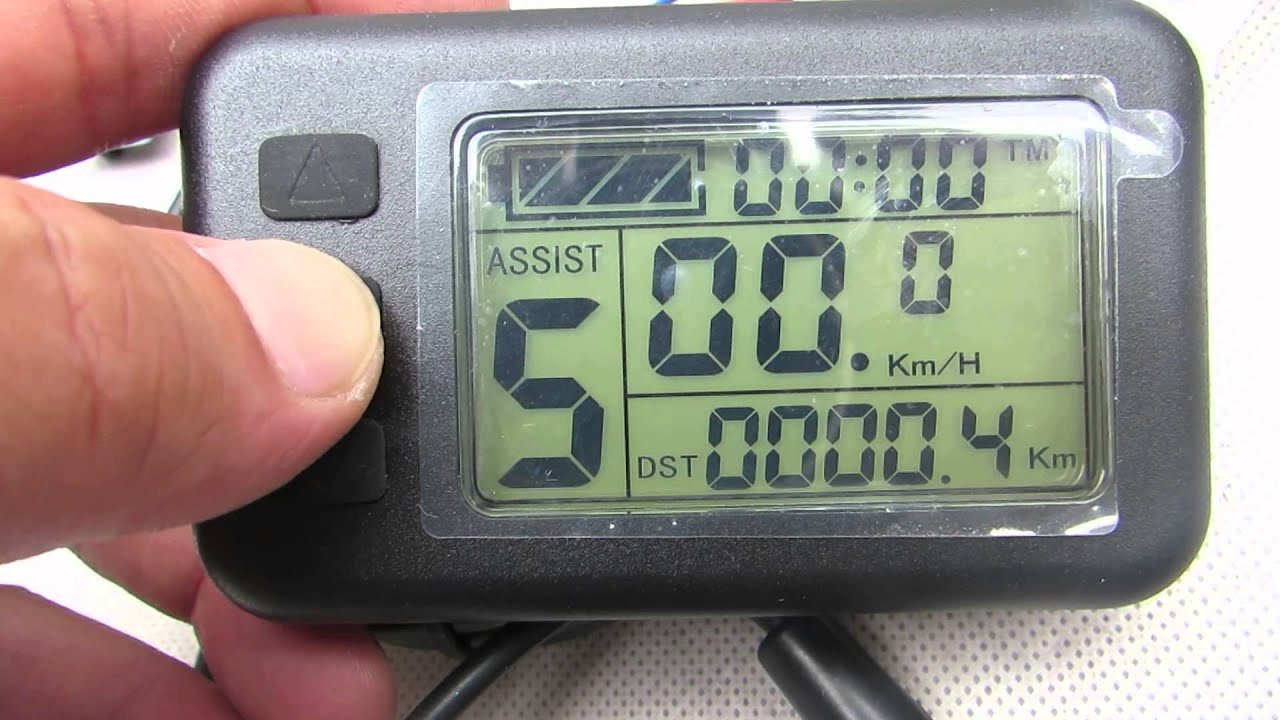

1 x LCD display speed, mileage, battery gauge..
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches control cruise, regen brake, reverse .. -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net weight: 6.12 kg / 13.5 lbs
Package Size: 73cm L x 22cm W x 71cm H / 28.7" L x 8.7" W x 28" H
Package Type: Cardboard Box
