Simple N-Channel MOSFET Tester Circuit
In this project, I made a simple N-Channel MOSFET tester using an LED and a tactile switch. This circuit allows you to quickly check if an N-Channel MOSFET is switching correctly. When you press the button, the Gate is triggered, allowing current to flow and lighting up the LED. It’s an essential, easy-to-build tool for electronics beginners and hobbyists to verify their components before soldering.

Components Used:
N-Channel MOSFET (Tested via G-D-S terminals)

LED (Green indicator)

Resistors: 1kΩ (for LED protection) and 10kΩ (Gate pull-down)

Push Button (Tactile switch)

Battery: 3.7V Li-ion battery

Connecting wires

Simple MOSFET Tester Circuit

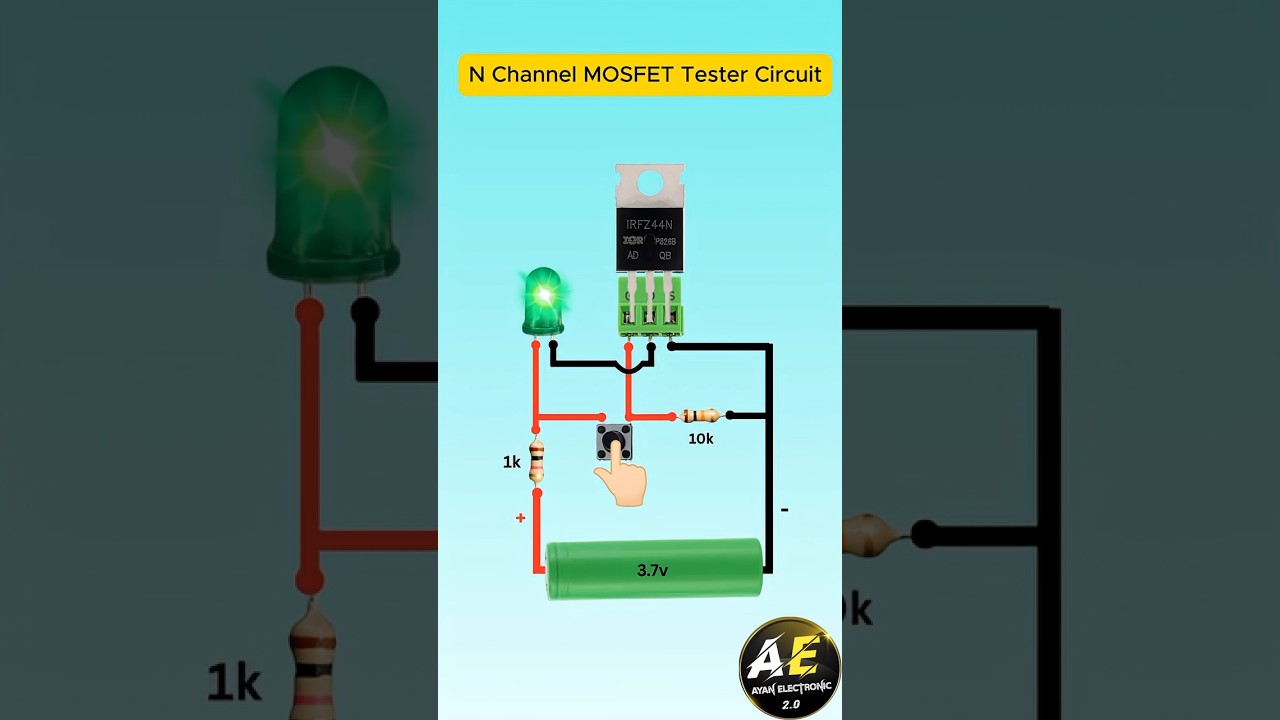

MOSFET Tester Circuit Diagram
