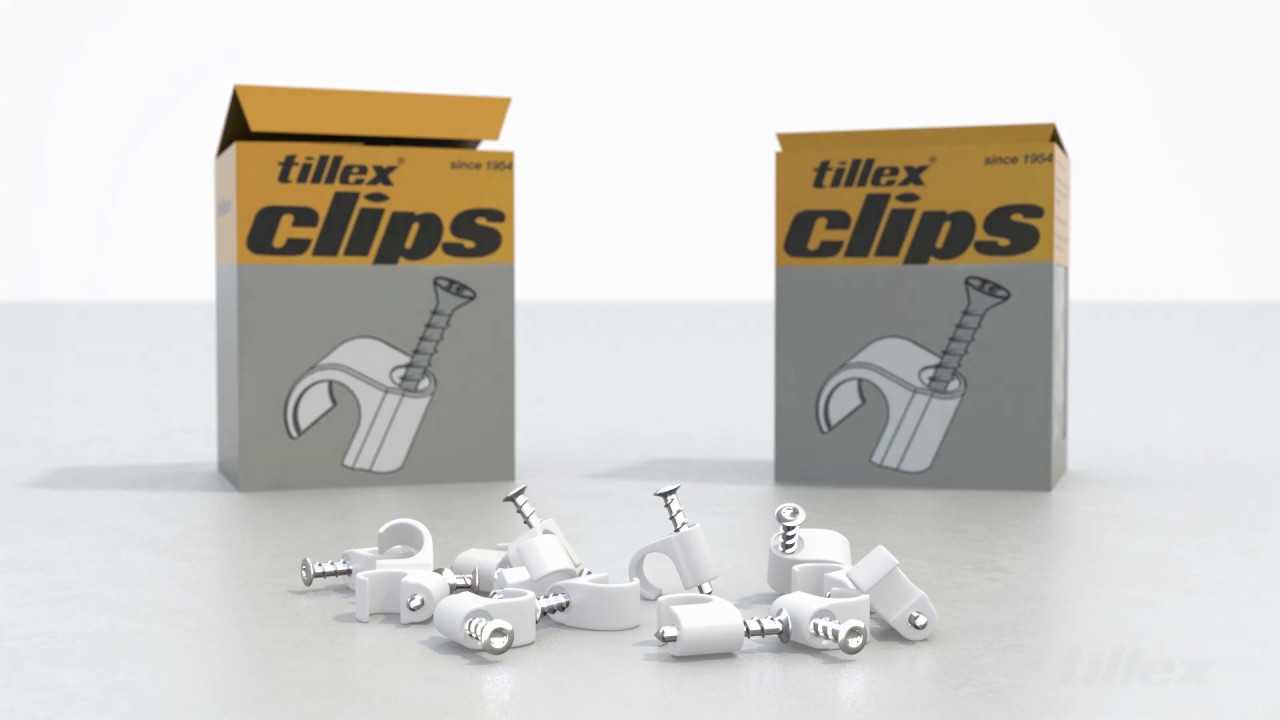

Cable clips with screw for round lead
Find out more: https://www.tucksfasteners.ie/shop/pr...
• Plastmaterial: High impact elastic polypropylene. Halogen free and UV-stabilized.
• Screw: Strong concrete screw, Corrosion Class C4, PH2 / Torx 20. Can be installed both indoors and outdoors.
• For concrete and tile: screw directly into 4 mm hole – no plug required.
• For 13 mm single-layer plasterboard: mount using yellow plug (KP yellow).
• For double-layer plasterboard – no plug required. If screw “goes over”, mount using yellow plug (KP yellow) in the created hole.
• For 13 mm single-layer plasterboard on metal profile – no plug required.
• For wood, fibreboard and plywood: screw directly into material.
• For aerated concrete: mount using yellow plug (KPyellow). For densities above 600, screw directly into concrete.
• Installation torque: max 6,3 Nm in concrete C20/25.
