The product range spans from various sorts of nuts to very sticky dried fruits. With a nominal target weight of 60 g to 250 g, up to 90 bags per minute are weighed and packed. The giveaway here is kept to an absolute minimum of less than 0.1 g.

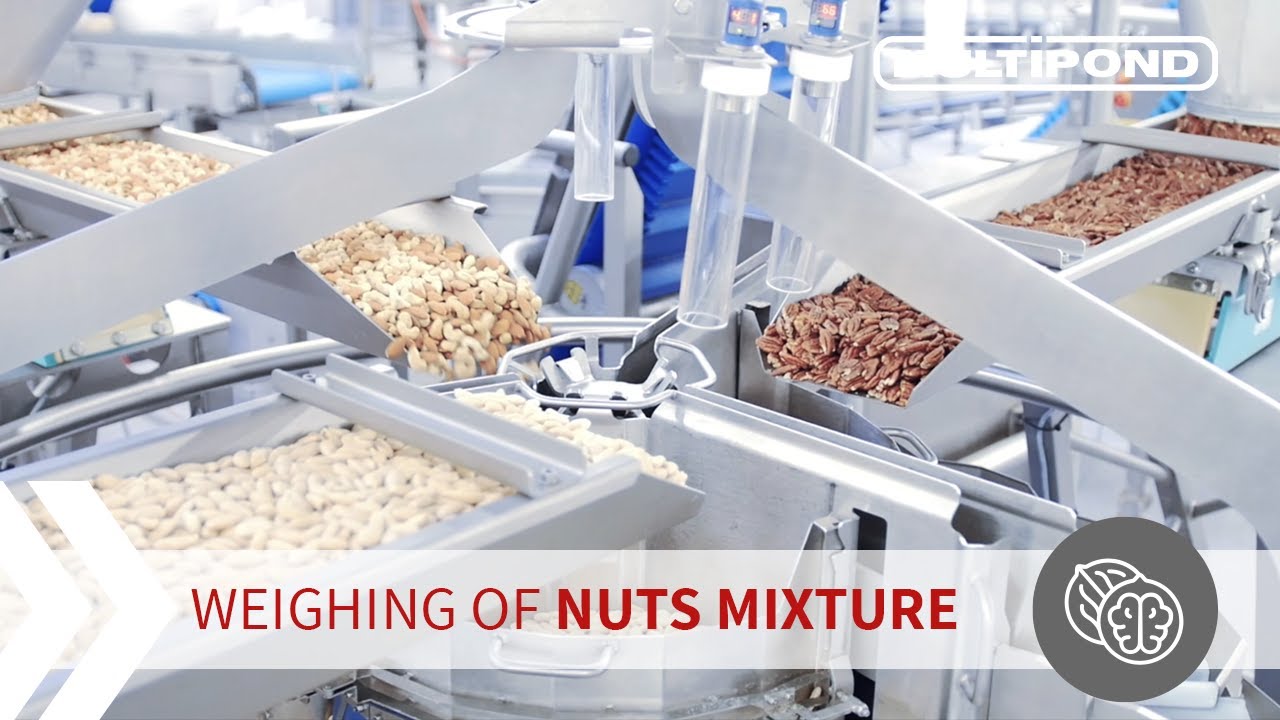

The three different products are fed to the weighing system via MULTIPOND vibration channels. Once they have arrived on top of the weigher, the products are first conveyed to the prefeed hoppers by the radially positioned feed trays, and then to the weigh hoppers underneath. The system operates based on the principle of combining partial portions. After the weighing process, the partial portion is deposited via specially-developed swiveling funnels into the memory hopper underneath. The use of the memory hoppers greatly increases the number of possible combinations and ultimately provides the basis for maximum accuracy and speed. Using the partial portions, a computer determines the best combination to achieve or come closest to the targeted weight. The finished precisely-weighed portions are finally delivered to the timing hopper, which delivers them to the downstream packaging machine. One system runs in combination with a conventional form fill seal machine, while the second one operates in combination with a Doy-Pack bag machine.

All product-carrying parts can be removed quickly and without tools, and have been precisely matched to the requirements of the products to be weighed in order to ensure a perfect product flow. The extremely sticky dried fruits in particular were instrumental in the machine's design.
Depending on the season, the systems run in two or three shift operations and process around 20 tons of product per day. The two MULTIPOND weighers weigh up to 40 different recipes. As Boie Karstens emphasizes: "The short conversion and cleaning times of the two multihead weighers play a key role here, especially since you simply switch on the weighers and they run without a problem."
