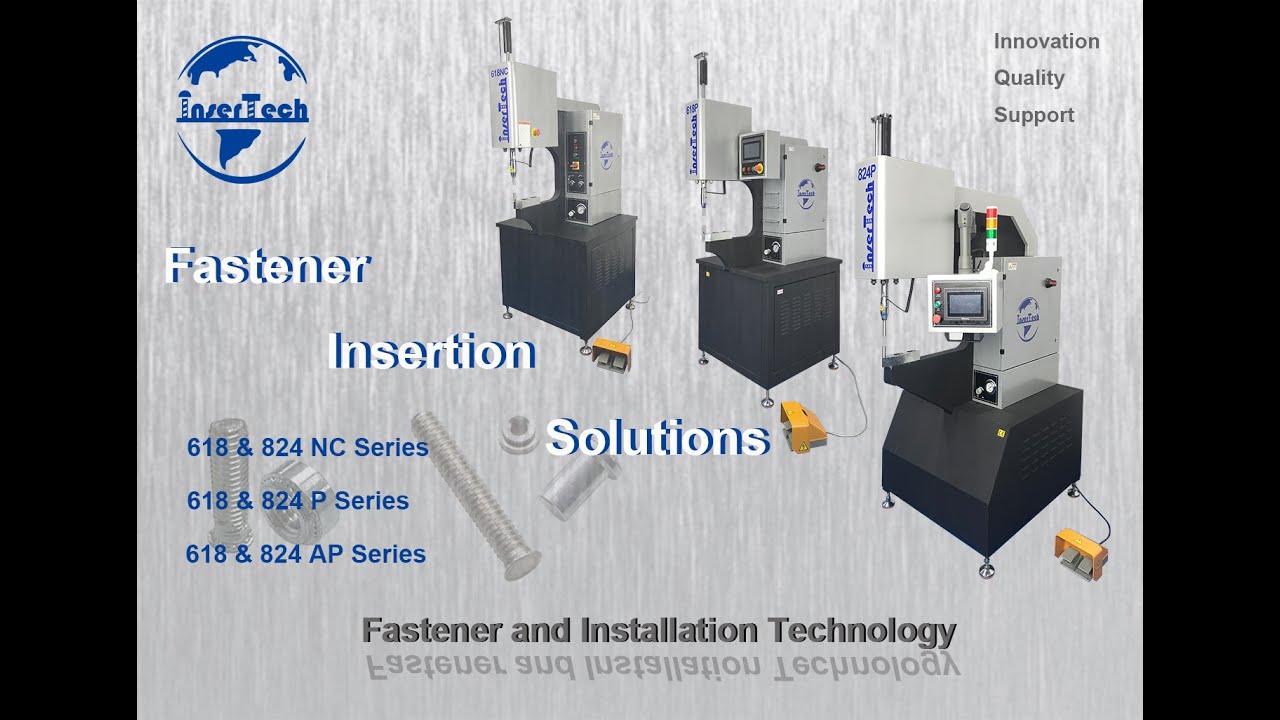

Скачать или смотреть Insertech 618NC fastener insertion machine

618 NC and 824 NC functions and features:
Main features
The latest hydraulic system, more efficient, more stable press force, better oil temperature control. duplex pump system, big pump works when go down stroke, small pump works when exert insertion force and dwell. Keeping oil temperature lower.
All buttons, switches, indicator, buzzer, etc. are on the control panel.
PLC control
Positive stop system for fastener installation in soft workpiece
Adjustable up travel
Adjustable dwell time
Conductive mode and Non-conductive mode
Works on different self-clinching fasteners

Safty system:
CE standard and certificate
Safety system preventing operator from injury
Leakage circuit breaker
Emergency stop
Safety warning stickers on machines
Three levels warnings showed on operation manual

Machine and tools protection:
Hydraulic oil filtration system
Hydraulic oil level indicator
Main motor overload protection
Duplex pump system, Keeping oil temperature lower. Longer life time of hydraulic components.


Optional counter:
Optional 4.3 inch touch screen with counter and IO features
Batch counter to track the number of parts completed
Stroke counter to count the total number of fastener inserted
Down counter displays the total number of pieces of hardware to be inserted in the workpiece and the number of pieces of hardware remaining to be inserted.
Buzzer warning to prevent from any missing insertion per workpiece
IO page show all electric input and output statuts
