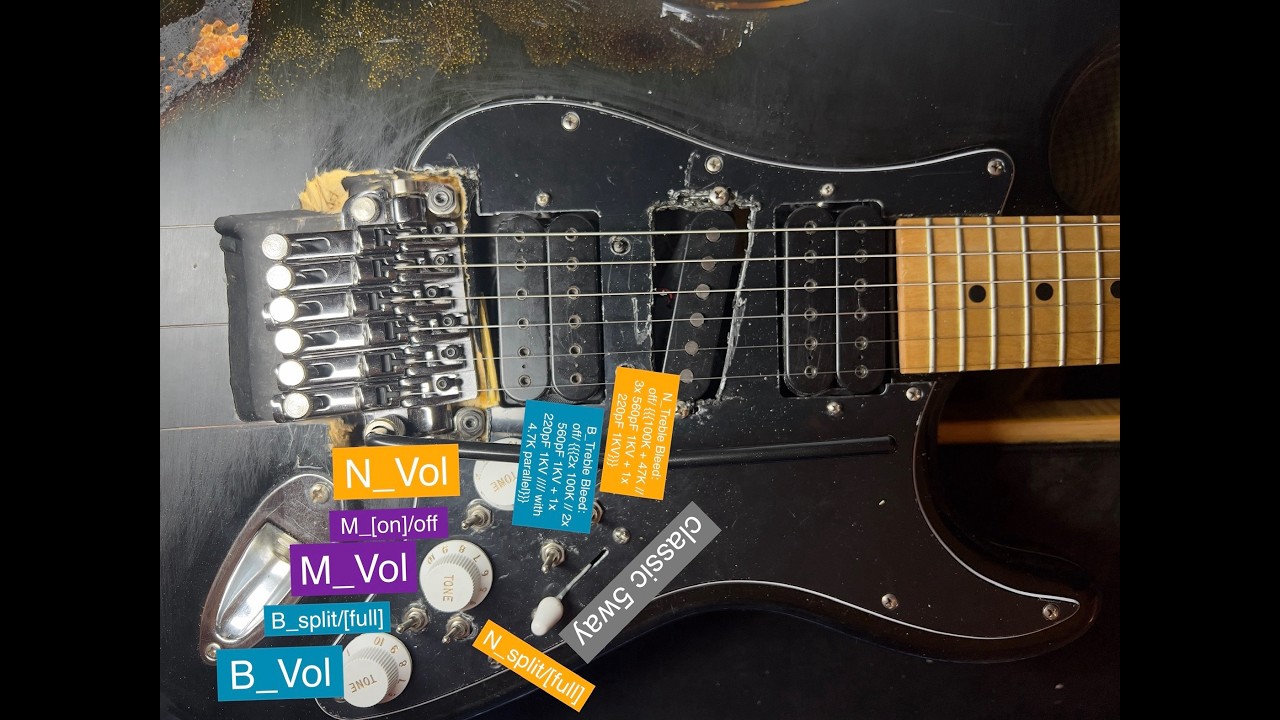

fully modded frankenstrat into stereo heads. Been dreaming about something like this for ages, and to not only complete it, but take this beyond what it needed to be - and have it still work - just feels great. Keep moving forward.

3 Volumes (linear pots)
1 Kill switch toggle (M)
2 Coil Split toggles (N/B)
2 Treble Bleed toggles (N/B)
⁃ Neck: -150k // +1500 pF (Kinman)
⁃---- 100K + 47K // 3x 560pF 1KV + 1x 220pF 1KV
⁃ Bridge: +200K // +1000pF (Kinman)
⁃---- 2x 100K // 2x 560pF 1KV + 1x 220pF 1KV //// with 4.7K parallel

Pickups: Vai’s Evolution set (HSH)
AO: Euna + ParaEQ + Clean
(Bass) “Boost”: @jrockettaudio Airchild (full 9V, not starved)


1:22 - Single Coils
2:28 - Neck Treble Bleed
3:28 - Since Coil + Neck Treble Bleed
4:07 - Bridge Treble Bleed
5:17 - Single Coil + Bridge Treble Bleed
6:09 - Mix (how I’d set it up)
